 Back to results

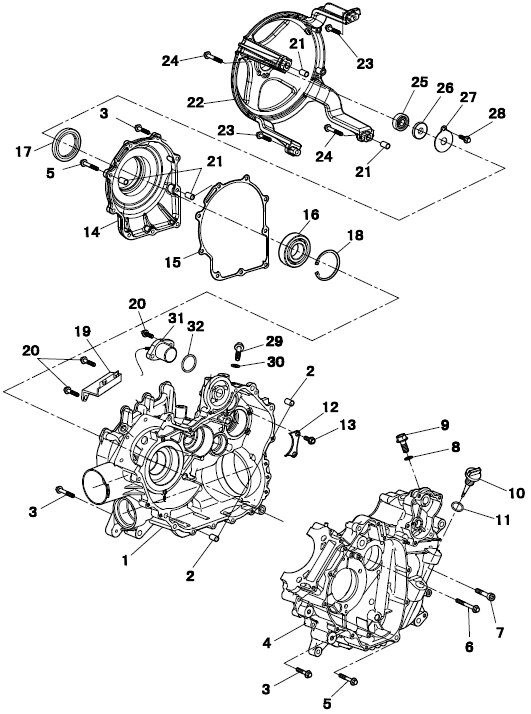

  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
  • Crankcase
In Stock
Price: Contact for price

Crankcase

1000 Available
Parts
No
Old Part No
New Part No
Description
Price
QTY
0
P0040001110A0001
P0040001110A0001
Right Crankcase Assy
0
1
1
PJ00000908020500
PJ00000908020500
Pin,Dowel 9×12×16
0
2
2
BGB5787M630
BGB5787M630
Hexagon Flange Bolts M6×30
0
19
3
P0040001120A0001
P0040001120A0001
Left Crankcase Assy
0
1
4
BGB5787M640
BGB5787M640
Hexagon Flange Bolts M6×40
0
4
5
BGB5787M685
BGB5787M685
Hexagon flange bolts M6×85
0
1
6
BGB70M840
BGB70M840
Hexagon Socket Head Cap Screws M8×40
0
3
7
PJ00000906010700
PJ00000906010700
Aluminum Washer 14×20×1.5
0
1
8
PJ00000904050400
PJ00000904050400
Hexagon Flange Screw Plug M14×1.5×16
0
1
9
P004000156500000
P004000156500000
Oil Dipstck
0
1
10
PJ00000912012300
PJ00000912012300
ORing 18×2.4
0
1
11
P004000110130000
P004000110130000
Press Plate,Main Shaft Bearing
0
1
12
BGB5787M616
BGB5787M616
Hexagon Flange Bolts M6×16
0
2
13
P004000113210000
P004000113210000
Wet Clutch Case Cover
0
1
14
P004000113220000
P004000113220000
Gasket,Wet Clutch Cover
0
1
15
BGB27616010
BGB27616010
Bearing 16010
0
1
16
PJ00000911012200
PJ00000911012200
Oil Seal 35×65×9
0
1
17
BGB89380
BGB89380
Circlip For Hole ?80
0
1
18
P004000171660100
P004000171660100
Bracket,Cvt VentPipe
0
1
19
BGB9074.14M616
BGB9074.14M616
Hexagon Head Bolt And Plain Washer Assemblies M6×16
0
4
20
PJ00000908020300
PJ00000908020300
Pin,Dowel 10×16
0
4
21
P004000113310000
P004000113310000
Shield Bracket,Clutch
0
1
22
BGB5789M632
BGB5789M632
Hexagon Flange Bolts M6×32
0
2
24
BGB2766201 2Z
BGB2766201 2Z
Bearing 62012Z
0
1
25
PJ00000911011200
PJ00000911011200
Oil Seal 12×32×6
0
1
26
P004000110320000
P004000110320000
Press Plate,Bracket Oil Seal
0
1
27
BGB5787M612
BGB5787M612
Hexagon Flange Bolts M6×12
0
1
28
BGB5787M101.2516
BGB5787M101.2516
Hexagon Flange Bolts M10×1.25×16
0
1
29
PJ00000906010400
PJ00000906010400
Aluminum Washer 10×16×1.2
0
1
30
P012000365500000
P012000365500000
Sensor,Gear Shift Indicator
0
1
31
PJ00000912013800
PJ00000912013800
ORing 29.6×2.4
0
1
Overview

Right Crankcase Assy .

Right Crankcase Assy of #:Engine - Crankcase

Pin,Dowel 9×12×16 .

Pin,Dowel 9×12×16 of #:Engine - Crankcase

Hexagon Flange Bolts M6×30 .

Hexagon Flange Bolts M6×30 of #:Engine - Crankcase

Left Crankcase Assy .

Left Crankcase Assy of #:Engine - Crankcase

Hexagon Flange Bolts M6×40 .

Hexagon Flange Bolts M6×40 of #:Engine - Crankcase

Hexagon Flange Bolts M6×85 .

Hexagon flange bolts M6×85 of #:Engine - Crankcase

Hexagon Socket Head Cap Screws M8×40 .

Hexagon Socket Head Cap Screws M8×40 of #:Engine - Cylinder Head Components

Aluminum Washer 14×20×1.5 .

Aluminum Washer 14×20×1.5 of #:Engine - Crankcase

Hexagon Flange Screw Plug M14×1.5×16 .

Hexagon Flange Screw Plug M14×1.5×16 of #:Engine - Crankcase

Oil Dipstck .

Oil Dipstck of #:Engine - Crankcase

ORing 18×2.4 .

ORing 18×2.4 of #:Engine - Crankcase

Press Plate,Main Shaft Bearing .

Press Plate,Main Shaft Bearing of #:Engine - Crankcase

Hexagon Flange Bolts M6×16 .

Hexagon Flange Bolts M6×16 of #:Engine - Crankcase

Wet Clutch Case Cover .

Wet Clutch Case Cover of #:Engine - Crankcase

Gasket,Wet Clutch Cover .

Gasket,Wet Clutch Cover of #:Engine - Crankcase

Bearing 16010 .

Bearing 16010 of #:Engine - Crankcase

Oil Seal 35×65×9 .

Oil Seal 35×65×9 of #:Engine - Crankcase

Circlip For Hole ?80 .

Circlip For Hole ∅80 of #:Engine - Crankcase

Bracket,Cvt VentPipe .

Bracket,Cvt VentPipe of #:Engine - Crankcase

Hexagon Head Bolt And Plain Washer Assemblies M6×16 .

Hexagon Head Bolt And Plain Washer Assemblies M6×16 of #:Engine - Cam, Chain & Tensioner

Pin,Dowel 10×16 .

Pin,Dowel 10×16 of #:Engine - Crankcase

Shield Bracket,Clutch .

Shield Bracket,Clutch of #:Engine - Crankcase

Hexagon Flange Bolts M6×32 .

Hexagon Flange Bolts M6×32 of #:Engine - Crankcase

Bearing 62012Z .

Bearing 62012Z of #:Engine - Crankcase

Oil Seal 12×32×6 .

Oil Seal 12×32×6 of #:Engine - Crankcase

Press Plate,Bracket Oil Seal .

Press Plate,Bracket Oil Seal of #:Engine - Crankcase

Hexagon Flange Bolts M6×12 .

Hexagon Flange Bolts M6×12 of #:Engine - Crankcase

Hexagon Flange Bolts M10×1.25×16 .

Hexagon Flange Bolts M10×1.25×16 of #:Engine - Crankcase

Aluminum Washer 10×16×1.2 .

Aluminum Washer 10×16×1.2 of #:Engine - Crankcase

Sensor,Gear Shift Indicator .

Sensor,Gear Shift Indicator of #:Engine - Crankcase

ORing 29.6×2.4 .

ORing 29.6×2.4 of #:Engine - Crankcase
