Drive Gear

1000 Available

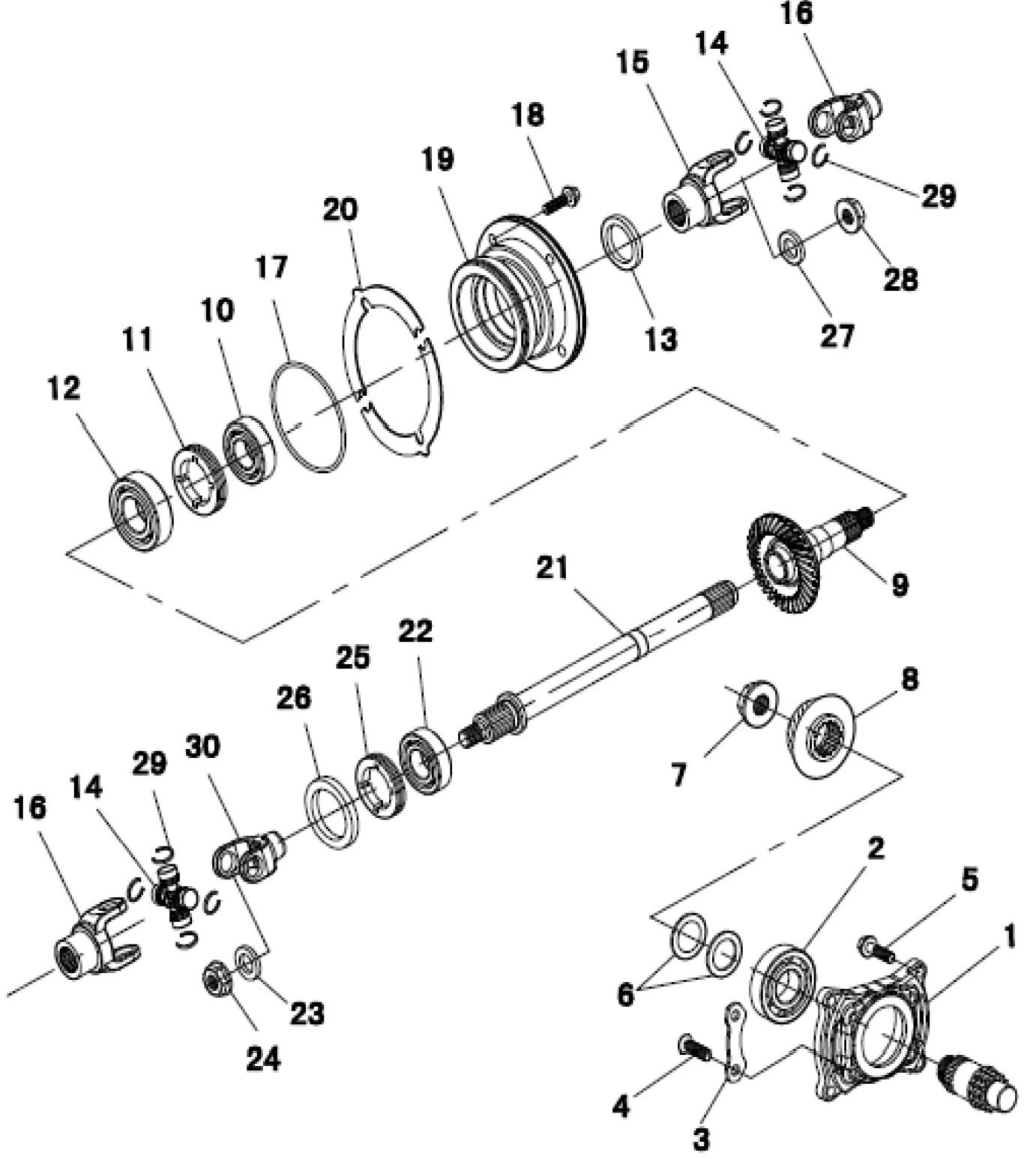

Parts
No
Old Part No
New Part No
Description
Price
QTY
0
P004000112110000
P004000112110000
X Shaft Bearing Block
0
1
1
BGB2766305
BGB2766305
Bearing 6305
0
1
2
P003000931160000
P003000931160000
Press Plate,X Shaft Bearing Block
0
2
3
BGB819.2M825
BGB819.2M825
Cross Recessed Countersunk Head Screw M8×25
0
4
4
BGB5787M830
BGB5787M830
Hexagon Flange Bolts M8×30
0
4
5
PJ00000906002500
PJ00000906002500
Washer 26×38×0.4
0
2
6
PJ00000904021400
PJ00000904021400
Hexagon Flange Nut M22×1
0
1
7
P004000224010000
P004000224010000
Driving Bevel Gear
0
1
8
P004000224020000
P004000224020000
Driven Bevel Gear
0
1
9
BGB27663/22
BGB27663/22
Bearing 63/22
0
1
10
P004000111120000
P004000111120000
External Thread Nut M60×1.5
0
1
11
BGB2766207
BGB2766207
Bearing 6207
0
1
12
PJ00000911011600
PJ00000911011600
Oil Seal 30×46×8
0
1
13
P004D002241B0020
P004D002241B0020
UJoint Assy??20?
0
2
14
P004D00224110020
P004D00224110020
YorkA??20?
0
1
15
P004D00224120020
P004D00224120020
YorkB??20?
0
2
16
PJ00000912017300
PJ00000912017300
ORing 88×2.8
0
1
17
BGB9074.14M830
BGB9074.14M830
Hexagon Head Bolt And Plain Washer Assemblies M8×30
0
4
18
P004000111110000
P004000111110000
Y Shaft Bearing Block
0
1
19
P004000111140100
P004000111140100
Spacer 0.1,Bevel Gear
0
2
20
P004000224040000
P004000224040000
Y Driveshaft
0
1
21
BGB2766205
BGB2766205
Bearing 6205
0
1
22
PJ00000906001400
PJ00000906001400
Washer 14.5×32×5
0
1
23
BGB6187.2M14
BGB6187.2M14
SelfLocking Nut M14×1.5
0
1
24
P003000111130000
P003000111130000
External Thread Nut M55
0
1
26
PJ00000906003200
PJ00000906003200
Washer 16.5×28×4
0
1
27
BGB6187.2M16
BGB6187.2M16
SelfLocking Nut M16×1.5
0
1
28
BGB96020
BGB96020
Snap Ring (?20?
0
8
Overview

X Shaft Bearing Block .

X Shaft Bearing Block of #:Engine - Drive Gear

Bearing 6305 .

Bearing 6305 of #:Engine - Crankshaft & Piston

Press Plate,X Shaft Bearing Block .

Press Plate,X Shaft Bearing Block of #:Engine - Drive Gear

Cross Recessed Countersunk Head Screw M8×25 .

Cross Recessed Countersunk Head Screw M8×25 of #:Engine - Drive Gear

Hexagon Flange Bolts M8×30 .

Hexagon Flange Bolts M8×30 of #:Engine - Drive Gear

Washer 26×38×0.4 .

Washer 26×38×0.4 of #:Engine - Drive Gear

Hexagon Flange Nut M22×1 .

Hexagon Flange Nut M22×1 of #:Engine - Drive Gear

Driving Bevel Gear .

Driving Bevel Gear of #:Engine - Drive Gear

Driven Bevel Gear .

Driven Bevel Gear of #:Engine - Drive Gear

Bearing 63/22 .

Bearing 63/22 of #:Engine - Drive Gear

External Thread Nut M60×1.5 .

External Thread Nut M60×1.5 of #:Engine - Drive Gear

Bearing 6207 .

Bearing 6207 of #:Engine - Drive Gear

Oil Seal 30×46×8 .

Oil Seal 30×46×8 of #:Engine - Drive Gear

UJoint Assy??20? .

UJoint Assy（∅20） of #:Engine - Drive Gear

YorkA??20? .

YorkA（∅20） of #:Engine - Drive Gear

YorkB??20? .

YorkB（∅20） of #:Engine - Drive Gear

ORing 88×2.8 .

ORing 88×2.8 of #:Engine - Drive Gear

Hexagon Head Bolt And Plain Washer Assemblies M8×30 .

Hexagon Head Bolt And Plain Washer Assemblies M8×30 of #:Engine - Drive Gear

Y Shaft Bearing Block .

Y Shaft Bearing Block of #:Engine - Drive Gear

Spacer 0.1,Bevel Gear .

Spacer 0.1,Bevel Gear of #:Engine - Drive Gear

Y Driveshaft .

Y Driveshaft of #:Engine - Drive Gear

Bearing 6205 .

Bearing 6205 of #:Engine - Drive Gear

Washer 14.5×32×5 .

Washer 14.5×32×5 of #:Engine - Drive Gear

SelfLocking Nut M14×1.5 .

SelfLocking Nut M14×1.5 of #:Engine - Drive Gear

External Thread Nut M55 .

External Thread Nut M55 of #:Engine - Drive Gear

Washer 16.5×28×4 .

Washer 16.5×28×4 of #:Engine - Drive Gear

SelfLocking Nut M16×1.5 .

SelfLocking Nut M16×1.5 of #:Engine - Drive Gear

Snap Ring (?20? .

Snap Ring (∅20） of #:Engine - Drive Gear
