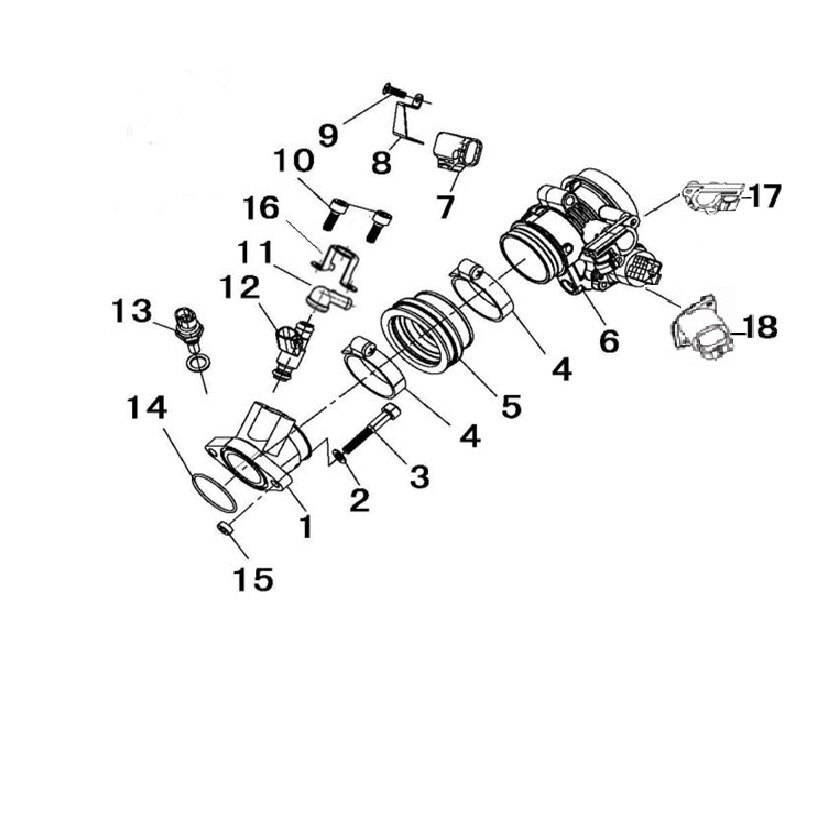

Hisun PArts

Parts
No
Old Part No
New Part No
Description
Price
QTY
0
P004C001241A0000
P004C001241A0000
Intake-Tube Assy
0
1
1
PJ00000906001200
PJ00000906001200
Washer 8×16×1.5
0
2
2
BGB70M850
BGB70M850
Hexagon socket head cap screws M8×50
0
2
3
PJ00000907300800
PJ00000907300800
Hose Clamp Assy ?50??70
0
2
4
P007C00124010000
P007C00124010000
Intake-Tube Joint
0
1
5
P004E00164000100
P004E00164000100
Throttle Body D46-5 No Sesnors
0
1
6
P010000391500000
P010000391500000
Temperature/Pressure Sensor
0
1
7
P010000167010000
P010000167010000
Press Plate,Temp
0
1
8
BGB9074.4M48
BGB9074.4M48
Cross Recessed Pan Head Screw, Single Coil Spring Lock Washer Assemblies M4×8
0
1
9
BGB70M612
BGB70M612
Hexagon socket head cap screw M6×12
0
2
10
P007000164300003
P007000164300003
Fuel Injector 90 degree Swivel Seat
0
1
11
P004C00165300000
P004C00165300000
Fuel Injector?28160355?
0
1
12
P010000391300010
P010000391300010
WaterTemperature Sensor, 3 Wire
0
1
13
PJ00000912015100
PJ00000912015100
O-Ring 44×2
0
1
14
PJ00000929001000
PJ00000929001000
Bushing Intake Houseing
0
2
15
P007000164310000
P007000164310000
Fuel injector clamp
0
1
16
P010000391400000
P010000391400000
Potion Sensor,Throttle
0
1
17
P010000393000000
P010000393000000
IAT MOTOR
0
1
Overview

Intake-Tube Assy .

Intake-Tube Assy of #:Engine - Throttle Body

Washer 8×16×1.5 .

Washer 8×16×1.5 of #:Engine - Throttle Body

Hexagon Socket Head Cap Screws M8×50 .

Hexagon socket head cap screws M8×50 of #:Engine - Throttle Body

Hose Clamp Assy ?50??70 .

Hose Clamp Assy ∅50~∅70 of #:Engine - Throttle Body

Intake-Tube Joint .

Intake-Tube Joint of #:Engine - Throttle Body

Throttle Body D46-5 No Sesnors .

Throttle Body D46-5 No Sesnors of #:Engine - Throttle Body

Temperature/Pressure Sensor .

Temperature/Pressure Sensor of #:Engine - Throttle Body

Press Plate,Temp .

Press Plate,Temp of #:Engine - Throttle Body

Cross Recessed Pan Head Screw, Single Coil Spring Lock Washer Assemblies M4×8 .

Cross Recessed Pan Head Screw, Single Coil Spring Lock Washer Assemblies M4×8 of #:Engine - Throttle Body

Hexagon Socket Head Cap Screw M6×12 .

Hexagon socket head cap screw M6×12 of #:Engine - Throttle Body

Fuel Injector 90 Degree Swivel Seat .

Fuel Injector 90 degree Swivel Seat of #:Engine - Throttle Body

Fuel Injector?28160355? .

Fuel Injector(28160355) of #:Engine - Throttle Body

WaterTemperature Sensor, 3 Wire .

WaterTemperature Sensor, 3 Wire of #:Engine - Throttle Body

O-Ring 44×2 .

O-Ring 44×2 of #:Engine - Throttle Body

Bushing Intake Houseing .

Bushing Intake Houseing of #:Engine - Throttle Body

Fuel Injector Clamp .

Fuel injector clamp of #:Engine - Throttle Body

Potion Sensor,Throttle .

Potion Sensor,Throttle of #:Engine - Throttle Body

IAT MOTOR .

IAT MOTOR of #:Engine - Throttle Body
