ID # 21359656

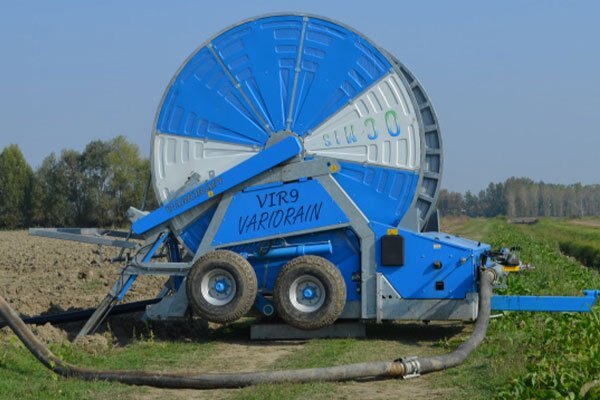

Ocmis - VIR9AM

  • Ocmis VIR9AM
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system.

The competitive advantages are numerous: water saving, user-friendliness and no significant pressure losses.

The irrigating machines of the E-volution use a fully electrical hose-rewinding system.

The technical avant-garde of the rollers, offering greater precision, lower energy consumption, lower maintenance costs, and a wide range of operating speeds.



Specifications
Model
VIR9AM
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Ocmis
standard equipment

  • 4 wheel chassis
  • Hydraulic lifting device of trolley
  • Hydraulic rotation of turntable
  • Telescopic hydraulic feet
  • Hydraulic lifting of drawbar
  • Power take off
  • 4 speed VR gearbox
  • Turbine flanged on the gearbox with double built-in by-pass
  • Flexible connection pipe
  • Galvanized raingun trolley mounted on variable track wheels
  • Pressure gauge (glycerine bath)
  • Raingun
  • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
  • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
  • Set of nozzles LANCER raingun from Ø 30 to Ø 40
  • Winding handle
  • Computer Aqua System
  • Hose retraction by double chain
  • Hydraulic system by rapid couplings to tractor
  • Safety guards
  • 4 wheels 15.0/70-18 148A8 14PR 6F
  • Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
  • Safety guards made of steel, swaged galvanized and painted
  • Galvanized double water inlet
  • Water inlet with Bauer 133
  • Polyethylene hose made from unadulterated raw material
technical features
 Ocmis VIR9AM
A cm. B cm. C cm. D cm. E cm. F cm. G cm. H cm.
500 427 402 375 255 312 345 740
versions and performances
HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
110 800 REFLEX  26/28/30 A Download
110 850 REFLEX 26/28/30 C Download
125 680 EXPLORER 28/30/32 F Download
135 550 EXPLORER 34/36/38 E Download
135 600 EXPLORER 34/36/38 G Download
140 530 EXPLORER 34/36/38 D Download
150 450 EXPLORER  36/38/40 C Download
150 480 EXPLORER  36/38/40 E Download
160 350 LANCER 38/40/42 H Download
160 380 LANCER 38/40/42 F Download
