ID # 21359435

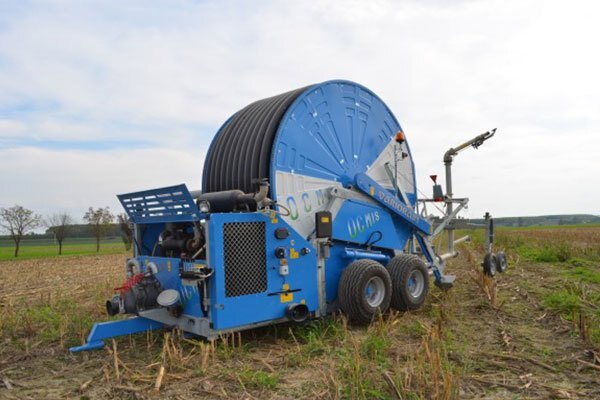

Ocmis - VIR8AM

  • Ocmis VIR8AM
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system.

The competitive advantages are numerous: water saving, user-friendliness and no significant pressure losses.

The irrigating machines of the E-volution use a fully electrical hose-rewinding system.

The technical avant-garde of the rollers, offering greater precision, lower energy consumption, lower maintenance costs, and a wide range of operating speeds.



Specifications
Model
VIR8AM
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Ocmis
standard equipment

  • Hydraulic lifting device of trolley
  • Hydraulic rotation of turntable
  • Hydraulic lifting of drawbar
  • Telescopic hydraulic feet
  • 4 speed VR gearbox
  • Power take off
  • Turbine flanged on the gearbox with built-in by-pass
  • Flexible connection pipe
  • Galvanized raingun trolley mounted on variable track wheels
  • Raingun
  • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
  • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
  • Pressure gauge (glycerine bath)
  • Winding handle
  • Speed equalizer
  • Tachometer
  • Hydraulic system by rapid couplings to tractor
  • Safety guards
  • 2 wheels 400/60-15.5 16PR 6F
  • Safety guards made of steel, swaged galvanized and painted
  • Galvanized double water inlet
  • For hose diam. 100-110-120-125 water inlet Bauer Ø 108
  • For hose diam. 135-140-150 water inlet Bauer Ø 133
  • Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
  • Polyethylene hose made from unadulterated raw material

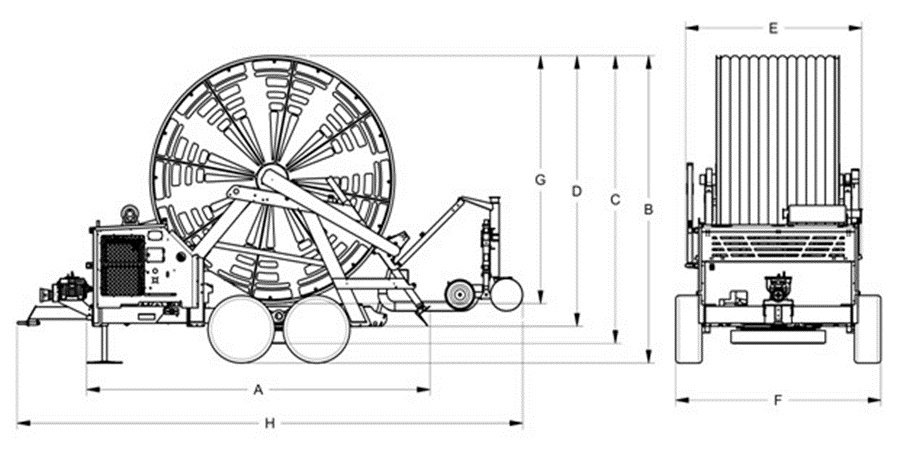

technical features
Ocmis VIR8AM
A cm. B cm. C cm. D cm. E cm. F cm. G cm. H cm.
503 402 370 347 243 305 317,5 743
versions and performances
HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
110 650  REFLEX 22/24/26 I Download
110 670 REFLEX 22/24/26 I Download
110 700 REFLEX  24/26/28 G Download
110 730 REFLEX  24/26/28 F Download
120 600 EXPLORER 28/30/32 H Download
120 640 EXPLORER  26/28/30 F Download
125 550 EXPLORER  32/34/36 I Download
125 620 EXPLORER  28/30/32 F Download
135 500 EXPLORER  32/34/36 D Download
140 400 EXPLORER 34/36/38 F Download
140 450 EXPLORER 34/36/38 H Download
140 470 EXPLORER 34/36/38 I Download
