ID # 21359407

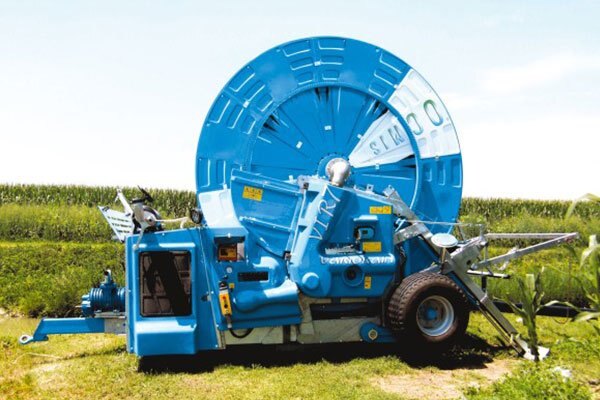

Ocmis - VIR7M

  • Ocmis VIR7M
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Irrigators with motor pump mounted on the machine frame for direct suction from channel, or as booster pump.

The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system.

The competitive advantages are numerous: water saving, user-friendliness, and no significant pressure losses.



Specifications
Model
VIR7M
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Ocmis
standard equipment

  • Hydraulic lifting device of trolley
  • Hydraulic rotation of turntable
  • Hydraulic lifting of drawbar
  • Telescopic hydraulic feet
  • 4 speed VR gearbox
  • Power take off
  • Turbine flanged on the gearbox with built-in by-pass
  • Flexible connection pipe
  • Galvanized raingun trolley mounted on variable track wheels
  • Raingun
  • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
  • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
  • Pressure gauge (glycerine bath)
  • Winding handle
  • Speed equalizer
  • Tachometer
  • Hydraulic system by rapid couplings to tractor
  • Safety guards
  • 2 wheels 12.5/80-15.3 14PR 6F
  • Safety guards made of steel, swaged galvanized and painted
  • Galvanized double water inlet
  • For hose diam. 100-110-120-125 water inlet Bauer Ø 108
  • For hose diam. 135-140-150 water inlet Bauer Ø 133
  • Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
  • Polyethylene hose made from unadulterated raw material
technical features
Ocmis VIR7M
A cm. B cm. C cm. D cm. E cm. F cm. G cm. H cm.
450 395 370 345 245 282 309 -
versions and performances
HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
100 650  REFLEX 26/28/30 A Download
110 600 REFLEX 24/26/28 A Download
120 540 EXPLORER 30/32/34 A Download
125 450 EXPLORER  32/34/36 D Download
125 500 EXPLORER 32/34/36 B Download
135 400 EXPLORER 34/36/38 J Download
140 380 EXPLORER  36/38/40 J Download
150 300 EXPLORER  36/38/40 A Download
