ID # 21354828

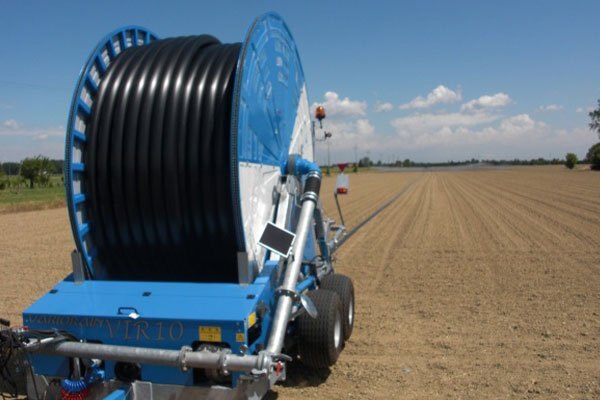

Ocmis - VIR9A

  • Ocmis VIR9A

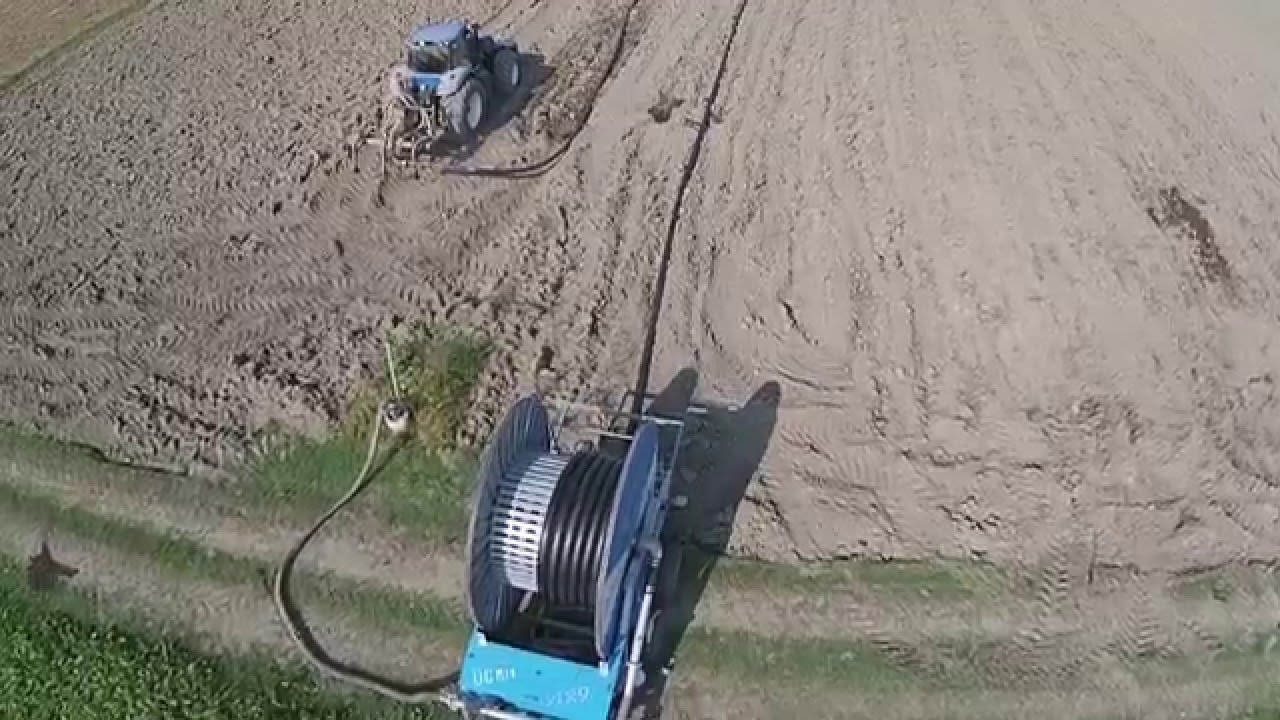

  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Great stability, ideal for handling pipes of large dimensions.

The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system.

The competitive advantages are numerous: water saving, user-friendliness, and no significant pressure losses.



Specifications
Model
VIR9A
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Ocmis
standard equipment

  • 4 wheel chassis
  • Hydraulic lifting device of trolley
  • Hydraulic rotation of turntable
  • Telescopic hydraulic feet
  • Hydraulic lifting of drawbar
  • Power take off
  • 4 speed VR gearbox
  • Turbine flanged on the gearbox with double built-in by-pass
  • Flexible connection pipe
  • Galvanized raingun trolley mounted on variable track wheels
  • Pressure gauge (glycerine bath)
  • Raingun
  • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
  • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
  • Set of nozzles LANCER raingun from Ø 30 to Ø 40
  • Winding handle
  • Computer Aqua System
  • Hose retraction by double chain
  • Hydraulic system by rapid couplings to tractor
  • Safety guards
  • 4 wheels 150/70-18 148A8 14PR 6F
  • Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
  • Safety guards made of steel, swaged galvanized and painted
  • Galvanized double water inlet
  • Water inlet with Bauer 133
  • Polyethylene hose made from unadulterated raw material
technical features
Ocmis VIR9A
A cm. B cm. C cm. D cm. E cm. F cm. G cm. H cm.
490 427 402 378 265 312 345 250
versions and performances
HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
110 800  REFLEX 26/28/30 E Download
110 850 REFLEX 26/28/30 C Download
125 680 REFLEX  28/30/32 J Download
135 600 EXPLORER   34/36/38 I Download
140 530 EXPLORER   34/36/38 B Download
150 450 EXPLORER  36/38/40 C Download
150 480 EXPLORER  36/38/40 A Download
160 350 LANCER  38/40/42 H Download
160 380 LANCER 38/40/42 J Download

catalogues
General catalogue Download
Micro Rain catalogue Download
Hydraulic Soft Hose Drum catalogue Download
Digital Irrigation Download
Tractor Pumps catalogue Download
Computer Rain Control Download
