Ocmis - VIR8/1A

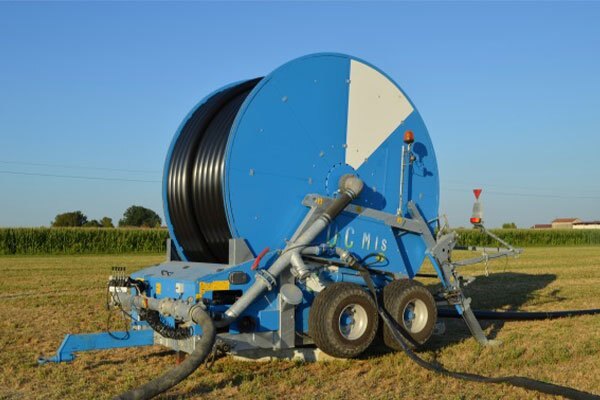

  • Ocmis VIR8/1A
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Great stability, ideal for handling pipes of large dimensions.

The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system.

The competitive advantages are numerous: water saving, user-friendliness, and no significant pressure losses.



Specifications
Model
VIR8/1A
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Ocmis
standard equipment

  • 4 wheel chassis
  • Hydraulic lifting device of trolley
  • Hydraulic rotation of turntable
  • Telescopic hydraulic feet
  • Hydraulic lifting of drawbar
  • 4 speed VR gearbox
  • Power take off
  • Turbine flanged on the gearbox with double built-in by-pass
  • Flexible connection pipe
  • Galvanized raingun trolley mounted on variable track wheels
  • Pressure gauge (glycerine bath)
  • Raingun
  • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
  • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
  • Winding handle
  • Computer Aqua System
  • Hose retraction by double chain
  • Hydraulic system by rapid couplings to tractor
  • Safety guards
  • 4 wheels 11.5/80-15.3 12PR 6F
  • Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
  • Safety guards made of steel, swaged galvanized and painted
  • Galvanized double water inlet
  • For hose diam. 110-120-125 water inlet Bauer Ø 108
  • For hose diam. 135-140-150 water inlet Bauer Ø 133
  • Polyethylene hose made from unadulterated raw material
technical features
Ocmis VIR8/1A
A cm. B cm. C cm. D cm. E cm. F cm. G cm. H cm.
446 418 386 363 250 305 334 236
versions and performances
HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
110 750  REFLEX 24/26/28 E Download
110 810 REFLEX 24/26/28 C Download
110 850 REFLEX  24/26/28 B Download
120 650 EXPLORER   26/28/30 I Download
120 670 EXPLORER   26/28/30 I Download
125 650 EXPLORER   28/30/32 I Download
135 520 EXPLORER  32/34/36 A Download
135 600 EXPLORER  32/34/36 J Download
140 500 EXPLORER  34/36/38 B Download
150 400 EXPLORER 36/38/40 J Download

catalogues
General catalogue Download
Micro Rain catalogue Download
Hydraulic Soft Hose Drum catalogue Download
Digital Irrigation Download
Tractor Pumps catalogue Download
Computer Rain Control Download



Documents
