ID # 21354803

Ocmis - VIR8A

  • Ocmis VIR8A
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Great stability, ideal for handling pipes of large dimensions.

The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system.

The competitive advantages are numerous: water saving, user-friendliness, and no significant pressure losses.



Specifications
Model
VIR8A
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Ocmis
standard equipment

  • 4 wheel chassis
  • Hydraulic lifting device of trolley
  • Hydraulic rotation of turntable
  • Telescopic hydraulic feet
  • Hydraulic lifting of drawbar
  • 4 speed VR gearbox
  • Power take off
  • Turbine flanged on the gearbox with double built-in by-pass
  • Flexible connection pipe
  • Galvanized raingun trolley mounted on variable track wheels
  • Pressure gauge (glycerine bath)
  • Raingun
  • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
  • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
  • Winding handle
  • Computer Aqua System
  • Hose retraction by double chain
  • Hydraulic system by rapid couplings to tractor
  • Safety guards
  • 4 wheels 11.5/80-15.3 12PR 6F
  • Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
  • Safety guards made of steel, swaged galvanized and painted
  • Galvanized double water inlet
  • For hose diam. 110-120-125 water inlet Bauer Ø 108
  • For hose diam. 135-140-150 water inlet Bauer Ø 133
  • Polyethylene hose made from unadulterated raw material

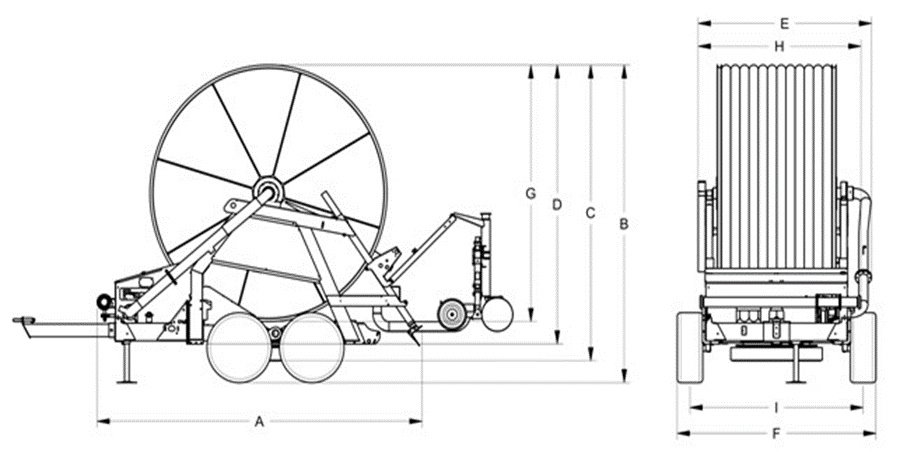

technical features
Ocmis VIR8A
A cm. B cm. C cm. D cm. E cm. F cm. G cm. H cm.
446 402 370 347 250 305 317,5 236
versions and performances
HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
110 650  REFLEX 22/24/26 G Download
110 670 REFLEX 22/24/26 G Download
110 700 REFLEX  24/26/28 I Download
110 730 REFLEX  24/26/28 J Download
120 600 EXPLORER 28/30/32 H Download
120 640 EXPLORER  26/28/30 J Download
125 550 EXPLORER  32/34/36 G Download
125 620 EXPLORER  28/30/32 J Download
135 500 EXPLORER  32/34/36 B Download
140 400 EXPLORER 34/36/38 E Download
140 450 EXPLORER 34/36/38 C Download
140 470 EXPLORER 34/36/38 B Download
