ID # 21354678

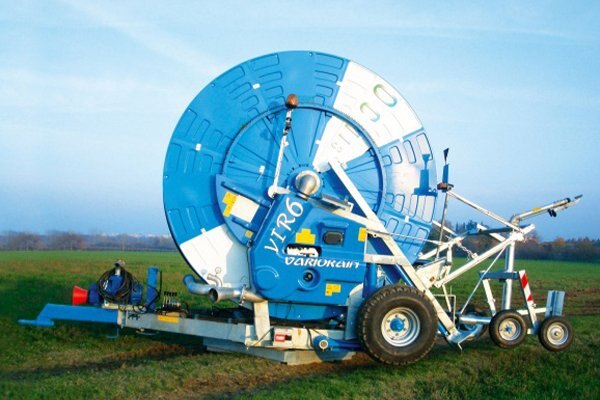

Ocmis - VIR6

  • Ocmis VIR6
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Great stability, ideal for handling pipes of large dimensions.

The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system.

The competitive advantages are numerous: water saving, user-friendliness, and no significant pressure losses.



Specifications
Model
VIR6
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Ocmis
standard equipment

  • Hydraulic lifting device of trolley
  • Hydraulic rotation of turntable
  • Hydraulic lifting of drawbar
  • Telescopic hydraulic feet
  • 4 speed VR gearbox
  • Power take off
  • Turbine flanged on the gearbox with built-in by-pass
  • Flexible connection pipe
  • Galvanized raingun trolley mounted on variable track wheels
  • Raingun
  • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
  • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
  • Pressure gauge (glycerine bath)
  • Winding handle
  • Speed equalizer
  • Tachometer
  • Hydraulic system by rapid couplings to tractor
  • Safety guards
  • 2 wheels 11.5/80-15.3 12PR 6F
  • Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
  • Safety guards made of steel, swaged galvanized and painted
  • Galvanized double water inlet
  • For hose diam. 100-110-120-125 water inlet Bauer Ø 108
  • For hose diam. 135-140 water inlet Bauer Ø 133
  • Polyethylene hose made from unadulterated raw material

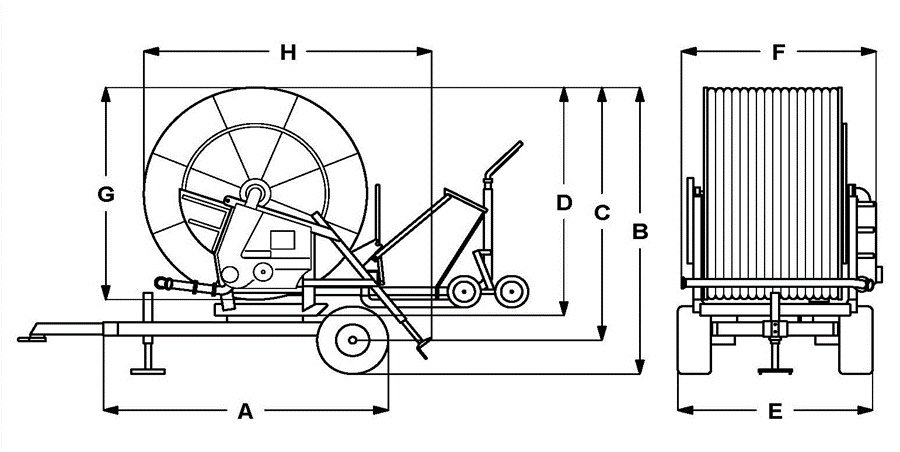

technical features
Ocmis VIR6
A cm. B cm. C cm. D cm. E cm. F cm. G cm.
390 395 362 341 248 280 309
versions and performances
HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
100 600 REFLEX 26/28/30 C Download
110 500 REFLEX 28/30/32 E Download
110 550 REFLEX  28/30/32 C Download
110 570 REFLEX  28/30/32 B Download
120 460 EXPLORER 32/34/36 J Download
125 400 EXPLORER  32/34/36 H Download
125 440 EXPLORER  32/34/36 J Download
135 380 EXPLORER  34/36/38 I Download
140 350 EXPLORER   34/36/38 H Download

catalogues
General catalogue Download
Micro Rain catalogue Download
Hydraulic Soft Hose Drum catalogue Download
Digital Irrigation Download
Tractor Pumps catalogue Download
Computer Rain Control Download
