ID # 21354662

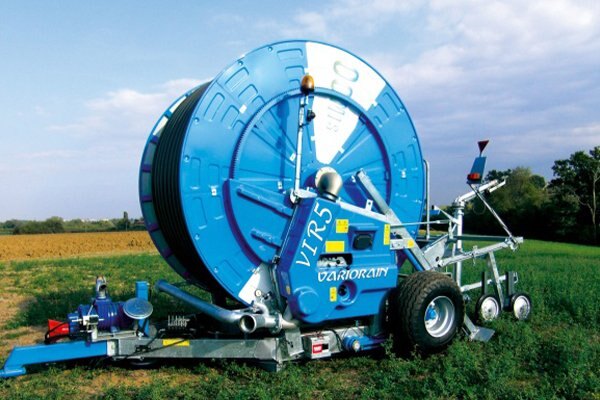

Ocmis - VIR5

  • Ocmis VIR5
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Great stability, ideal for handling pipes of large dimensions.

The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system.

The competitive advantages are numerous: water saving, user-friendliness, and no significant pressure losses.



Specifications
Model
VIR5
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Ocmis
standard equipment

  • Hydraulic lifting device of trolley
  • Hydraulic rotation of turntable
  • Hydraulic lifting of drawbar
  • Telescopic hydraulic feet
  • 4 speed VR gearbox
  • Power take off
  • Turbine flanged on the gearbox with built-in by-pass
  • Flexible connection pipe
  • Galvanized raingun trolley mounted on variable track wheels
  • Raingun
  • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
  • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
  • Pressure gauge (glycerine bath)
  • Winding handle
  • Speed equalizer
  • Tachometer
  • Hydraulic system by rapid couplings to tractor
  • Safety guards
  • 2 wheels 115/80-153 12PR 6F
  • Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
  • Safety guards made of steel, swaged galvanized and painted
  • Galvanized double water inlet
  • For hose diam 100-110-120-125 water inlet Bauer Ø 108
  • For hose diam 135-140 water inlet Bauer Ø 133
  • Polyethylene hose made from unadulterated raw material
technical features
 Ocmis VIR5
A cm. B cm. C cm. D cm. E cm. F cm. G cm.
370 366 332 315 248 280 280
versions and performances
HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
100 500 REFLEX 26/28/30 G Download
100 380 REFLEX 26/28/30 I Download
110 400 REFLEX  28/30/32 G Download
110 470 REFLEX  28/30/32 I Download
110 500 REFLEX 28/30/32 J Download
120 400 EXPLORER  32/34/36 I Download
125 320 EXPLORER  32/34/36 F Download
125 350 EXPLORER  32/34/36 H Download
125 380 EXPLORER   32/34/36 I Download
135 300 EXPLORER 34/36/38 A Download
140 290 EXPLORER 34/36/38 A Download

catalogues
General catalogue Download
Micro Rain catalogue Download
Hydraulic Soft Hose Drum catalogue Download
Digital Irrigation Download
Tractor Pumps catalogue Download
Computer Rain Control Download
