ID # 21354603

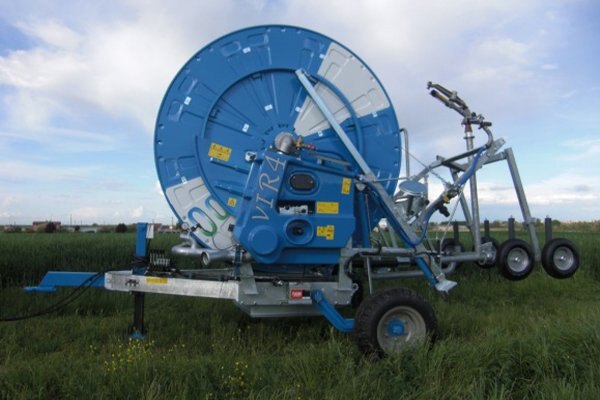

Ocmis - VIR4

  • Ocmis VIR4
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Great stability, ideal for handling pipes of large dimensions.

The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system.

The competitive advantages are numerous: water saving, user-friendliness, and no significant pressure losses.



Specifications
Model
VIR4
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Ocmis
standard equipment

  • Hydraulic lifting device of trolley
  • Hydraulic rotation of turntable
  • Hydraulic lifting of drawbar
  • Telescopic hydraulic feet
  • 3 speed VR gearbox
  • Power take off
  • Turbine flanged on the gearbox with built-in by-pass
  • Flexible connection pipe
  • Galvanized raingun trolley mounted on variable track wheels
  • Raingun
  • Set of nozzles SYNKRO raingun from Ø 16 to Ø 22
  • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
  • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
  • Pressure gauge (glycerine bath)
  • Winding handle
  • Speed equalizer
  • Tachometer
  • Hydraulic system by rapid couplings to tractor
  • Safety guards
  • 2 wheels 100/75-153 10PR 6F
  • Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
  • Safety guards made of steel, swaged galvanized and painted
  • Galvanized double water inlet
  • For hose diam 82-90-100 water inlet Bauer Ø 89
  • For hose Ø 110-120 inlet water Bauer Ø 108
  • Polyethylene hose made from unadulterated raw material
technical features
Ocmis VIR4
A cm. B cm. C cm. D cm. E cm. F cm. G cm.
348 332 293 281 224 243 246
versions and performances
HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
82 500 ROYAL 16/18/20 J Download
90 380 REFLEX 24/26/28 B Download
90 400 REFLEX  24/26/28 C Download
90 470 REFLEX  24/26/28 D Download
90 500 REFLEX 24/26/28 C Download
100 340 EXPLORER  30/32/34 G Download
100 360 EXPLORER  32/34/36 H Download
100 390 EXPLORER  32/34/36 J Download
110 300 EXPLORER   34/36/38 F Download
110 330 EXPLORER 34/36/38 H Download
110 350 EXPLORER 36/38/40 I Download
120 270 EXPLORER 36/38/40 A Download

catalogues
General catalogue Download
Micro Rain catalogue Download
Hydraulic Soft Hose Drum catalogue Download
Digital Irrigation Download
Tractor Pumps catalogue Download
Computer Rain Control Download
