ID # 21335639

Ocmis - IR2/1A

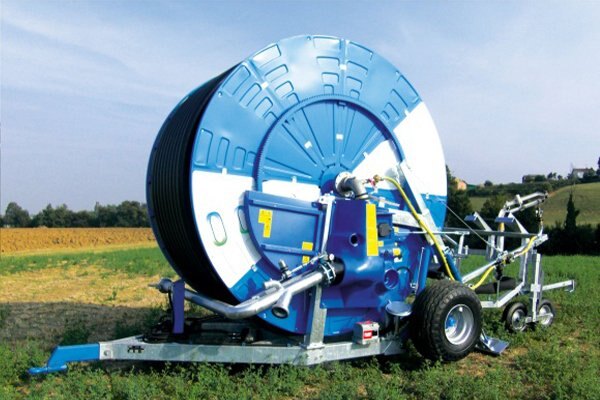

  • Ocmis IR2/1A
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Great stability, ideal for handling hoses of large dimensions.

Robust, high-performing irrigators with low running and maintenance costs.

The Turbo Speed system reduces turbine load loss and, at the same time, gives access to a range of machine speeds even with very low flows and inlet pressures. Ocmis innovation is there for all to see.



Specifications
Model
IR2/1A
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Ocmis
standard equipment

  • Hydraulic lifting device of trolley
  • Hydraulic rotation of turntable
  • Hydraulic lifting of drawbar
  • Telescopic hydraulic feet
  • 4 Speed gearbox
  • Power take off
  • Turbine flanged on the gearbox with built-in by-pass
  • Flexible connection pipe
  • Galvanized raingun trolley mounted on variable track wheels
  • Raingun
  • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
  • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
  • Pressure gauge (glycerine bath)
  • Winding handle
  • Speed equalizer
  • Tachometer
  • Hydraulic system by rapid couplings to tractor
  • Safety guards
  • 2 wheels 11.5/80-15.3 12PR 6F
  • Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
  • Safety guards made of steel, swaged galvanized and painted
  • Galvanized double water inlet
  • Polyethylene hose made from unadulterated raw material

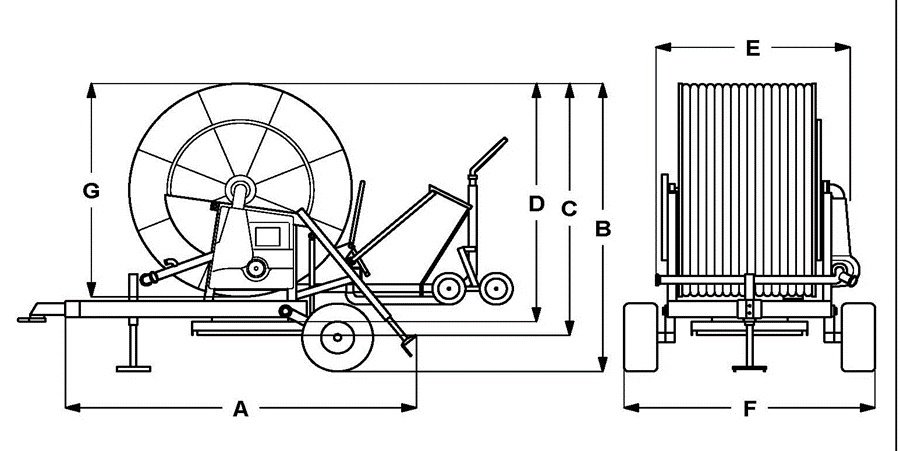

technical features
Ocmis IR2/1A
A cm. B cm. C cm. D cm. E cm. F cm. G cm.
400 356 330 303 240 285 280
versions and performances
HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
110 500 REFLEX 26/28/30 G Download
110 400 REFLEX 26/28/30 H Download
110 450 REFLEX 26/28/30 J Download
120 500 EXPLORER 30/32/34 I Download
125 300 EXPLORER 2/34/36 F Download
125 330 EXPLORER  32/34/36 H Download
125 350 EXPLORER  32/34/36 I Download
