ID # 21335623

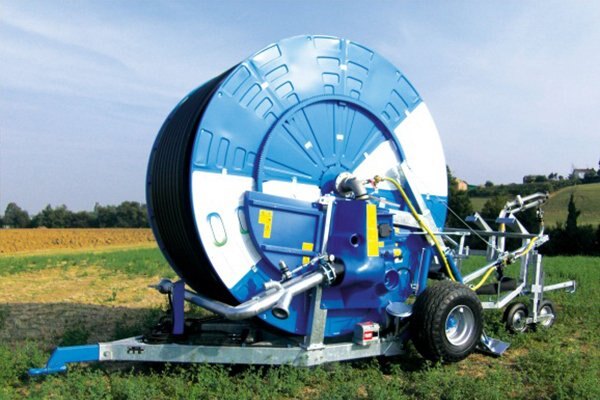

Ocmis - IR2A

  • Ocmis IR2A
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Great stability, ideal for handling hoses of large dimensions.

Robust, high-performing irrigators with low running and maintenance costs.

The Turbo Speed system reduces turbine load loss and, at the same time, gives access to a range of machine speeds even with very low flows and inlet pressures. Ocmis innovation is there for all to see.



Specifications
Model
IR2A
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Ocmis
standard equipment

  • Hydraulic lifting device of trolley
  • Hydraulic rotation of turntable
  • Hydraulic lifting of drawbar
  • Telescopic hydraulic feet
  • 4 Speed gearbox
  • Power take off
  • Turbine flanged on the gearbox with built-in by-pass
  • Flexible connection pipe
  • Galvanized raingun trolley mounted on variable track wheels
  • Raingun
  • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
  • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
  • Pressure gauge (glycerine bath)
  • Winding handle
  • Speed equalizer
  • Tachometer
  • Hydraulic system by rapid couplings to tractor
  • Safety guards
  • 2 wheels 10.0/75-15.3 10PR 6F
  • Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
  • Safety guards made of steel, swaged galvanized and painted
  • Galvanized double water inlet
  • Polyethylene hose made from unadulteratet raw material
technical features
 Ocmis IR2A

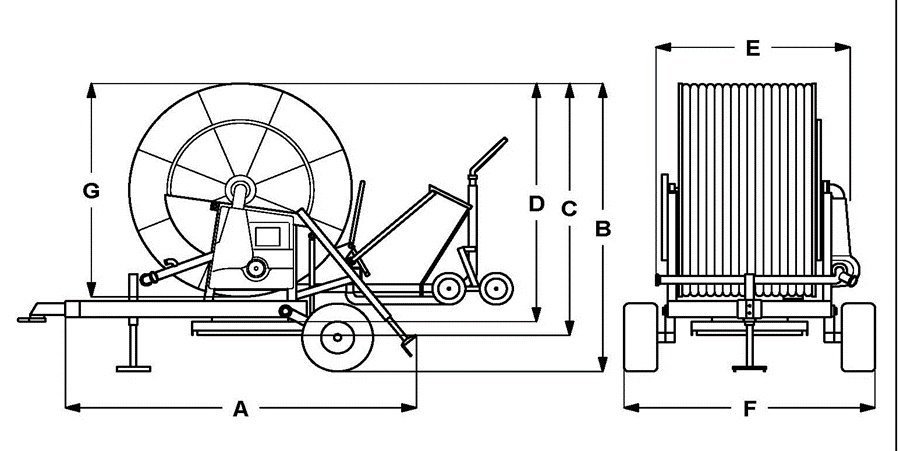

A cm. B cm. C cm. D cm. E cm. F cm. G cm.
338 338 310 290 220 255 268
versions and performances
HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
90 500 REFLEX  24/26/28 C Download
100 400 REFLEX 24/26/28 J Download
100 450 REFLEX 24/26/28 A Download
100 500 REFLEX 24/26/28 H Download
110 300 REFLEX  28/30/32 F Download
110 330 REFLEX  28/30/32 G Download
110 350 REFLEX  26/28/30 H Download
125 250 EXPLORER 32/34/36 A Download
