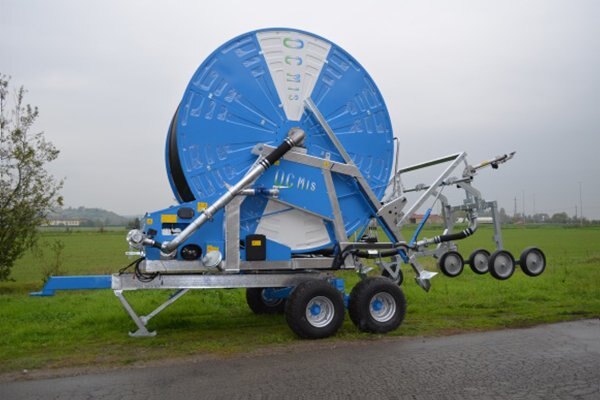

Ocmis - VR8/1A

  • Ocmis VR8/1A
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system.

The best-sellers of our range.

Appreciated and used by agriculturalists the world over for their versatility and user-friendliness.

The competitive advantages are numerous: water saving, user-friendliness, and no significant pressure losses.



Specifications
Model
VR8/1A
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Ocmis
standard equipment

  • Telescopic hydraulic feet
  • Hydraulic lifting of drawbar
  • Turbine flanged on the gearbox with double built-in by-pass
  • Flexible connection pipe
  • Offset galvanized trolley mounted on 5 large solid wheels
  • 4 wheel chassis
  • Hydraulic lifting device of trolley
  • Independent hydraulic lift with swivel to hook the gun trolley
  • Hydraulic rotation of turntable
  • 4 speed VR gearbox
  • Power take off
  • Raingun
  • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
  • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
  • Pressure gauge (glycerine bath)
  • Winding handle
  • Computer Aqua System
  • Hose retraction by double chain
  • Hydraulic system by rapid couplings to tractor
  • Safety guards
  • 4 wheels mod. 11.5/80-15.3 12PR 6F
  • Hot galvanized chassis and turret
  • Reel coated by epoxy resin and painted with polyurethane paint
  • Safety guards made of steel, swaged galvanized and painted
  • Galvanized double water inlet
  • For hose diam. 110-120-125 water inlet Bauer Ø 108
  • For hose diam. 135-140 water inlet Bauer Ø 133
  • Polyethylene hose made from unadulterated raw material
technical features
Ocmis VR8/1A
A cm. B cm. C cm. D cm. E cm. F cm. G cm. H cm. I cm. L cm. M cm. N cm.
66 455 412 389 413 425 334 445 220 - 250 249 360 250 - 280
versions and performances
HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
110 750 REFLEX  24/26/28 E Download
110 810 REFLEX 24/26/28 C Download
110 850 REFLEX 24/26/28 B Download
120 650 EXPLORER 26/28/30 I Download
120 670 EXPLORER 26/28/30 I Download
125 650 EXPLORER  28/30/32 I Download
135 520 EXPLORER  32/34/36 A Download
135 600 EXPLORER 32/34/36 J Download
140 500 EXPLORER 34/36/38 B Download
