ID # 21335496

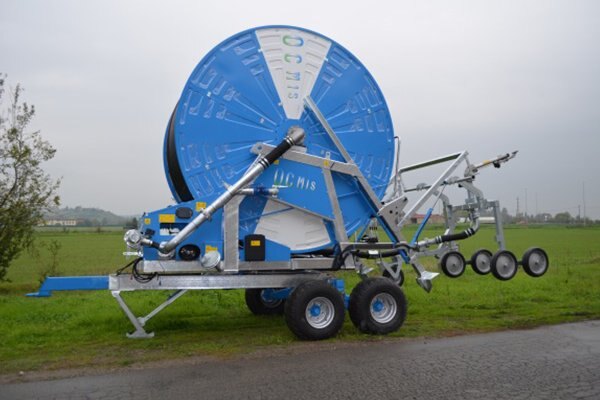

Ocmis - VR8A

  • Ocmis VR8A
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system.

The best-sellers of our range.

Appreciated and used by agriculturalists the world over for their versatility and user-friendliness.

The competitive advantages are numerous: water saving, user-friendliness, and no significant pressure losses.



Specifications
Model
VR8A
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Ocmis
standard equipment

  • Telescopic hydraulic feet
  • Hydraulic lifting of drawbar
  • Turbine flanged on the gearbox with double built-in by-pass
  • Flexible connection pipe
  • Offset galvanized trolley mounted on 5 large solid wheels
  • 4 wheel chassis
  • Hydraulic lifting device of trolley
  • Independent hydraulic lift with swivel to hook the gun trolley
  • Hydraulic rotation of turntable
  • 4 speed VR gearbox
  • Power take off
  • Raingun
  • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
  • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
  • Pressure gauge (glycerine bath)
  • Winding handle
  • Computer Aqua System
  • Hose retraction by double chain
  • Hydraulic system by rapid couplings to tractor
  • Safety guards
  • 4 wheels mod. 11.5/80-15.3 12PR 6F
  • Hot galvanized chassis and turret
  • Reel coated by epoxy resin and painted with polyurethane paint
  • Safety guards made of steel, swaged galvanized and painted
  • Galvanized double water inlet
  • For hose diam. 110-120-125 water inlet Bauer Ø 108
  • For hose diam. 135-140 water inlet Bauer Ø 133
  • Polyethylene hose made from unadulterated raw material

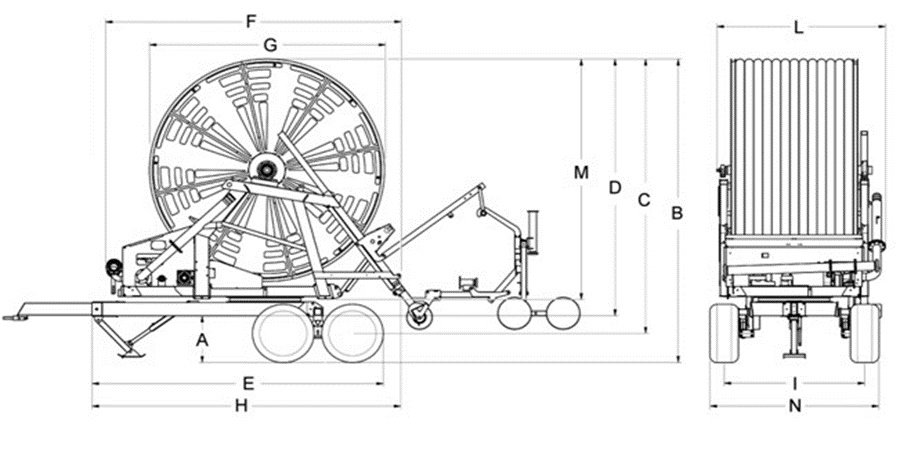

technical features
Ocmis VR8A
A cm. B cm. C cm. D cm. E cm. F cm. G cm. H cm. I cm. L cm. M cm. N cm.
66 439 396 373 413 425 318 445 220 - 250 249 344 250 - 280
versions and performances
HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
110 650 REFLEX  24/26/28 G Download
110 670 REFLEX 24/26/28 G Download
110 700 REFLEX 24/26/28 I Download
110 730 REFLEX 24/26/28 J Download
120 600 EXPLORER 28/30/32 H Download
120 640 EXPLORER  26/28/30 J Download
125 550 EXPLORER  32/34/36 G Download
125 600 EXPLORER 28/30/32 I Download
125 620 EXPLORER 28/30/32 J Download
135 500 EXPLORER 32/34/36 B Download
140 400 EXPLORER 34/36/38 E Download
140 450 EXPLORER 34/36/38 C Download
140 470 EXPLORER 34/36/38 B Download

catalogues
General catalogue Download
Micro Rain catalogue Download
Hydraulic Soft Hose Drum catalogue Download
Digital Irrigation Download
Tractor Pumps catalogue Download
Computer Rain Control Download
