ID # 21335235

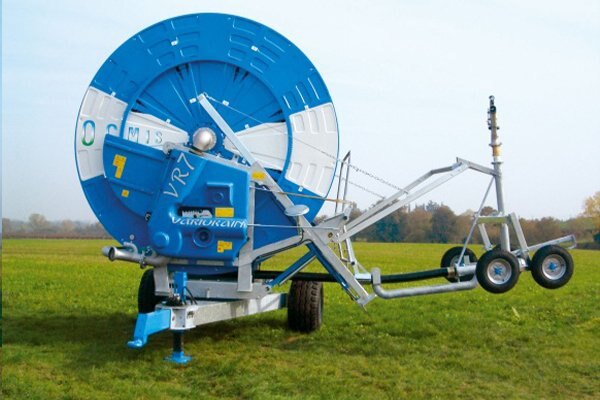

Ocmis - VR7

  • Ocmis VR7
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system.

The best-sellers of our range.

Appreciated and used by agriculturalists the world over for their versatility and user-friendliness.

The competitive advantages are numerous: water saving, user-friendliness, and no significant pressure losses.



Specifications
Model
VR7
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Ocmis
standard equipment

  • Hydraulic lifting device of trolley
  • Telescopic hydraulic feet
  • 4 speed VR gearbox
  • Power take off
  • Turbine flanged on the gearbox with built-in by-pass
  • Flexible connection pipe
  • Galvanized raingun trolley mounted on variable track wheels
  • Raingun
  • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
  • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
  • Winding handle
  • Speed equalizer
  • Tachometer
  • Pressure gauge (glycerine bath)
  • Mechanical lifting of drawbar
  • Safety guards
  • 2 wheels mod. 12.5/80-15.3 14PR 6F
  • Hot galvanized chassis and turret
  • Reel coated by epoxy resin and painted with polyurethane paint
  • Safety guards made of steel, swaged galvanized and painted
  • Galvanized double water inlet
  • For hose diam. 100-110-120-125 water inlet Bauer Ø 108
  • For hose diam. 135-140 water inlet Bauer Ø 133
  • Polyethylene hose made from unadulterated raw material
technical features
Ocmis VR7
A cm. B cm. C cm. D cm. E cm. F cm. G cm. H cm.
364 400 358 340 235 243 309 350
versions and performances
HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
100 650 REFLEX 26/28/30 A Download
110 550 REFLEX 24/26/28 C Download
110 600 REFLEX 24/26/28 A Download
120 540 EXPLORER 30/32/34 A Download
125 450 EXPLORER 32/34/36 D Download
125 500 EXPLORER 32/34/36 B Download
135 400 EXPLORER 34/36/38 J Download
140 380 EXPLORER  36/38/40 J Download

catalogues
General catalogue Download
Micro Rain catalogue Download
Hydraulic Soft Hose Drum catalogue Download
Digital Irrigation Download
Tractor Pumps catalogue Download
Computer Rain Control Download
