ID # 31182886

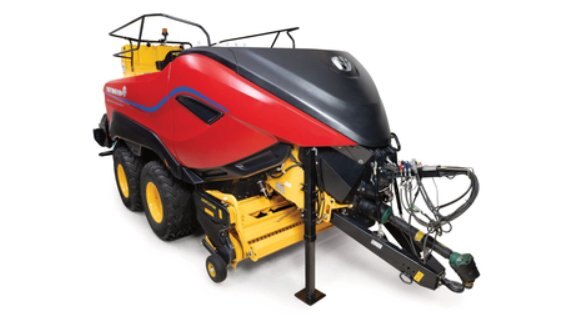

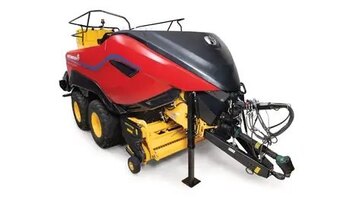

New Holland BigBaler High Density Large Square Balers - BigBaler 340 High Density

  • New Holland BigBaler High Density Large Square Balers BigBaler 340 High Density
  • New Holland BigBaler High Density Large Square Balers BigBaler 340 High Density
  • New Holland BigBaler High Density Large Square Balers BigBaler 340 High Density
  • New Holland BigBaler High Density Large Square Balers BigBaler 340 High Density
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

WIDTH (IN. (CM))

47 (120)

HEIGHT (IN. (CM))

35 (90)

HIGH-DENSITY PERFORMANCE

BigBaler 340 High Density balers can deliver up to 22% higher-density bales than other conventional large square balers, and up to 15% more when compared to BigBaler 340 PLUS models.

SMOOTH BALER ENGAGEMENT

Exclusive SmartShift™ gearbox features two-speed start-up technology for smooth baler engagement while protecting the tractor’s driveline.

HYDRAULIC AXLE SUSPENSION

Provides excellent ground following ability and superior accessibility underneath the baler.

STRONGER KNOTS

Patented Loop Master™ knotter system increases overall bale tensile strength up to 26% for lower operating costs while eliminating twine offcuts.



Specifications
Download Specs
Model
BigBaler High Density Large Square Balers
Category Name
Equipment
Year
2024
Sale Type
New
Manufacturer
New Holland
cropcutter® feeding system

BENEFITS OF SHORTER PARTICLE LENGTH

Cutting crop as it’s fed into the baler delivers shorter particle lengths, which results in tighter material packing and greater bale density. Cutting material with up to 29 spring-protected knives can help improve silage bale fermentation, feed digestibility, bale breakup and mixing, and material absorbency. Added density can also mean more weight per bale and more tons per truck, providing even greater savings.

KNIFE DRAWERNew Holland BigBaler High Density Large Square Balers BigBaler 340 High Density

Sharp knives require less power and lead to a more consistent cut length. The one-piece, slide-out knife drawer makes knife inspection and sharpening fast and easy. Knives are hydraulically activated from the cab. When cutting is not desired, the knife slots are easy to keep clean by using the supplied blanking plates that are conveniently stowed.

DIRECT PRECOMPRESSION CHAMBER FEEDINGNew Holland BigBaler High Density Large Square Balers BigBaler 340 High Density

The high-performance CropCutter® rotor cutting and feeding system moves material directly into the pre-compression chamber. When the desired pre-chamber density is achieved, the stuffer starts and swiftly moves the perfect flake into position. In the most difficult baling conditions, the rotor floor can hydraulically drop away to release the crop pressure for even easier restarting.



packer feeding system

RELIABLE PACKER FEEDING

The high-capacity packer model features three, three-tine packer forks made of Hardox®-brand steel that deliver performance, durability, and wear resistance. To match the baler's high throughput, the packer driveline is upgraded to handle up to 25% more power than BigBaler PLUS models.

INDUSTRY-LEADING PRECOMPRESSION TECHNOLOGYNew Holland BigBaler High Density Large Square Balers BigBaler 340 High Density

The packer feeder, precompression chamber and stuffer system provide unmatched reliability and consistent bale formation. Holding fingers retain crop until the desired density is achieved, and then paddles at the bottom of the chamber trip to start the stuffer motion. The heavy-duty shuttle feeder swiftly moves even the heaviest crop into the chamber, resulting in filled corners for perfectly square bales.



frame ＆ axles

HEAVY-DUTY FRAME

A new, even more robust frame has been designed to withstand higher-density loads created by the baler. The new main gearbox is mounted to the top beam to reduce crop accumulation underneath and increase durability. Additionally, the drawbar is not part of the main frame to facilitate height adjustment via the dedicated height adjustment rods, which is convenient when baling with different tractors.

EFFICIENT SUSPENSIONNew Holland BigBaler High Density Large Square Balers BigBaler 340 High Density

The new hydraulic suspension system delivers improved ground following and ensures perfect weight distribution across all four wheels. On uneven terrain, when the front wheel goes up, the rear wheel goes down, which improves field-hugging performance and reduces tire wear.

AUTO-STEER TANDEM AXLESNew Holland BigBaler High Density Large Square Balers BigBaler 340 High Density

The Auto-Steer tandem axle provides efficient turning and less stubble damage. The baler’s wheelbase has also been extended to deliver a best-in-class steering angle for even tighter turns, resulting in shorter headlands, easy road transport, and improved servicing access.

LARGER TIRESNew Holland BigBaler High Density Large Square Balers BigBaler 340 High Density

Larger diameter tires, up to 59 inches tall, can be fitted to the BigBaler 340 High Density to help reduce soil compaction. Choose the standard 600/50 R22.5 tires, or upgrade to the 620/55 R26.5 tires for the lightest possible footprint. Regardless of tire choice, transport width remains less than ten-feet wide down the road.



technical specifications

Width (in. (cm))

47 (120)

Height (in. (cm))

35 (90)

Minimum / Maximum length (in. (cm))

39 / 118 (100 / 300)

Minimum PTO power (hp (kW))

220-240 (164-179)

PTO speed / type

1000 rpm / 20 spline shaft

Hydraulic remotes

Standard: 2 x double acting 1 x single acting - Optional: 2 double acting + load sensing power beyond port*

SmartShift™ two-speed powershift gearbox - Two-speed / lower torque start-up

Standard

SmartShift™ two-speed powershift gearbox - Smart brake plunger technology

Standard

SmartShift™ two-speed powershift gearbox - Overload protection

Standard

Flywheel diameter (in. (mm))

42.5 (1080)

Flywheel weight (lbs. (kg))

714 (324)

Super-duty main gearbox - Enclosed sextuple reduction gearing

Standard

Super-duty main gearbox - Twin drive gears turning the main ouput gear

Standard

Main gearbox type input speed (rpm)

1440

Width (DIN 11220) (ft. (m))

7.7 (2.35)

Roller windguard

Standard

Feed assist auger - chain driven

Standard

Feed assist auger - hydraulic driven

Optional

Number of double tines

85

Tine diameter (in. (mm))

0.2 (5.5)

Flotation

Adjustable spring

Removable gauge wheels

Standard

Removable castering gauge wheels

Optional

HD 15x6.00-6 gauge wheel tires

Standard

Pick up slipclutch protection

Standard

Feeder

3 packer forks / 9 single tines

Feed assist auger

Standard

Number of knives

–

Theoretical cut length (in. (mm))

–

Full access, slide-out knife drawer

–

Knife activation, in - out

–

Knife blanking plates & storage

–

Hydraulic drop-floor slug release

–

Spring-loaded knife protection

–

Hard-faced rotor

–

Rotor protection

–

SmartFill™ II system

Standard

Stuffer activation

Automatic charge sensing

Stuffer mechanism

Fork with 6 tines

Stuffer drive

Oil-bath gearbox

Stuffer speed

up to 48 cycles per minute

Stuffer protection

Shear bolt (M10x90)

Speed Strokes / min

48

Length of stroke (in. (mm))

29 (748)

Loop Master™ double knot type

Standard

Twine type

100-130 m/kg grade

Number of twines

6

Knotter fan type

Electric

Number of knotter fans

3

Knotter engagement system

Electronic

Knotter function alert

Monitor and knotter flags

Knotter lubrication

Grease / Autolube

Twine ball capacity

36 XL

Hydraulic foldable twine boxes

Standard

Operation

Manual or automatic density

Number of cylinders

7 double acting cylinders

Hydraulic system type

Proportional controlled

ISOBUS Class III with AEF Certification

Standard

ISOBUS compatible for Virtual Terminal - less display

Standard

IntelliView™ IV color touchscreen display

Optional

ISOBUS III IntelliCruise™ System

Optional

ActiveWeigh™ Bale Weight System

Optional

Moisture sensing - rub pad

Optional

Moisture sensing - star wheel

Optional

PLM GPS data logging

Optional

CropSaver™ Crop Preservative Applicator

Optional

Camera monitoring system

Optional

Front & rear road & signal lights

Standard

1 x Rotary beacon

Optional

2 x Rear work lights

Standard

LED Strip needle light

Standard

LED Strip pickup light

Standard

LED Strip knotter lights

Standard

LH/RH - LED twine box lights

Optional

LH/RH - LED stuffer lights

Optional
literature
Name Link
BigBaler High Density - Brochure Download
Technical specifications Download
