ID # 31181909

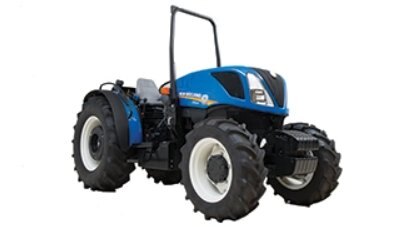

New Holland T4 F/V - T4.100F

  • New Holland T4 F/V T4.100F
  • New Holland T4 F/V T4.100F
  • New Holland T4 F/V T4.100F
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

ENGINE

98 GROSS ENGINE HP / 86 PTO HP

MINIMUM OVERALL WIDTH

61.7 IN (1569 MM) (VARIES BY TIRE SIZE)

CLEAN POWER

The entire T4 F/V range complies with Stage V emission standards; delivering sustainability and reduced carbon footprint.

COMPACT DESIGN

A winning combination of stability, power and maneuverability. Unmatched 76° turns with SuperSteer™ axle versions.

SUPERIOR SAFETY

The Blue Cab™ 4 delivers the highest level of protection against contaminants on the market, featuring an exclusive double filtration system that can be raised from Level 2 to Level 4 protection.

COMFORT AND VISIBILITY

Flat deck, more interior space, and new ergonomics layout controls with the lowest sound level will make long working days a pleasure.



Specifications
Model
T4 F/V
Category Name
Tractors
Year
2024
Sale Type
New
Manufacturer
New Holland
engine

POWERFULLY EFFICIENT

T4 F/V tractors feature the renowned F34 and F36 high-performance 4-cylinder Fiat Powertrain Technologies (FPT) Industrial engines, equipped with Stage V electronic fuel injection, offering a power range of 75 to 120hp. The F34 and F36 engines offer fantastic fuel efficiency thanks to the ability to achieve max torque at just 1,300 rpm. The AdBlue and fuel tanks are perfectly sized for long working days. FPT Industrial engines provide market leading performance and reliability. With 600 hour oil change intervals, the T4 Specialty range delivers a low cost of ownership and a reduction in downtime.



transmission

MORE TRANSMISSION CHOICES

The modular design of the T4F and T4V give you a choice of transmissions to suit your needs. The driveline has been redesigned to fit all models from T4.80 to T4.120 and provide more comfort during long working days and greater reliability thanks to the wet clutch. Advanced optional technology features include Dual Command™ Hi-Lo, Power Clutch push-button, Park lock system, creeper and the famous Powershuttle. The configurable Powershuttle has 3 pre-set modes: soft, medium or hard and is easily selected at the touch of a button.

16X16 SYNCHRO COMMAND™ TRANSMISSIONNew Holland T4 F/V T4.100F

The 16x16 Synchro Command™ transmission has either a synchronized mechanical shuttle or a convenient power shuttle for easy, clutch-free forward/reverse shuttling.

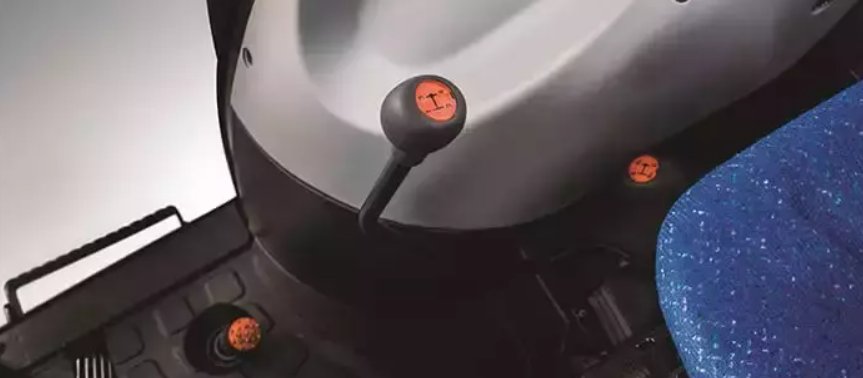

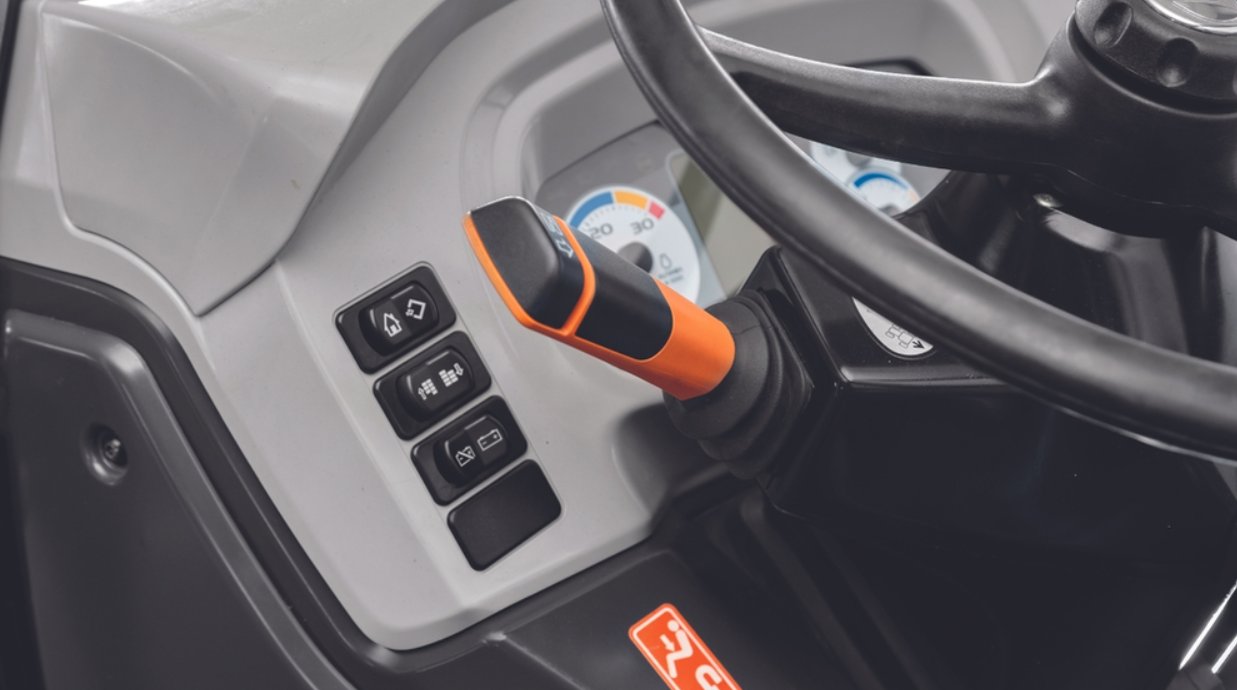

EASY SHUTTLINGNew Holland T4 F/V T4.100F

The convenient, left-hand, column-mounted power shuttle lever leaves your right hand free to operate implements.

32X16 DUAL COMMAND™ TRANSMISSION

The 32x16 Dual Command™ transmission provides the added convenience of a push-button high/low speed adjustment and foot clutch-free gear changes using the de-clutch button while shifting.



hitch and hydraulics

ALL THE HYDRAULIC POWER YOU NEED

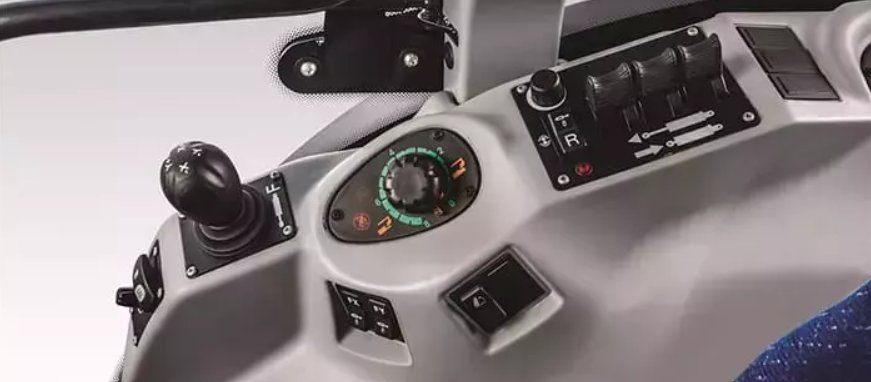

T4 F/V tractors provide an ample supply of hydraulic power and front and rear hitch options so you can take advantage of large implements. The Lift-O-Matic™ hitch control makes lifting and lowering implements as easy as flipping a switch.

POWERFUL THREE-POINT HITCHNew Holland T4 F/V T4.100F

Maximize your productivity even with the largest implements. Large rear hitch lift capacities are standard with the T4F and T4V tractors — 4,045 pounds on the T4F and 4,400 pounds on the T4V. The Lift-O-Matic™ feature allows you to raise and lower three-point-mounted implements with the push of a button.

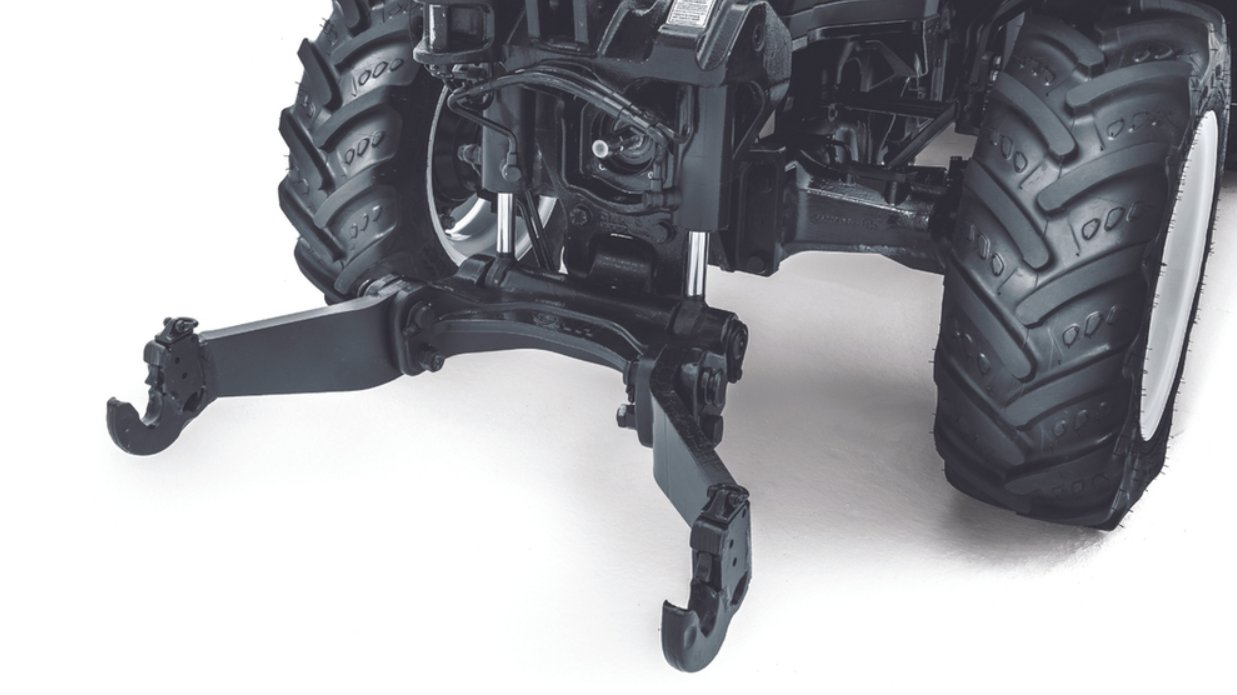

AVAILABLE FRONT HITCHNew Holland T4 F/V T4.100F

The heavy duty front three-point hitch (with available front PTO) has a lift capacity up to 3,968 pounds providing you with greater versatility while operating between rows. The redesigned front PTO gives you optimal performance with a purely hydraulic PTO clutch that is directly linked to the engine shaft.

DUAL-PUMP HYDRAULIC SYSTEMNew Holland T4 F/V T4.100F

The T4F and T4V hydraulic systems use two separate open-center hydraulic circuits to ensure full flow for operating implements, three-point hitch and other tractor operations. All models come standard with a 16.9-gpm implement pump, and two rear remotes, with the option to upgrade to three rear remotes with flow control on the number one remote.



cab and operator platform

OPERATOR FRIENDLY

Take your choice of an open platform or one of the two Blue Cab™ options that offer different levels of operator protection to meet the needs of different applications. Both cab and open platform models feature isolation mounting for a smooth ride and less vibration. Upgraded instruments and controls provide maximum comfort and ergonomics.

STANDARD BLUE CAB™New Holland T4 F/V T4.100F

The standard Blue Cab uses a higher-power fan for heat and air conditioning and a deluxe air filtration system that provides Level 2 dust protection.

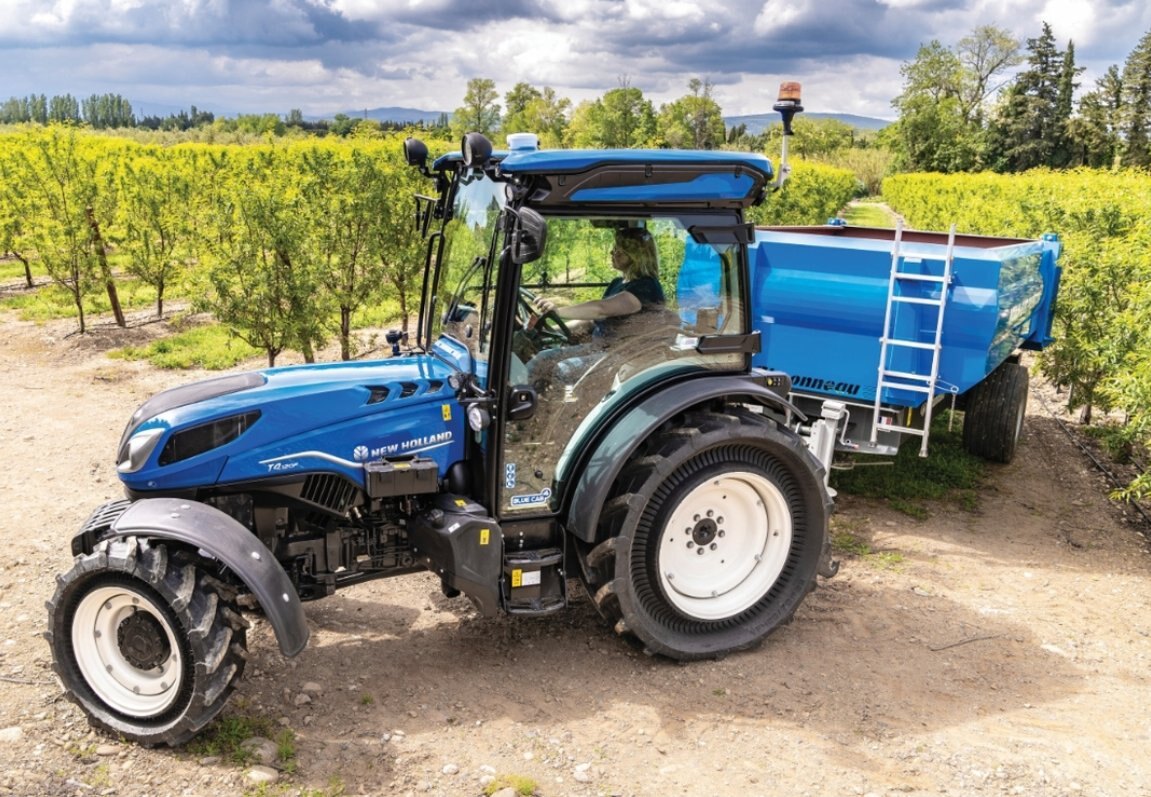

NEW BLUE CAB™ 4New Holland T4 F/V T4.100F

New Blue Cab 4 technology enhances the deluxe features of the Blue Cab™ system, providing cab Level 4 protection from dust, aerosols and vapors for the ultimate protection during spraying applications. This new system meets both EN 15695-2:2009 filter and EN 15695-1:2009 pressurization standards for operator protection. Blue Cab has an exclusive double filtration system that provides Level 2 protection until the operator chooses to engage Level 4 protection.

OPEN OPERATOR PLATFORMNew Holland T4 F/V T4.100F

The operator platform is designed to keep you comfortable with more hip area and legroom, plus easy-to-reach controls and an adjustable vinyl seat. The mid-mount rollbar folds down allowing extra clearance under low branches or overhangs.



technical specifications

Engine Horsepower

98

PTO Horsepower

86

Operator’s platform

Cab or ROPS

Front Axle

2WD or 4WD

Mechanical shuttle

16x16

Power shuttle

16x16 or 32x16

Lift capacity @ 24 in. (610 mm) (lbs. (kg))

4,045 (1835)

Rear remotes

2 / 3 / 3 with Diverter

Steering & service (gpm (Lpm))

9.2 (35)

Implement pump (gpm (Lpm))

16.9 (76.8)

Optional Implement pump (cab) (gpm (Lpm))

21.1 (80)

Weight (lbs. (kg))

6,420 (2912)

Overall length (in. (mm))

148.8 (3779)

Min. Height to ROPS (in. (mm))

89.6 (2275)

Min. Overall width (in. (mm))

61.7 (1569)

Min. Height to hood (in. (mm))

54.1 (1374)

Weight (lbs. (kg))

6,614 (3000)

Overall length (in. (mm))

159 (4035)

Min. Height to Cab (in. (mm))

95.5 (2425)

Min. Overall width (in. (mm))

61.7 (1569)

Min. Height to hood (in. (mm))

54.1 (1374)

Base PTO

540/540E

Optional 1

540/1000
