ID # 31136188

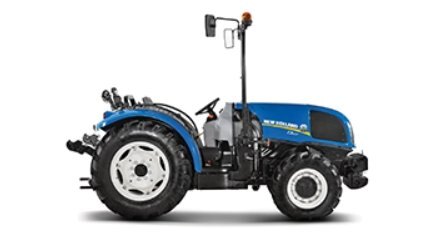

New Holland T3F Compact Specialty - T3.60F

  • New Holland T3F Compact Specialty T3.60F
  • New Holland T3F Compact Specialty T3.60F
  • New Holland T3F Compact Specialty T3.60F
  • New Holland T3F Compact Specialty T3.60F
  • New Holland T3F Compact Specialty T3.60F
  • New Holland T3F Compact Specialty T3.60F
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

ENGINE

54 GROSS ENGINE HP / 40 PTO HP

MINIMUM OVERALL WIDTH

57 IN (1448 MM) (VARIES BY TIRE SIZE)

COMPACT, STREAMLINED DESIGN

With a narrow frame and a low, overall height of only 54 in. (1397 mm) to the top of the steering wheel, T3F compact specialty tractors navigate easily in between precious crops as well as under low branches and overhangs.

POWERFUL VERSATILITY

T3F tractors are ideal for powering rotary cutters and small sprayers in large operations. They are also a prime choice for small orchards, hop yards, vineyards, nut groves, blueberry farms, poultry houses and any operation where you need a compact utility tractor.

HEAVY-DUTY POWER IN AN AGILE PACKAGE

T3F tractors pack 40 to 60 PTO horsepower in a heavy-duty, 5,000 lbs. (2268 kg) design without sacrificing maneuverability or agility.

A GREAT VIEW COMES STANDARD

The sloped hood and curved rear fenders provide excellent all-around visibility from the comfortable straddle deck platform.



Specifications
Download Specs
Model
T3f Compact Specialty
Category Name
Tractors
Year
2024
Sale Type
New
Manufacturer
New Holland
engine

RESPONSIVE, FUEL-EFFICIENT POWER

Powered with high-performance, three-cylinder engines from 40 to 60 PTO horsepower, T3F compact specialty tractors easily tackle routine chores in narrow, low-clearance areas. The common rail fuel injection provides optimum fuel economy.

TORQUE RESPONSENew Holland T3F Compact Specialty T3.60F

The turbocharged, intercooled T3F engines feature four valves per cylinder for fast engine responsiveness. High torque rise from 47% to 54% assures you of consistent power at high RPMs.



transmission

RUGGED SIMPLICITY

The simple 12x12 mechanical shuttle transmission features three constant mesh ranges with four synchronized gears in each range to give you a selection of speeds to match the job at hand.

SIMPLE, ERGONOMIC CONTROLNew Holland T3F Compact Specialty T3.60F

The range lever is mounted on the right side of the steering wheel, and the gear lever is located on the right-hand console for convenient operation.

EASY CHANGE FROM FORWARD TO REVERSENew Holland T3F Compact Specialty T3.60F

The handy shuttle lever is located on the left side of the steering column for quick direction changes and smooth maneuvering.

OPTIONAL CREEPER

A creeper transmission is optional for precise, low-speed applications.



hitch and hydraulics

SUPERIOR HYDRAULIC CAPACITY AND EASE

T3F tractors boast a dual-pump hydraulic system with a total flow of 20.2 gallons per minute (gpm) with a 12.6-gpm implement pump and 7.6-gpm services pump.

COLOR-CODED REMOTESNew Holland T3F Compact Specialty T3.60F

Convenient, color coding allows you to easily identify hydraulic control levers and rear remote outlets. Two remotes are standard with a third optional.

4,000-LB LIFT CAPACITYNew Holland T3F Compact Specialty T3.60F

The heavy-duty T3F Series three-point hitch allows you to tackle specialty applications easily with 4,000-pound lift capacity.

EASY, LIFT-O-MATIC™ HITCH CONTROL

Lifting and lowering implements is as easy as flipping a switch thanks to New Holland’s Lift-O-Matic hitch lift control.



technical specifications

Make

S8000

Type

3-cylinder diesel

Displacement (cu. in. (L))

179 (2.9)

Gross engine horsepower

54

PTO horsepower

40

Rated Engine Speed (rpm)

2,300

Emissions Tier 4B

CEGR + DOC

Standard

12X12 Mechanical Shuttle

Lift capacity @ 24 in. (609.6 mm) (lbs. (kg))

4,000 (1814)

Rear remotes

2 or 3

Implement pump (gpm (Lpm))

12.6 (48)

Service pump (gpm (Lpm))

7.6 (29)

Base PTO (rpm)

540/540E

Weight - ROPS/4WD (lbs. (kg))

5,000 (2268)

Height to top of steering wheel (in. (mm))

51 (1287)

Overall height - top of ROPS (in. (mm))

97 (2476)

Overall length (in. (mm))

143 (3637)

Minimum Overall width (in. (mm))

57 (1448)

Wheelbase 4WD (in. (mm))

73 (1866)
