FRAME SIZE LONG WHEELBASE RATED HORSEPOWER (HP (KW)) 180 (132) | |
VERSATILITY AT ITS MOST FUNCTIONALDairy, livestock, hay production, row crops, transport - configure your T7 specific to you and your operation. | |
PERFORMANCE AT ITS MOST RELIABLEThe T7 is available in three frame sizes (Standard, Long and Heavy-Duty Wheelbases) and models from 150 to 340 rated horsepower that redefine all-around performance. | |
COMFORT AND CONTROL THAT PUT YOU FIRSTBest-in-class lighting packages, upgraded seat options, cab suspension and easy-to-use controls improve operator comfort and productivity. | |
PRECISION AGRICULTURE AT ITS FINESTThe T7 is available with an extra boost of integrated technology, with numerous models equipped with PLM Intelligence™. Precision farming has never been easier or more productive. |
BLUE POWER EXCLUSIVE EDITION
The ultimate choice in premium performance, cutting edge-technology and comfort. If you're aiming for your tractor to make a bold statement in the field, the T7 Blue Power Edition is the ideal choice. The Blue Power package is only available on models equipped with the Auto Command™ CVT transmission. Blue Power features include:
|

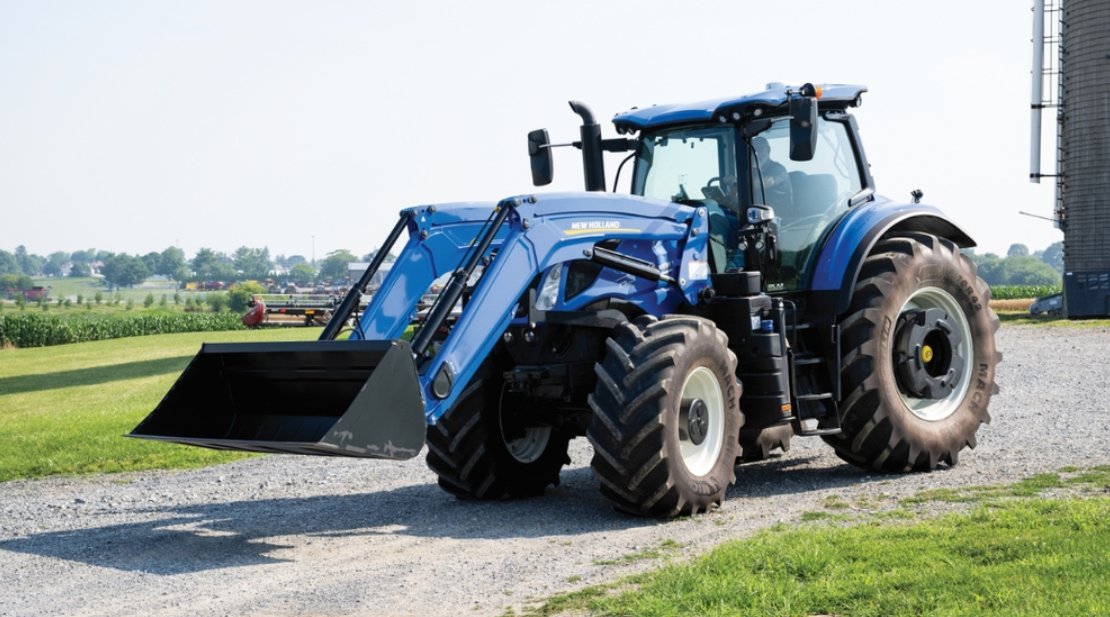

LOAD WITH CONFIDENCENew Holland’s QCS quick coupler system guarantees effortless operation between the loader and tractor. The QCS features automatic dirt protection, fully integrated electronics and freely rotating hoses. Its vertical clamping design enables connection and disconnection at working pressures, significantly reducing pressure loss. Saving you time and money with increased loader speed and reduced fuel consumption. | |
SOFT RIDE
| |

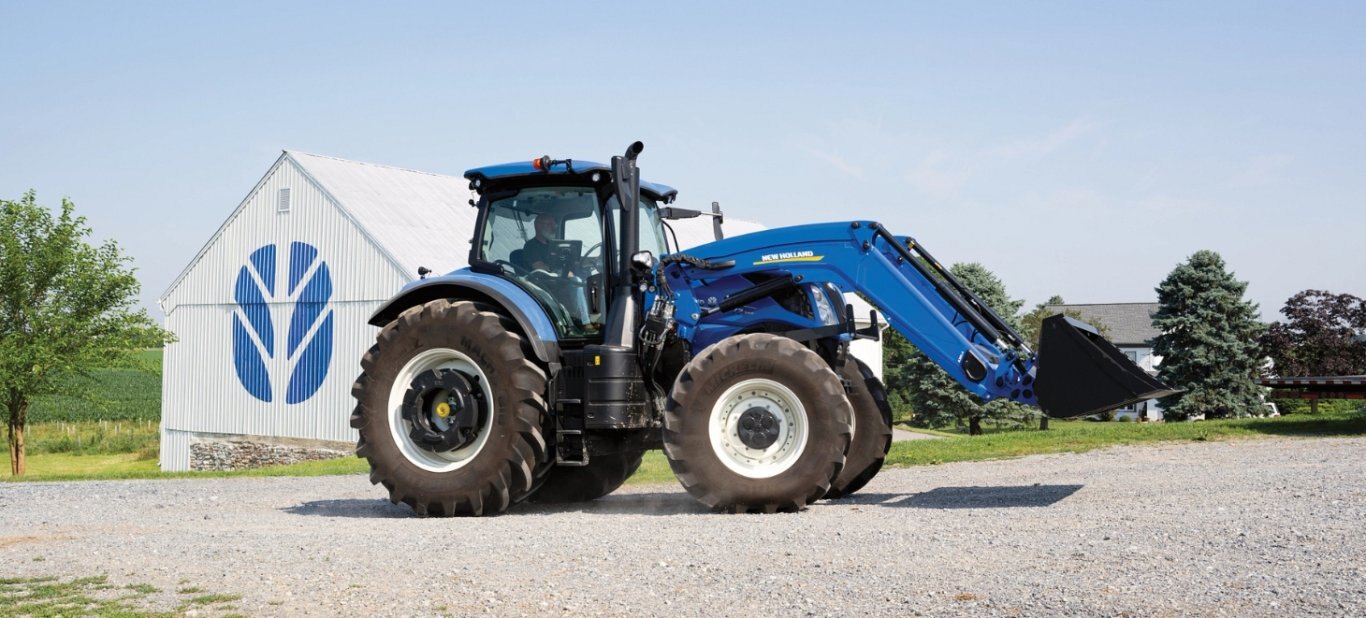

SELF-LEVELING LOADERSLA loaders with mechanical self-leveling allow you to maintain your bucket or implement angle while you’re lifting and lowering the loader. Allowing for increased speed and confidence when loading with a pallet fork or any task where implement angle is crucial. High-flow cylinder and hoses allow for optimal flow, generating less heat and saving valuable fuel. |
FUEL EFFICIENT POWER, DELIVERED SEAMLESSLY.The FPT Industrial NEF engine features ECOBlue™ HI-eSCR 2 technology for Stage V compliance, delivering efficient transfer of power for exceptional lugging ability all over a 500-rpm range. Producing high torque at these low engine speeds aids in low fuel consumption. Three available transmissions:
| |
RANGE COMMAND™
| |
POWER COMMAND™
| |
AUTOCOMMAND™ CVTThe four direct-drive points have been engineered to match the most frequently used speeds during heavy draft work, secondary cultivation activities and high-speed in-field work. Advanced double-clutch control smooths our bumps between the clutch packs when automatically shifting through the ranges. Three adjustable target speeds allows you to set a target speed between 0.01 mph - 31 mph and regulate to the nearest 0.006 mph. Active stop-start prevents the tractor from moving backward or forward when the tractor is brought to a standstill. An electronic brake is easily engaged with the shuttle lever. Available on:
|
THE PLACE TO GO FOR MORE SPACE AND BETTER VISIBILITYStep into a T7 Horizon™ cab, and you will find it has been designed to fit you perfectly. All-around visibility is as good as it gets, and the noise level is exceptionally low, at just 71 decibels. | |
THE ULTIMATE IN CONVENIENT CONTROLS
| |
COMMANDGRIP™ MULTIFUNCTION CONTROLLER
| |
INTELLIVIEW™ IV TOUCHSCREEN DISPLAY
| |
EYES IN THE BACK OF YOUR HEAD
| |
CLASSIC ARMRESTWith the Classic armrest, you enjoy easy access to mechanical remote levers, PTO engagement, switches to control 4WD engagement, differential lock, auto shift range function, and more. You can also easily perform quick, clutch-free gear changes with the Power Command™ joystick.
*Available on Standard Wheelbase and Long Wheelbase Classic Models | |
A SMOOTH RIDEComfort Ride™ cab suspension provides the smoothest ride over bumpy ground. This simple mechanical system uses two isolation “donuts” at the front corners of the cab and a swaybar and two adjustable shock absorbers at the rear to isolate you from both up and down motions and side-to-side swaying. | |
STANDARD & OPTIONAL EQUIPMENTThe following equipment is either standard or optional for the T7.190 and T7.210 Classic Short Wheelbase, as well as the T7.230, T7.245 and T7.260 Classic Long Wheelbase.
| |
CONTROL CENTER
|
WELCOME TO THE WORLD OF INTELLIGENT FARMINGDesigned to strengthen and reinforce the bonds you’ve built within your operation and community, bringing together the people and innovations that make modern agriculture possible.
| |
A NEW LEVEL OF CONNECTIVITY AND PRODUCTIVITYT7 with PLM Intelligence™ tractors provide the ability to share information with your preferred providers, perform diagnostics remotely and make data-driven decisions related to your operations—all from any location and all designed to help you successfully manage your farm, fleet and data. You’ll accomplish more in a single day, work smarter and more efficiently, and enjoy a superior level of control and management of your entire fleet. | |
THREE FACTORY-FITTED GUIDANCE PACKAGES
| |
FULLY INTEGRATED INTELLISTEER™ AUTOGUIDANCE
| |
REMOTE SERVICES TO KEEP YOU CONNECTEDWith PLM Intelligence™ you don’t always have to be in the cab of the tractor to see what the operator is seeing. You can remotely view the IntelliView™ 12 display from wherever you might be. The PLM Intelligence platform connects your farm, fleet and data to help you make well-informed decisions. No matter where they are, a farm manager or dealer can easily see exactly what the operator is seeing on the IntelliView 12 display screen in the cab. | |
REMOTE SERVICE AND SOFTWARE UPDATESThere’s no time for downtime. Now you can work with your local New Holland dealer to remotely diagnose maintenance and service issues to identify parts you need to stay up and running. Update your vehicle's operating software wirelessly to take advantage of new features, functionality and enhancements. | |
PLM™ CYGNUS RECEIVERThe new PLM Cygnus Receiver delivers improved machine position thanks to its integrated terrain compensation technology. It also enables quicker convergence times, as well as enhanced reliability in challenging conditions such as when working in valleys and in heavily forested areas. |
|
Frame Size |
Long Wheelbase |
|
Rated horsepower (hp (kW)) |
200 (147) |
|
Max. EPM horsepower** (hp (kW)) |
245 (180) |
|
PTO horsepower (hp (kW)) |
170 (126) |
|
Engine type |
Tier 4B Final - Stage V |
|
No. of cylinders / Valves / Displacement (cu. in. (L)) |
6 / 4 / 6.7 – 411 (6.7) |
|
Aspiration |
Turbocharged / air-to-air intercooled |
|
Range Command™ (semi-powershift) (mph (kph)) |
- |
|
Power Command™ (full-powershift) (mph (kph)) |
25 (40); 18X6 standard, 19X6 & 31 (50); 19X6 |
|
Auto Command™ (mph (kph)) |
25 (40) & 31 (50) |
|
Alternator / Battery |
200 AMP / 12 V |
|
Rear axle length, flange 73.6 (in. (mm)) |
112 (2845) standard, 119 (3023) |
|
Terraglide™ front axle suspension |
Optional |
|
System type |
Closed Center Load Sensing (CCLS) |
|
Standard pump flow (gpm (Lpm)) |
Electro hydraulic |
|
Main pump flow standard / MegaFlow™ option (Range & Power Command) (gpm (Lpm)) |
32 (120) / 40 (150) |
|
Main pump flow standard / MegaFlow™ option (Auto Command) (gpm (Lpm)) |
40 (150) / 45 (170) |
|
Rear hitch lift capacity (max) @ 90% max hydraulic pressure (lbs. (kg)) |
CAT 2/3; 10,944 (4964) / 13,512 (6129): 90 mm standard / 110 mm opt. |
|
Front linkage lift capacity (610 mm front of ball ends) @ 90% max hydraulic pressure (lbs. (kg)) |
CAT 3; 8318 (3773) |
|
Fuel tank (gal. (L)) |
123 (465) |
|
Diesel Exhaust Fluid (DEF) Tank (gal. (L)) |
14 (54) |
|
Wheelbase length (in. (mm)) |
113.5 (2884) - 117.2 (2977) |
|
Suspension |
Mechanical is standard, semi-active is optional |
|
Cab sound level (dBA) |
66 |
|
Approximate shipping weight (lbs. (kg)) |
21,054 (9550) |
