Name: New Holland Guardian™ Front Boom Sprayers - SP410F
Brand: New Holland
Availability: OutOfStock

Back

ID # 28334381

New Holland Guardian™ Front Boom Sprayers - SP410F

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

HORSEPOWER

412

TANK SIZE

1400 OR 1600 GALLON

THE EASIER WAY TO SPRAY

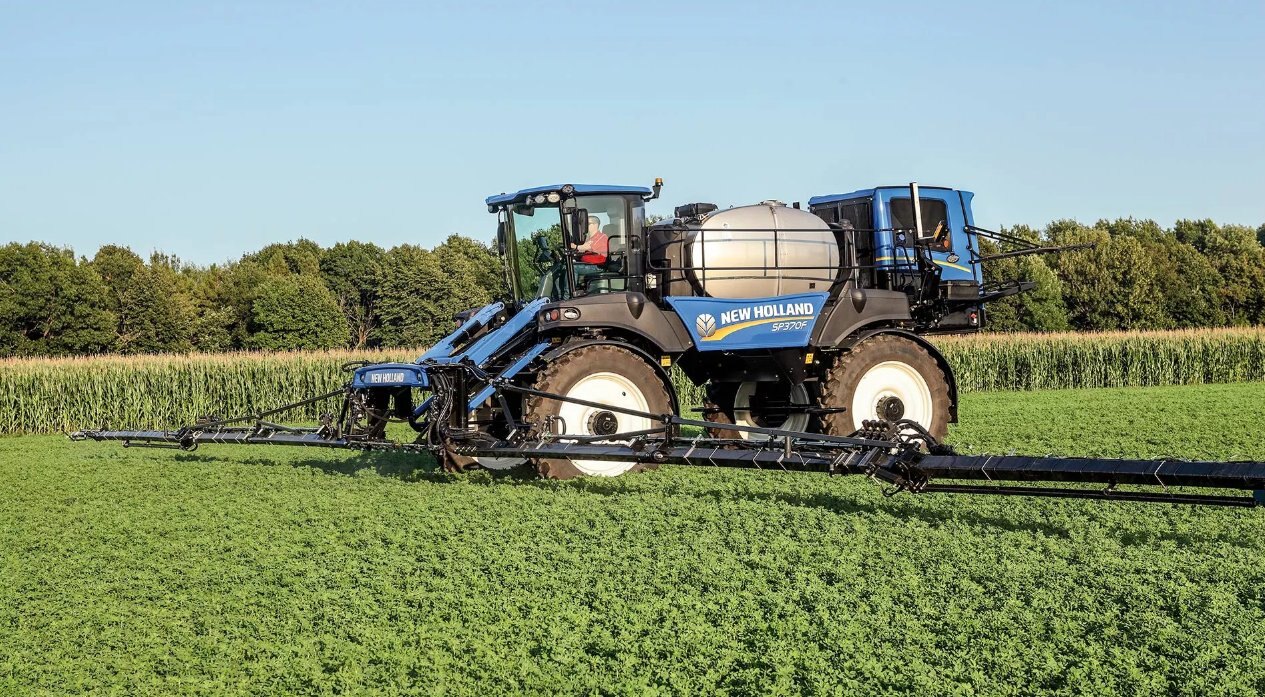

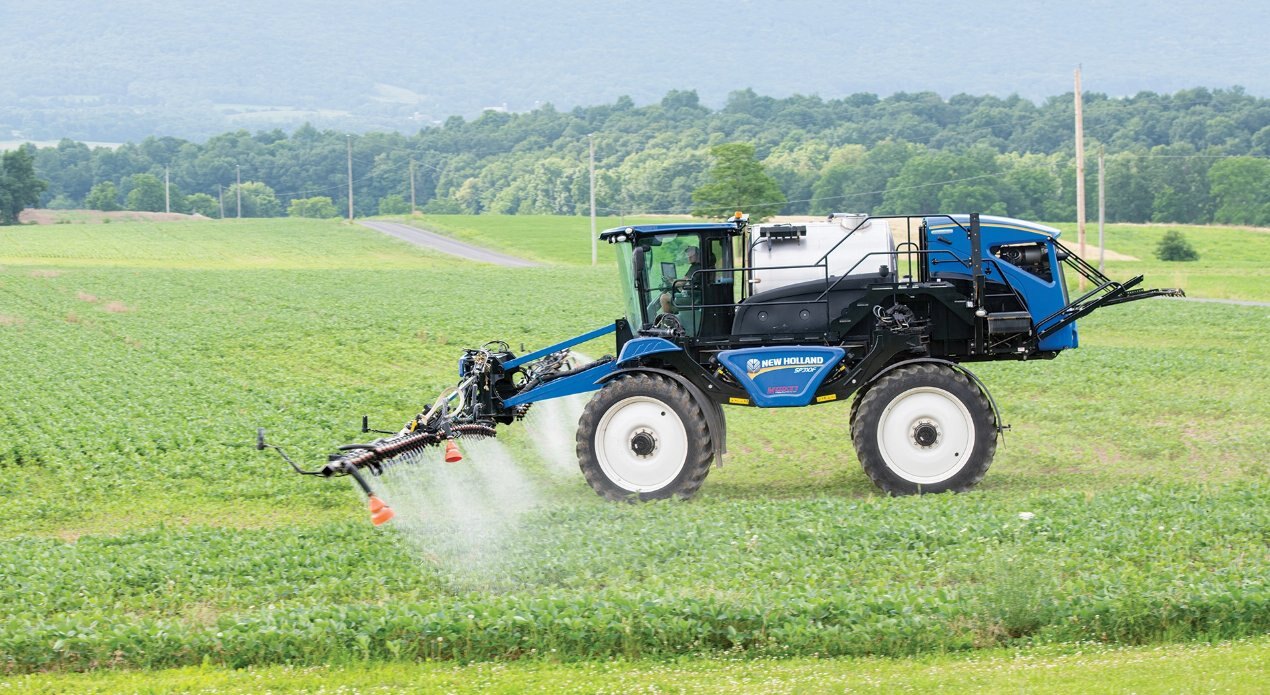

With the boom in front, you get unmatched visibility which means you can run the boom closer to the ground to reduce drift.

BEST-IN-CLASS CROP CLEARANCE

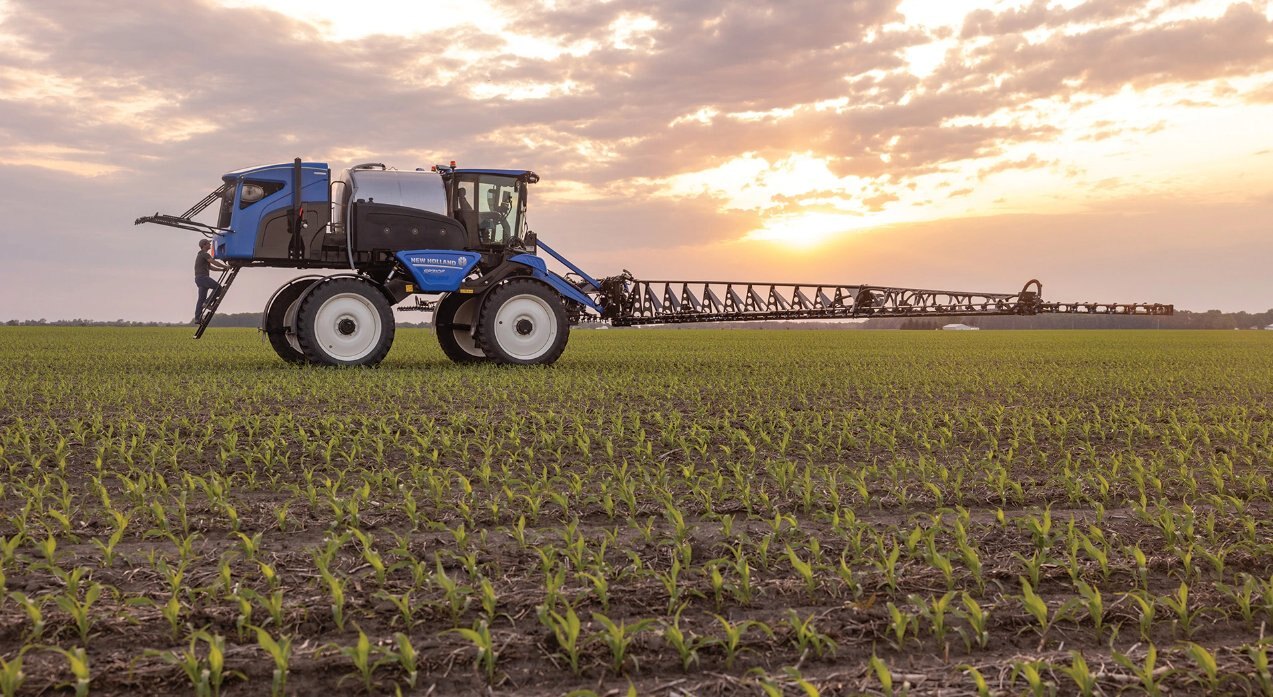

With crop clearance up to 78 inches, the Guardian™ sprayer is among the tallest in the industry. That means you can spray at all stages of crop growth.

HUGE PRODUCTIVITY

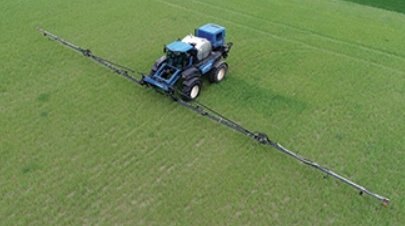

With models up to 412 horsepower, tanks as large as 1,600 gallons, and booms as wide as 135 feet, Guardian™ front sprayers allow you to protect more acres per hour.

UNPARALLELED ACCURACY

New Guardian sprayers come factory-equipped with the industry’s leading precision technology, so you can confidently apply with sub-inch accuracy.

Specifications

Model

Guardian™ Front Boom Sprayers

Category Name

Equipment

Year

2023

Sale Type

New

Manufacturer

New Holland

cab

PANORAMIC VISIBILITY

You’ll appreciate the expansive view of the field and the full width of the spray boom. Designed with over 69 square feet of glass, the Guardian™ cab features a full-height windshield and large wrap-around side windows. Plus, the rear windows have been darkened to shade you from long days in the sun.

THE NEW BENCHMARK FOR SPRAYING COMFORT

The ultra-quiet cab is designed expressly for the Guardian front boom sprayers and offers maximum comfort, control and convenience to put you at ease, even during long days in the field. The wide air-ride seat ensures every operator stays comfortable even after extended spraying hours. Details like footpegs on the steering column, Bluetooth® and XM radio, push-button engine start and backlit, and dimmable switches add up to major comfort. The Automatic Temperature Control (ATC) system comes as standard equipment.

MAKE ADJUSTMENTS CONVENIENTLY RIGHT FROM THE CAB

Guardian sprayers allow you to adapt to changing needs without leaving your seat, including adjusting sprayer under-body clearance from 72 to 78 inches on the go (SP310F). When spraying fungicide, there’s no need to leave the cab to activate the rear fungicide boom. Operate the standard electric rinse system from either the cab or from the ground. For even more convenience, order the optional auto-rinse system.

FINGERTIP CONTROLS

Guardian sprayers are easy to operate. The multi-function handle puts all critical function controls at your fingertips for precise, efficient control of the transmission, throttle, boom and individual sections. The convenient armrest command console is mounted on the seat and moves with the operator. Large switches are backlit and dimmable so they are easy to see and use.

INDUSTRY-LEADING RIDE

Expect the best in operator comfort and ride with reduced machine stress. These features combined with better boom stability provide unmatched spray accuracy at high speeds.

LOW NOISE

It’s quieter on board a Guardian sprayer so you can actually hear yourself think. With the engine mounted in the rear, the noise level is extra quiet, reducing fatigue and allowing you easily focus on the work ahead.

LED LIGHTS FOR TOP VISIBILITY

LED lights are standard equipment on the Guardian sprayers. All lights are LED and give you up to 32,940 lumens to work into the night. If you frequently work after dark, consider upgrading to the High Output LED package that can light up the night with up to 67,940 lumens.

TWO CAB PACKAGES

Select from two cab configurations: Deluxe or Luxury. Both are extremely quiet and loaded with features to make your day go a bit easier, including:
• Auto Climate Control
• Radio with remote armrest controls, AM / FM, Weather Band, XM, Bluetooth and 4 speakers
• Variable speed pressurization with active charcoal filtration with in-cab secondary filter
• Telescoping steering wheel with 2-way adjusting steering column and foot pegs
• Long arm windshield wiper mounted from the bottom so it actually cleans where you are looking
• Adjustable sun visor
• Three chassis monitors to give you information at a glance
• Prewired for easy installation of field computer systems
• Color rearview camera
• Multiple power outlets and USB ports

Deluxe Cab: In addition to the standard features for both cabs, the Deluxe cab includes a cloth, high-back, air-ride operator seat with adjustable arm rest, and a cloth fold-down instructor’s seat.

LUXURY CAB PACKAGE

The Luxury cab package includes Deluxe cab features plus:
• Grammer Evolution high-back leather-trimmed seat that is fully adjustable, heated and vented
• Leather-trimmed instructor seat
• Leather-wrapped steering wheel
• Integrated fridge located under the instructor seat
• Auto on/off headlights
• 110-volt power outlet
• X-Grip® mount for tablets and cell phones

CHASSIS MONITORS

The right-hand chassis monitor is mounted on an adjustable swing arm and allows operators to control many functions of the sprayer, and select what is displayed on the monitoring screen. The headliner chassis monitor continually displays all operating functions of the chassis including speed, rpm, temperatures and fuel level. It is mounted on the ceiling where it does not disrupt the operator’s line of sight to the spray boom. A spray info bar with a light-up section display is mounted to the ceiling and lets you know which boom systems are operating.

CUSTOMIZABLE DUAL DISPLAYS

Keep critical information at hand with factory-fit dual display options in new Guardian™ front boom sprayers. Intuitive, customizable, and ready to meet the unique needs of every operation, the IntelliView™ 12 and Raven Viper® 4+ interface with the MyPLM™ Connect suite of tools for real-time data analysis and management.

INTELLIVIEW™ IV MONITOR

The IntelliView™ IV color, 10.5-inch, touchscreen display is available as an option from the factory. In addition to monitoring all sprayer functions, the IntelliView IV monitor allows you to control boom height, section controls, prescription applications and auto guidance (if so equipped) – all from one monitor. The display offers direct USB connectivity for data collection and can provide summaries for product applied and area worked – by farm, by field, by an operator, by crop and more.

drivetrain

INCREASED TORQUE AND IMPROVED FUEL ECONOMY

FPT turbocharged and aftercooled engines deliver up to 412 peak horsepower. They are EGR-free, electronically controlled, meet Tier 4B standards and provide high torque rise for added power when you need it. Engines are mounted in the rear for better weight distribution, easy access, and a quieter cab.

SINGLE-PASS COOLING WITH VARIABLE SPEED COOLING FAN

Guardian™ Sprayers use a stacked, one-pass cooling package. Instead of modules being layered front to back, they are positioned on top of each other, so they all receive the benefit of the same, cool airflow. The high-volume fan pulls air through the entire system in a single pass, allowing for a more efficient flow of cooler air through all of the cores for maximum efficiency. The cooling fan runs only as fast as it needs to, saving horsepower and fuel while reducing noise in the cab and around the sprayer.

REVERSING FAN OPTION

For really dirty conditions, you can equip the Guardian sprayer with a reversing fan option. At timed intervals, the cooling fan automatically reverses the flow of air, purging the intake screen from dirt and debris.

SMOOTH, HYDROSTATIC TRANSMISSION

A proven hydrostatic drive system is electronically controlled, delivering smooth power to the wheels and providing you with a wide range of speeds to match varying spraying and field conditions.

PLANETARY DRIVE SYSTEM

The New Holland planetary drive system is electronically controlled and provides a long list of outstanding features such as full-time traction control, cruise control, anti-stall, integrated speed limiting and four driver-programmable speed settings. Add to that a road speed up to 35 mph with four-wheel dynamic braking and you have an effortless system to operate.

technical specifications

Engine	FPT® Cursor 9 / 8.7 Liter Tier 4B
Rated Power	382 HP (284 kw)
Power Bulge	412 HP (307 kw)
Fuel Tank Capacity	150 gal (568 L)
DEF Tank Capacity	24 gal (91L)
Transmission	Hydrostatic drive with electronic controlled Danfoss H1 series heavy-duty twin 130 cc pumps
Speed Range	Full range with 4 user defined speed ranges
Crop Clearance	74 or 76 inches (187.96 or 193.04 cm)
Tank Material	Stainless Steel
Tank Capacity	1200, 1400 or 1600 gallon (4542, 5300 or 6056 L)
Rinse System	Standard electric controls or optional Auto Rinse 150 gal. (568 L) poly tank with 2 in. (5.08 cm) fill connection
Mono Boom Width (ft)	90/60, 100/60 or 120/70
Truss Boom Width (ft)	120/73, 132/73 or 135/73
Spray-Air Boom Width (ft)	90, 100 or 120
Nozzle Bodies	3+1 Way Turret / 5 Way Turret / IntelliSpray with 3+1 Turret
Shipping Height (cm)	154 in. (391)
Shipping Width Mono Boom (cm)	145 in. (368)
Shipping Width Truss Boom (cm)	173 in. (439.4)
