ID # 28326975

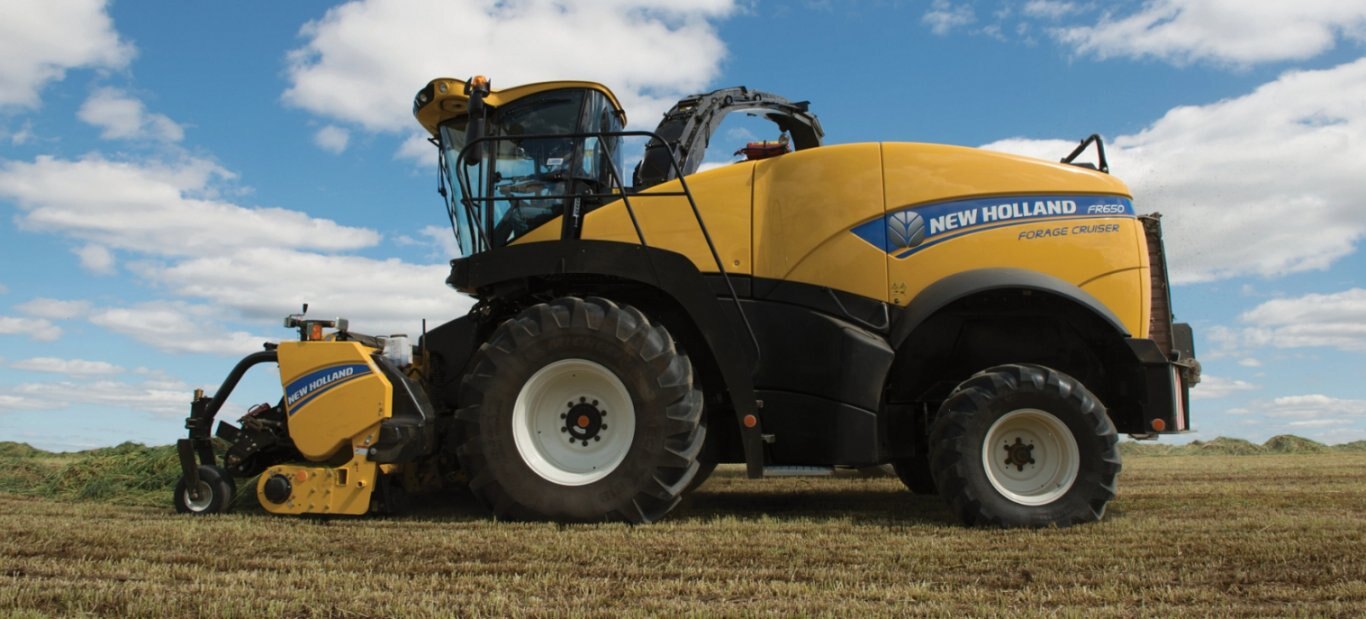

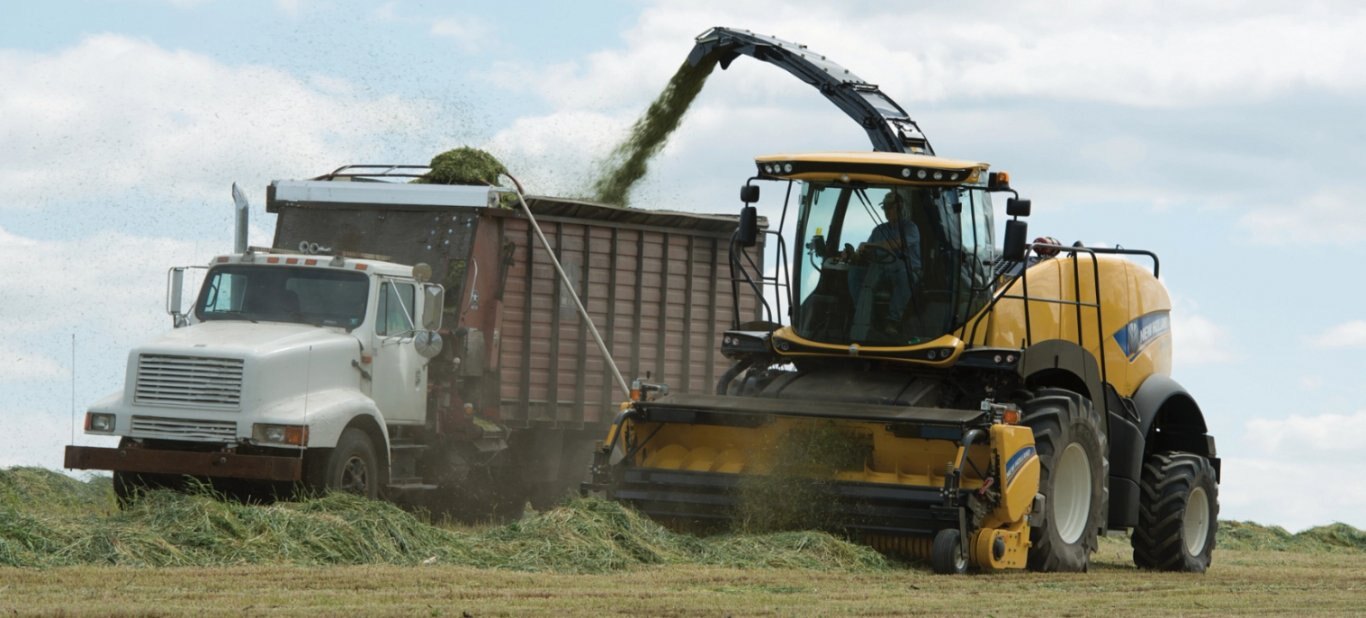

New Holland FR Forage Cruiser SP Forage Harvesters - FR920

  • New Holland FR Forage Cruiser SP Forage Harvesters FR920
  • New Holland FR Forage Cruiser SP Forage Harvesters FR920
  • New Holland FR Forage Cruiser SP Forage Harvesters FR920
  • New Holland FR Forage Cruiser SP Forage Harvesters FR920
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

GROSS ENGINE POWER @ 2100 RPM - ISO TR14396 - ECE R120 [KW/HP(CV)]

610/830

MAX. ENGINE POWER @ 1700-1900 RPM - ISO TR14396 - ECE R120 - [KW/HP(CV)]

670/911

ULTIMATE CAPACITY

With 476 to 911 horsepower and uncompromised throughput, FR Forage Cruisers maximize your tons per hour.

SUPERIOR HARVEST QUALITY

The industry's widest crop channel from feedrolls to spout flippers means a thin, controlled crop mat for best-in-class chop quality.

FIRST-CLASS COMFORT

The quiet, spacious cab offers an uninterrupted view and features new seating options and comfort features.

LOW OPERATING COSTS

Fuel-efficient engines and easy maintenance lowers your operating costs for higher profits.



Specifications
Model
FR Forage Cruiser SP Forage Harvesters
Category Name
Equipment
Year
2023
Sale Type
New
Manufacturer
New Holland
cab and controls

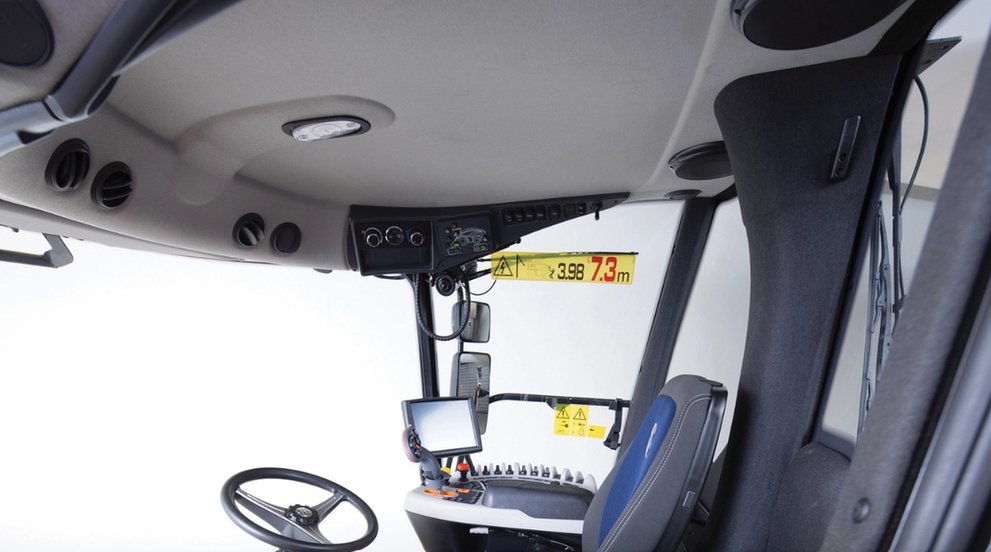

THE QUIET, SPACIOUS CAB

The FR series forage harvesters are your home away from home. The redesigned cab features lots of elbow room, and you can enjoy all of that space in the peace and quiet of the near-silent 76 decibel sound level.

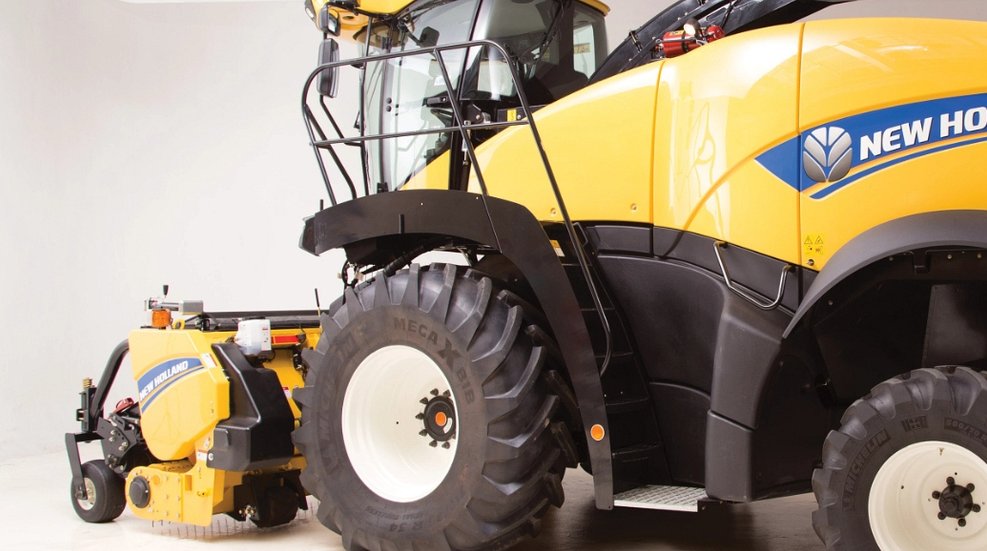

EASY ACCESSNew Holland FR Forage Cruiser SP Forage Harvesters FR920

Redesigned steps follow a natural arc to make access easy. The operator platform has been extended with the addition of sculpted handrails for safe entry and exit late at night and after long working days.

NEW SEATING COMFORTNew Holland FR Forage Cruiser SP Forage Harvesters FR920

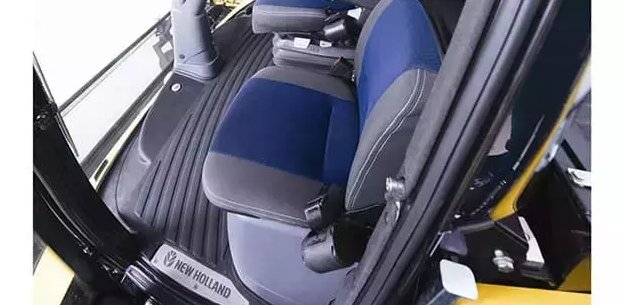

New slim steering column features a double-jointed design that makes it easy to position the steering wheel exactly where you want it for the best view of the header and maximum comfort. Select from these new seating choices:
• Deluxe 2-color cloth seat features suspension with automatic weight adjustment and variable shock absorption. Seat upper has adjustable backrest, lumbar support, seat pan angle, seat pan in/out, and height adjustable flip-up left-hand armrest.
• New leather and cloth luxury seat (optional) includes heated and ventilated cushions, pneumatic lumbar support, and an adjustable headrest. Suspension upgrades include both fore/aft and lateral isolation.

DESIGNED FOR YOUR COMFORT AND ERGONOMIC OPERATIONNew Holland FR Forage Cruiser SP Forage Harvesters FR920

The relaxing air-suspended operator seat features multiple adjustments to conform to most any preference to guarantee the utmost comfort during long harvesting days. The right-hand console is suspended with the seat and moves with it, but can also be adjusted for/aft independently for perfect positioning.

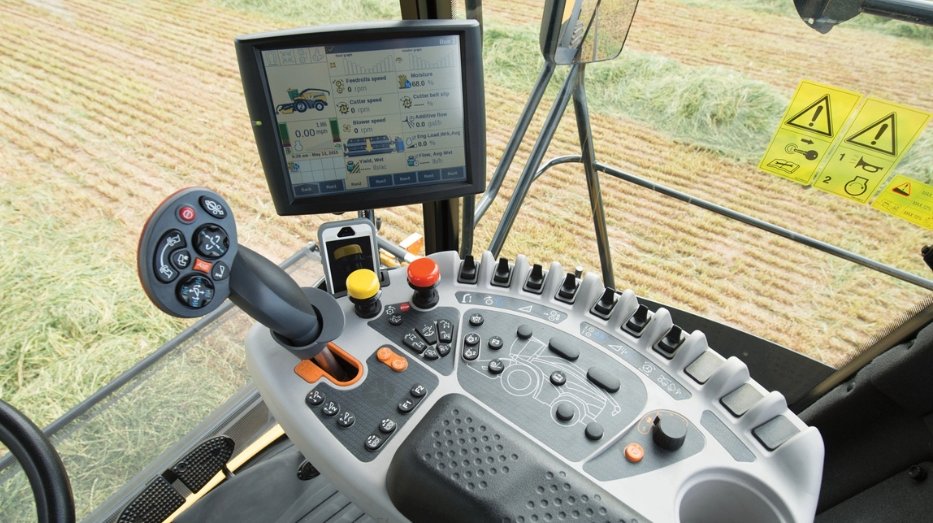

YOUR CONTROL CENTER EFFORTLESSLY MAXIMIZES PERFORMANCENew Holland FR Forage Cruiser SP Forage Harvesters FR920

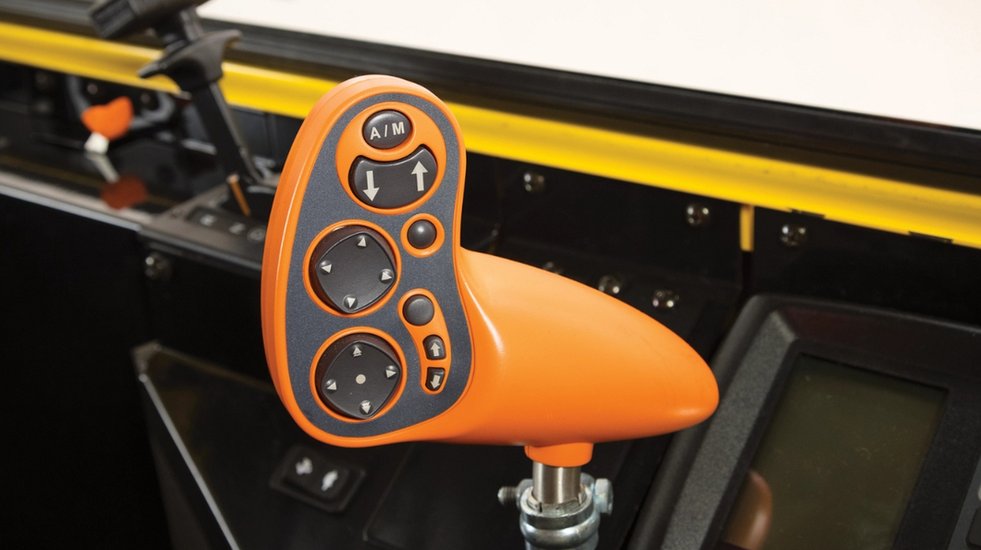

Intelligent and intuitive Forage Cruiser automation saves time and enhances harvesting performance. The CommandGrip™ multi-function lever is your direct link to FR control. It lets you manage all key machine operating parameters including header controls, spout engagement and Power Cruise™ activation. Less frequently used functions are laid out logically on the right-hand console for easy access when needed. You can analyze machine functions at a glance courtesy of the color IntelliView™ IV monitor.

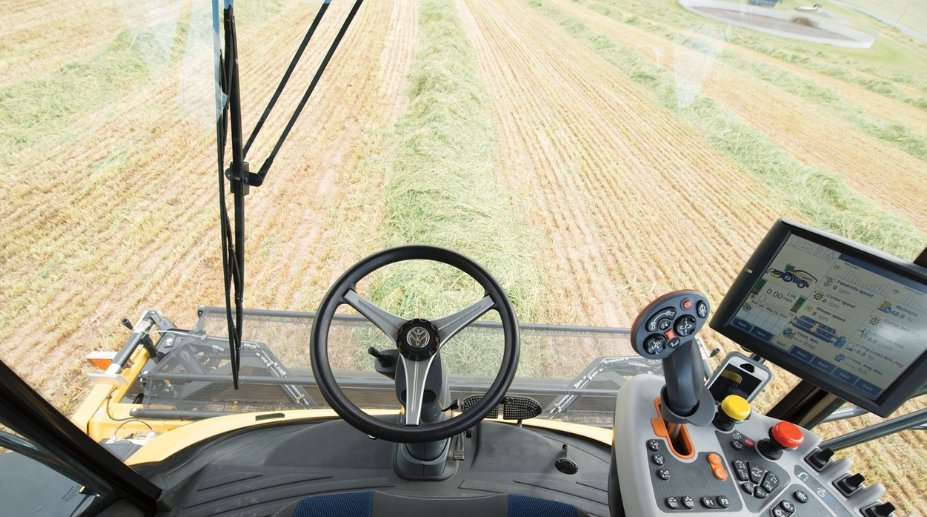

360° PANORAMIC VISIBILITYNew Holland FR Forage Cruiser SP Forage Harvesters FR920

This cab is designed specifically for chopping with wide curved windows offer a perfect view of the header and to the spout regardless of position. The sculpted, glazed side-door panels naturally follow the spout’s unloading arc for a clear line of sight during discharge. A rear window that gives you eyes-in-the-back-of-your-head-visibility. You can adjust the electric mirrors from the comfort of your seat to get the exact views you want, and you can manage up to three viewing cameras through the IntelliView™ IV monitor.

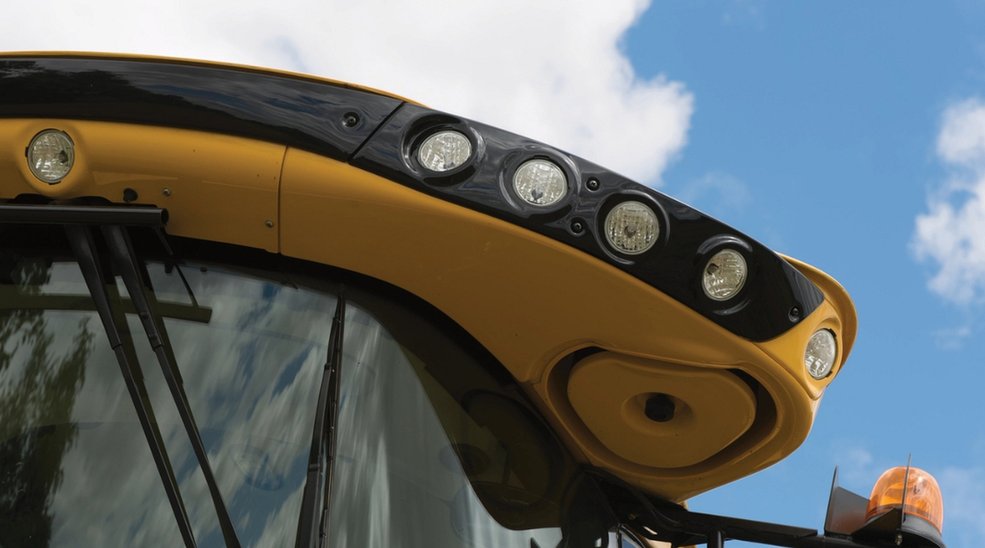

LIGHTING THAT’S EASY TO CONTROLNew Holland FR Forage Cruiser SP Forage Harvesters FR920

The lighting soft touch control pad with an outline of the harvester makes it easy to select which lights you want to use. A master off switch allows all of them to be turned off at the end of the night, but remembers the combination that was on the next time lights are needed. For extra illumination, a full LED light package is optional on all models.



engine

PRECISION AND EASE

You stack bales in comfort and with precise control from the quiet, iso-mounted Stackcruiser® cab. Sit in the air-ride, adjustable swivel seat featuring lots of legroom thanks to the design of the tilt steering column and right-hand control console.

OUTSTANDING VISIBILITY, DAY OR NIGHTNew Holland FR Forage Cruiser SP Forage Harvesters FR920

The high position of the cab and the large front, side and rear windows give you an excellent all-around view. The left-hand, external mirror provides good visibility when stacking and on the road, and the inside rearview mirror gives you a clear view to the second table. In addition, five LED work lights provide bright, clear light for improved visibility during night-time operation.

CONVENIENT, SINGLE-HANDED CONTROLNew Holland FR Forage Cruiser SP Forage Harvesters FR920

The multi-function handle puts convenient operation of all bale handling operations in one central location. The handle adjusts up, down, fore, aft and rotates so you can place it in the perfect position for you. When unloading bales, the multi-function puts you in control of the load rack, rolling rack and push-off feet. The load rack features two raise speeds, putting precise control at your fingertips. The rolling rack allows you to stack partial loads when necessary.

STAY COOL ON THE WARMEST DAYS

Complete climate control further enhances your comfort with multiple air vents and simple adjustments to control the flow of air conditioning and optional heat to suit your liking. The HVAC condenser is now separate from the coolers for more effective operation and eliminating cab warm up when unloading stacked bales.

ADDITIONAL INSTRUMENTS KEEP YOU UP TO DATENew Holland FR Forage Cruiser SP Forage Harvesters FR920

An updated, modernized front instrument cluster bears familiar New Holland family styling and allows you to monitor fuel and DEF level, gear selection, ground speed, load rack position and more, while the warning light display keeps you apprised of key machine functions.



technical specifications

Engine

FPT V20

Engine configuration and number of cylinders

V-8

Displacement cu. in. (L)

1227 (20.1)

Injection system

Common Rail

Compliant with engine emissions regulations

Tier 4B

ECOBlue™ HI-eSCR system (Selective Catalytic Reduction)

Standard

Gross engine power @ 2100 rpm - ISO TR14396 - ECE R120 [kW/hp(CV)]

610/830

Max. engine power @ 1700-1900 rpm - ISO TR14396 - ECE R120 - [kW/hp(CV)]

670/911

Torque @ 2100rpm ISO 14396 - ECE R120 ft. lbs. (Nm)

2046 (2774)

Torque @ 1700rpm ISO 14396 - ECE R120 ft. lbs. (Nm)

2950 (3999)

Maximum Torque @ 1500 rpm ISO 14396 - ECE R120 ft. lbs. (Nm)

3020 (4095)

Torque rise (2100 to 1500 rpm) %

48

Torque rise (2100 to 1700 rpm) %

44

Approved biodiesel blend***

B5

Power Cruise™ II system

Standard

Fuel consumption measuring and read-out on IntelliView™ IV monitor

Standard

Air compressor

Standard

Diesel capacity gal. (L)

317 (1200)

AdBlue capacity gal. (L)

52 (200)

Feeding

HydroLoc™ drive

Length of cut adjustment

Infinite

Number of feed-rolls

4

Feed opening width in. (mm)

33.9 (860)

MetaLoc™ metal detection with position indication

Standard

Dual Drive system (header hydrostatic drive)

Standard

ActiveLOC™ active chop length control

Optional

Cutterhead cylinder type

V-shaped with 2 rows of knives

Cutterhead frame width in. (mm)

35.4 (900)

Cutterhead cylinder width in. (mm)

34.8 (884)

Cutterhead diameter (max / min) in. (mm)

27.9 / 27.2 (710 / 690)

Cutterhead speed at 2100 engine rpm rpm

1130

Cuts per minute (2x8 knives) c/min

—

Length of cut range (2x8 knives) in. (mm)

—

Cuts per minute (2x10 knives) c/min

11,320

Length of cut range (2x10 knives) in. (mm)

0.2 - 1 (5 - 26)

Cuts per minute (2x12 knives) c/min

13,600

Length of cut range (2x12 knives) in. (mm)

0.2 - 0.9 (4 - 22)

Adjust-O-Matic™ shearbar setting

Standard

Automatic knife sharpening system in forward or reverse

Standard

Variflow™ system

Shift between crops in under two minutes

Roll Width in. (mm)

29.5 (750)

Roll diameter in. (mm)

9.8 (250)

Cab Controlled Gap

Standard

Standard CP

–

Rolls

–

Economy CP

–

Rolls

–

DuraCracker HDCP

Standard

Rolls

HD Sawteeth, 100/130 teeth, 30% Differential

DuraShredder HDCP

Optional

Rolls

HD Sawteeth, 110/138 teeth, 40% Differential

Blower rotor diameter in. (mm)

20.7 (525)

Blower rotor width in. (mm)

29.5 (750)

Blower speed at 2100 engine rpm rpm

2119

Spout maximum height in. (mm)

252 (6400)

Rotation angle degree

210

Spout extension (10-row corn header) in. (mm)

28.3 (720)

Spout extension (12-row corn header) in. (mm)

54 (1380)

Automatic spout functions (home and work positions)

Standard

Spout side collision protection

Standard

12 volt alternator standard Amps

240

Battery capacity CCA / Ah

4 x 800 / 107

Hydrostatic

Standard

Gearbox

4-speed

Remote gearshifting

Standard

Differential lock

Standard

Mechanical powered rear wheels

Optional

Maximum road speed @ 1400 rpm mph (kph)

25 (40)

Pressure compensation mode

Standard

Autofloat™ system

Standard

Mechanical Lateral flotation

Standard

Power Reverse hydraulic header reverser

Standard

Hydraulic quick coupler (single location)

Standard

Automatic header speed synchronization to forward speed

Standard

Cab glass area ft³ (m³)

240 (6.8)

Cab category level - EN 15695

1

LED lighting pack

Optional

Optimum cab noise level - ISO 5131 (dB(A))

76

Deluxe cloth trimmed heated air-suspension seat with Active Ventilation

Standard

Leather trimmed heated air-suspension seat with Active Ventilation

Optional

Instructor’s seat

Standard

CommandGrip™ handle

Standard

IntelliView™ IV monitor with adjustable position

Standard

Reversing camera

Optional

Automatic climate control

Standard

Removable coolbox

Optional

Automatic greasing system

Standard

Rear bumper with integrated water proof storage boxes

Standard

New Holland Precision Land Management systems - PLM® Connect Telematics

Optional

IntelliSteer® system

Optional

Automatic row guidance system for corn headers

Optional

IntelliFill™ system

Optional

Optional additive tank (with adjustable flow) capacity gal. (L)

100 (395)

Moisture measuring

Optional

Yield measuring and moisture measuring

Optional

Full Precision farming package including: Yield measuring and moisture measuring, DGPS yield mapping

Optional

Full Precision farming package including: PLM desktop software and software support service

Optional

Weight**** lbs. (kg)

34,800 (15800)
literature
Name Link
FR Forage Cruiser SP Forage Harvesters - Brochure Download
Technical specifications Download
