BALE WIDTH 35.4 IN. BALE HEIGHT 31.5 IN. | |
EVEN HIGHER BALE DENSITYBale chamber is extended by 31.5 inches or 31% for up to 10% higher bale density. | |
SOFTER BALE DROPThe longer bale chamber also means bales exit the bale chute closer to the ground for gentler bale drop and less concern about twine breakage. | |
EASIER CLEANINGA larger platform allows for easier cleaning of the sides of the baler. | |
THE RIGHT MODEL FOR YOUWith the choice of three bale sizes with available crop processing and tire/axle combinations for any terrain, you’ll find a model that’s ideal for your needs. |

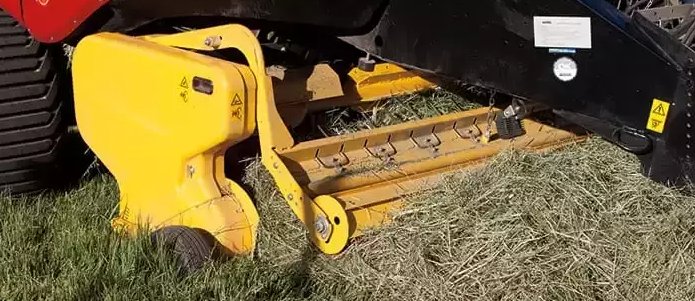

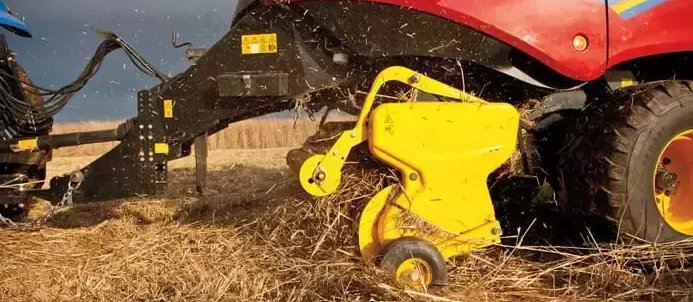

MAXISWEEP™ SPEED AND PERFORMANCEThe MaxiSweep™ pickup is designed to give you unsurpassed performance. Flare-to-flare width ranges from 77.5 inches on the 330 Plus Standard to 92.6 inches on the BigBaler 340 Plus CropCutter™ model. | |
“S”-SHAPED SIDE SHIELDING
| |
STANDARD ROLLER WINDGUARD
| |

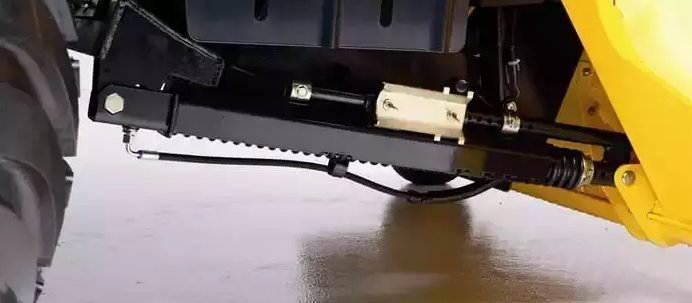

FAST, SIMPLE ADJUSTMENTS
| |

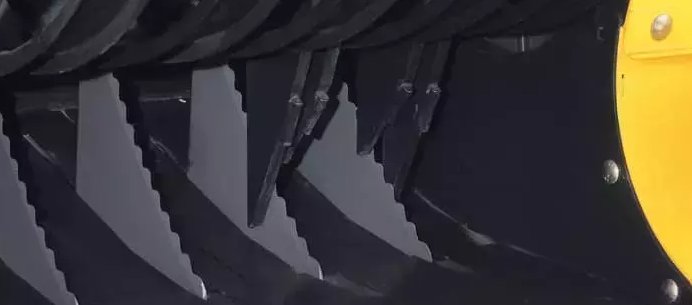

BEEFY CONSTRUCTIONLonger and thicker pickup tines are more durable and effective. Strong 2-mm profiled pickup guards with welded tine bar supports, as well as stronger cam and cam bearings increase durability and pickup performance. Thick frame and side sheets increase rigidity—important when operating at higher speeds, driving over pivot tracks and uneven terrain. |
GET THE BENEFITS OF SHORTER CHOP LENGTHChopping crop as it’s fed into the baler provides a number of advantages. The shorter particle length allows for tighter packing of material in the bale, better fermentation in silage bales due to less air in the bale and more anaerobic bacteria activity. Cutting silage, hay or straw bales also allows for more efficient feeding and spreading of material. New Holland offers two CropCutter® processing options—the high-performance Rotor Cutter feeding system and the more simple, economical Packer Cutter system. | |

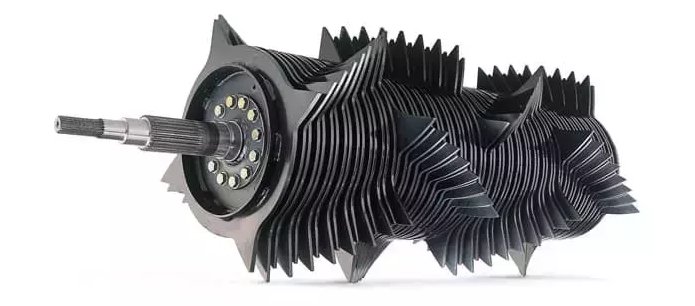

ROTOR CUTTER (BIGBALER 330 PLUS/340 PLUS ONLY)
| |
ABRASION RESISTANT OPTIONA new abrasion resistant rotor feeder option is available from the factory, and provides high wear resistance when working in cornstalks and sugarcane trash. | |

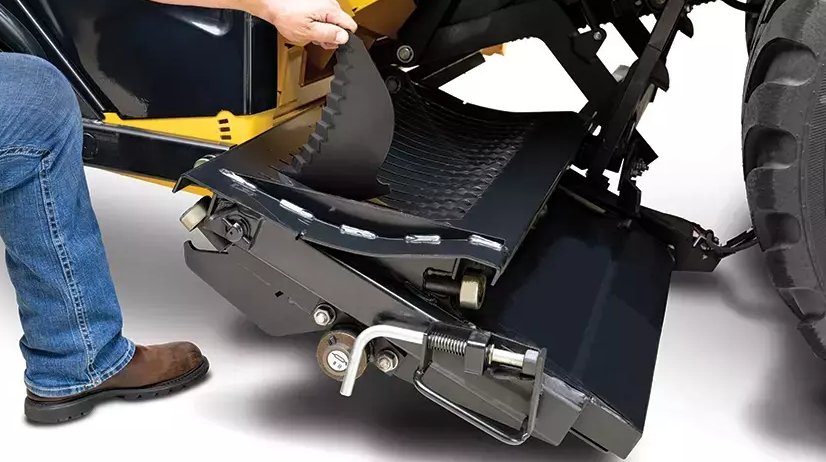

SLIDE-OUT KNIFE DRAWER
| |
PACKER CUTTER (BIG BALER 330 PLUS ONLY)
|
|
Width in. (mm) |
31.5 (800) |
|
Height in. (mm) |
35.4 (900) |
|
Maximum length in. (mm) |
108 (3000) |
|
Minimum PTO power hp |
109 |
|
PTO speed rpm |
1000 |
|
Single axle |
2 |
|
Tandem Axle |
2 |
|
Protection |
Shearbolt, overrunning clutch and slip clutch |
|
Flywheel weight lbs. (kg) |
538 (244) |
|
Width-flare to flare in. (mm) |
77.5 (1968) |
|
Width-tine to tine in. (mm) |
70.2 (1782) |
|
Flotation |
Adjustable spring |
|
Hydraulic pick-up lift |
Standard |
|
Gauge wheels 15 X 6.00-6-4ply |
2 |
|
Pick-up protection |
Slip clutch |
|
Torque Setting ft. lbs. (Nm) |
1069 (1450) |
|
Rotor cutter pickup cut out clutch ft. lbs. (Nm) |
- |
|
High performance rotor stop |
- |
|
Abrasion resistant knife options |
- |
|
Knife distance in. (mm) |
- |
|
Knife removal |
- |
|
Knife activation, in - out |
- |
|
Knife protection |
- |
|
Feeder |
2 packer forks; 6 single tines |
|
Feeder protection |
Slip clutch |
|
Stuffer |
Fork type with 4 tines |
|
Stuffer protection |
Shearbolt |
|
Pre-compression chamber, volume ft.3 (m³) |
8.8 (0.25) |
|
Speed strokes/min |
48 |
|
Length of stroke in. (mm) |
28 (710) |
|
Type |
Double knot type |
|
Number of twines |
4 |
|
Knotter fan type |
Electric |
|
Knotter fan number |
2 |
|
Knotter function alert |
IntelliView™ monitor and visual |
|
Knotter lubrication |
Automatic greasing |
|
Twine ball capacity |
32 |
|
Proportional 3-way control |
IntelliView™ monitor controlled |
|
Manual override |
Standard |
|
ISO 11783 connection ready |
Standard |
|
IntelliView™ III touch screen color monitor |
Optional |
|
IntelliView™ IV touch screen color monitor |
Optional |
|
Single axle |
600/55X22.5 12 PR or 700/40X22.5 16 PR |
|
Tandem axle with Auto-Steer™ |
500/50X17 14 PR |
|
Large wheeled tandem axle with Auto-Steer™ |
550/45XR22.5; 620/50XR22.5 (rotor only) |
|
Length chute closed (single piece) in. (mm) |
294.4 (7477) |
|
Width (single axle 600/55X22.5 12PR tires) in. (mm) |
101.1 (2568) |
|
Width (single axle 700/40XR22.5 16 PR tires) in. (mm) |
102.5 (2604) |
|
Width (tandem axle 500/50X17 14PR tires) in. (mm) |
94.4 (2398) |
|
Width (large wheeled tandem axle 550/45XR22.5 tires) in. (mm) |
98.1 (2492) |
|
Width (large wheeled tandem axle 620/50XR22.5 tires) in. (mm) |
- |
|
Height (single axle) in. (mm) |
123.3 (3133) |
|
Height (tandem axle) in. (mm) |
123.3 (3133) |
