TYPE 4-CYLINDER DIESEL STANDARD 12X12 POWER SHUTTLE | |
BEST-IN-CLASS VALUE CABValue and comfort are not mutually exclusive. The all-weather WORKMASTER™ four-post cab protects you from the elements and is loaded with comfort features not found on other value cabs. | |

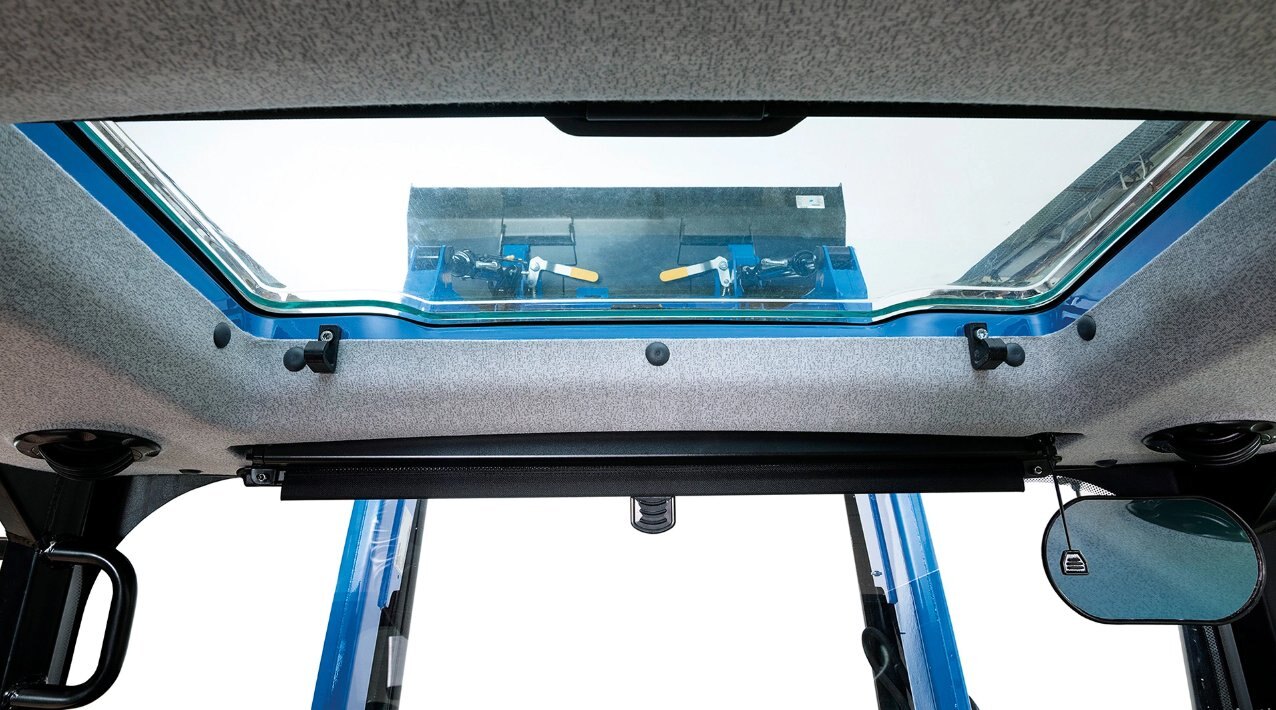

EXCEPTIONAL VIEWEnjoy the added ease and confidence that come with an exceptional view to your work. The WORKMASTER cab boasts 316-degree visibility and an optional high-visibility roof panel, so you can look overhead to a raised loader when stacking or dumping. | |
POWERFULLY EFFICIENTWORKMASTER 95, 105 and 120 tractors are powered by 207-cubic-inch (3.4L), 4-cylinder engines built by Fiat Powertrain Technologies (FPT). These engines are Tier 4B emission compliant, and deliver clean, fuel-efficient power. | |
HIGH-PRODUCTIVITY POWER SHUTTLEThe 12x12 transmission with steering column mounted hydraulic power shuttle provides fingertip access during jobs that require frequent forward-reverse shifting, like loading, grading and mowing. |
POWERFULLY EFFICIENTWORKMASTER™ 95, 105 and 120 tractors are powered by 207-cubic-inch (3.4L), 4-cylinder engines built by Fiat Powertrain Technologies (FPT). These free breathing engines use 4 values per cylinder and a high pressure common rail, direct injected, electronically controlled, fuel system to deliver clean, fuel-efficient power. | |
ECONOMICAL AND TIER 4B EMISSIONS COMPLIANT
| |
PROGRAMMABLE ENGINE SPEED
| |
ONGOING VALUE
|
HIGH-PRODUCTIVITY POWER SHUTTLEThe 12x12 hydraulic power shuttle transmission provides four synchronized gears in three non-synchronized ranges, and a 19-mph (30-kph) travel speed. It is the perfect solution for customers looking for maximum productivity in a utility tractor, or for those who make direction changes often in applications such as loader work. | |

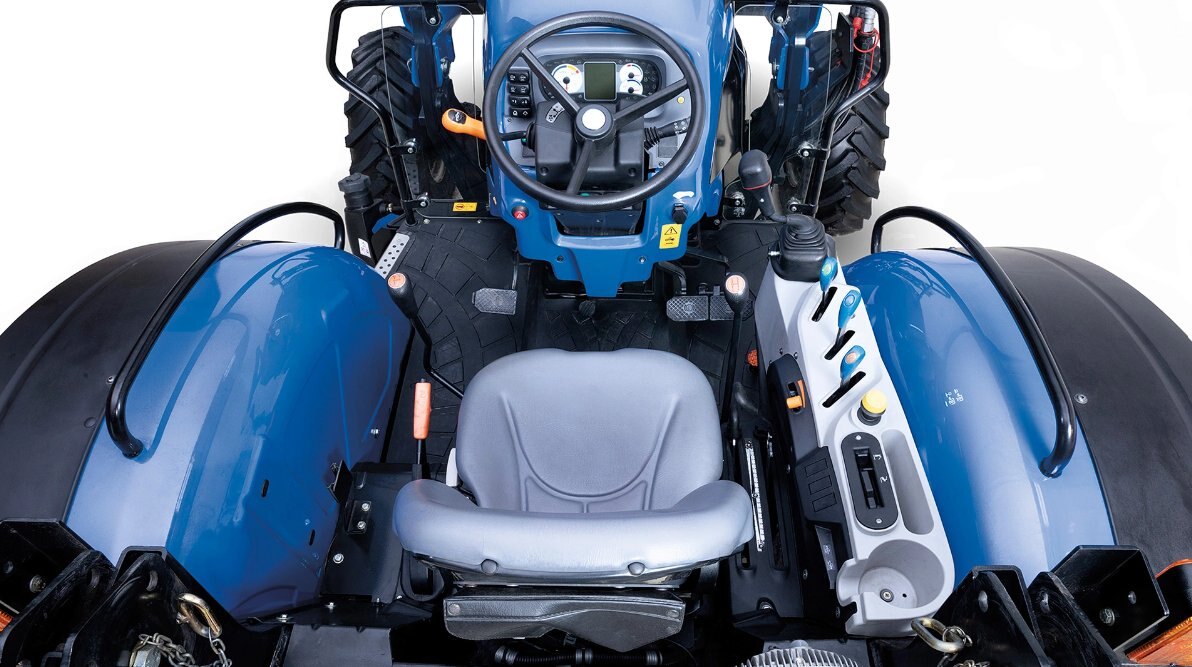

WELL PLACED CONTROLS
| |
CREEPER READY
|

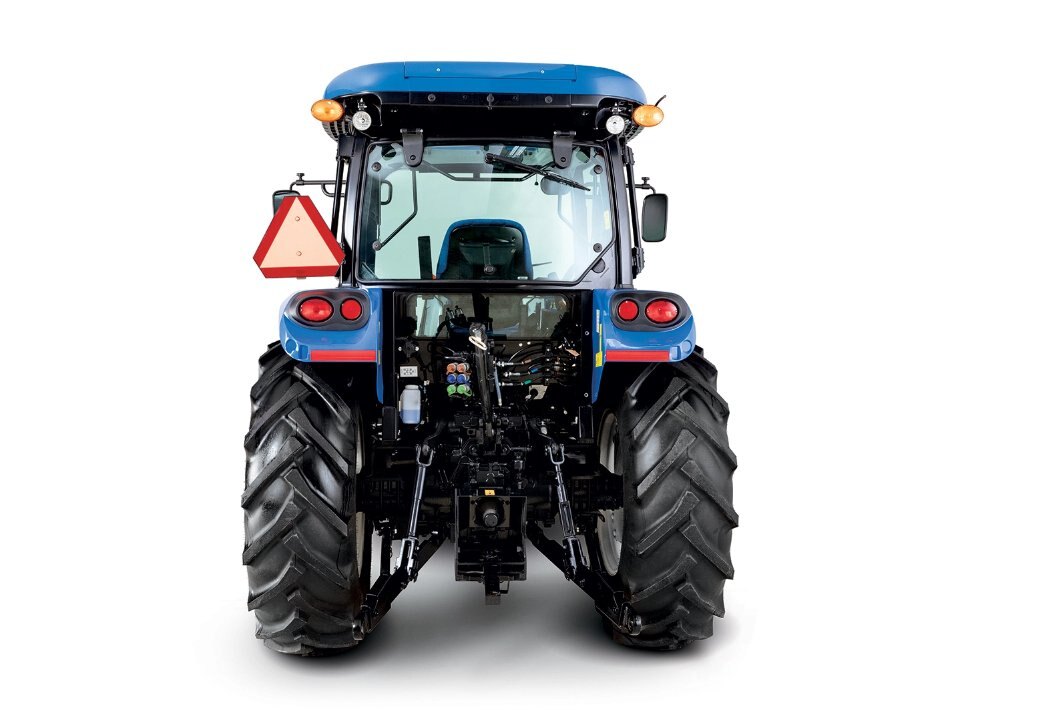

HEAVY-DUTY DESIGN, EASY HOOK-UPA 3,200-pound rear hitch lift capacity allows your WORKMASTER™ tractor to handle large implements while standard draft control allows more efficient use of ground engaging tools. Add the optional auxiliary lift ram to increase capacity to 6,200 pounds. Standard draft control, flexible link ends and telescopic stabilizers make implement hookup a breeze. | |
LIFT-O-MATIC
| |
MORE HYDRAULIC FLOW = BETTER CYCLE TIMES
|
BEST-IN-CLASS VALUE CABValue and comfort are not mutually exclusive. The all-weather WORKMASTER four-post cab protects you from the elements and is loaded with comfort features not found on other value cabs. The wide-entry and flat deck allows for easy entry and exit and provides added foot room. There’s comfortable seating for two with a cloth high-back, air suspension seat and instructor seat that folds back for additional storage when not in use. | |
ALL SEASON COMFORT
| |
WELL PLACED CONTROLS
| |
SEE YOUR WAY TO A SAFER, MORE PRODUCTIVE WORK DAY
| |
INSTRUMENTAL INSTRUMENTATION
| |
A LONG LIST OF STANDARD FEATURES
|
|
Make |
F5 |
|
Type |
4-cylinder diesel |
|
Displacement cu. in. (L) |
207 (3.4) |
|
Gross engine horsepower |
112 |
|
PTO horsepower |
92 |
|
Rated Engine Speed rpm |
2.300 |
|
Emissions Tier 4B |
SCR + CUC |
|
Standard |
12X12 Power Shuttle |
|
Lift capacity @ 24” lbs. (kg.) |
3,200 (1451) |
|
Optional ram @ 24” lbs. (kg.) |
6,200 (2812) |
|
Rear remotes |
2 or 3 |
|
Imp. pump gpm (L/min) |
16.9 (64) / 21.6 (82) |
|
Service pump gpm (L/min) |
9.7 (36) |
|
Base PTO RPM |
540 |
|
Optional PTO |
540/540E |
|
Optional PTO |
540/540E |
|
Weight - Cab/4WD lbs. (kg.) |
8,367 (3795) |
|
Weight - ROPS/4WD lbs. (kg.) |
7,738 (3510) |
|
Minimum height - ROPS pivot in. (mm) |
68.4 (1738) |
|
Minimum height - ROPS pivot in. (mm) |
68.4 (1738) |
|
Minimum height - Seat pivot in. (mm)* |
43.9 (1115) |
|
Minimum height - Seat pivot in. (mm)* |
43.9 (1115) |
|
Overall height - Cab roof in. (mm) |
105.4 (2676) |
|
Overall height - top of ROPS in. (mm) |
103.0 (2617) |
|
Overall length - 4WD in. (mm) |
161.1 (4091) |
|
Wheelbase 4WD in. - Cab (mm) |
88.9 (2260) |
|
Wheelbase 4WD in. - ROPS (mm) |
83.7 (2125) |
