Name: New Holland T6 Series - T6.175 Dynamic Command
Brand: New Holland
Availability: OutOfStock

Back

ID # 28127057

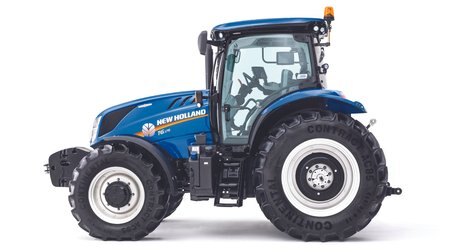

New Holland T6 Series - T6.175 Dynamic Command

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

MAX BOOSTED ENGINE HP

175

RATED ENGINE HP

145

POWERFUL PRODUCTIVITY

Five models ranging from 95 to 126 PTO horsepower are ready to boost your productivity in a wide array of applications including loader work, haymaking, row cropping, and roadside mowing.

TAILORED FOR YOU

Equip a T6 to meet your needs. An endless list of options are available including seats, a 2WD or FWD front axle, and three efficient transmission choices.

COMFORTABLE HORIZON™ CAB

The Horizon™ cab offers exceptionally low noise levels, ergonomic controls, Comfort Ride™ cab suspension, and more for day-long comfort and productivity.

CLEAN ENERGY LEADERS

ECOBlue™ HI-eSCR 2 engine technology provides Stage V emissions compliance and greater fluid efficiency for 25% longer service intervals.

Specifications

Model

T6 Series

Category Name

Tractors

Year

2023

Sale Type

New

Manufacturer

New Holland

engine

POWERFUL. RESPONSIVE. EFFICIENT. T6 Series tractors give you power without compromise with max boosted engine power from 145 to 175 horsepower. These impressive T6 numbers not only look good on paper, they translate into increased lugging power and efficiency to handle your most demanding tasks.
ECOBLUE™ HI-ESCR TECHNOLOGY—ONE SIMPLE SOLUTION T6 engines comply with Stage V emissions standards by using New Holland ECOBlue™ HI-eSCR 2 (High-Efficiency Selective Catalytic Reduction) technology. This after-treatment system allows the engine to breathe clean, fresh air to optimize combustion, torque rise and fuel efficiency.
TORQUE RISE AND RESPONSE THAT OUTPERFORMS PREVIOUS T6 MODELS T6 Stage V engines have some impressive numbers – numbers that not only look good on paper, they translate into increased lugging power and efficiency. T6 engines achieve better performance by maximizing power output from each cylinder. The new engine control unit brings the engine to maximum torque more quickly and holds through the lower RPM longer to outperform former T6 Series engines.
ENGINE POWER MANAGEMENT WITH POWER BOOST T6 engines deliver extra horsepower when under load—a boost above rated horsepower—to get you through tough conditions.
CONSTANT RPM WITH ENGINE SPEED MANAGEMENT In applications where a constant PTO speed is required, just select Engine Speed Management to ensure the speed is maintained even under changing loads. In many applications, this allows you to maintain a fixed forward speed in difficult terrain.
THE SAME TOTAL FLUID CONSUMPTION Even with increases in horsepower, torque and lugging ability compared to previous T6 models, fluid use (Fuel and DEF) remain unchanged.

transmission

CHOICE OF AWARD-WINNING TRANSMISSIONS

New Holland provides you with a wide selection of proven transmissions. Which one is best for you?

The Auto Command™ Continuously Variable Transmission (CVT) (T6.145, T6.165, T6.175, T6.180) is built for the demands of large farms, contractors, or specialized crop operations that log high annual tractor hours completing challenging fieldwork, long-distance hauling and speed-critical applications.

Standard 25 mph (40 kph)
Fast Mover 31 mph (50 kph)

The NEW Dynamic Command™ transmission (all models) is a no-compromise, best-in-class solution for contractors, mixed farms, dairy and hay operations that require a multipurpose tractor for cultivation as well as hauling and transport between locations.

23x23 Standard 25 mph (40 kph)
24x24 Economy 25 mph (40 kph)
24x24 Fast Mover 31 mph (50 kph)
48x48 Creeper Standard 25 mph (40 kph)
48x48 Creeper Economy 25 mph (40 kph)
48x48 Creeper Fast Mover 31 mph (50 kph)

The Electro Command™ semi-powershift transmission (all models) is the perfect match for the materials handling jobs and light fieldwork of livestock, dairy and hay farms. It pairs the benefits of a semi-powershift with an economical price.

16x16 19 mph (30 kph) for 2WD only
16x16 25 mph (40 kph)
17x16 Economy 25 mph (40 kph)
17x16 Fast Mover 31 mph (50 kph)
32x32 with Creeper 25 mph (40 kph)

EFFICIENT AUTO COMMAND™ TRANSMISSION

Quite simply, the Auto Command™ Continuously Variable Transmission (CVT) is the smoothest, easiest to operate, and most productive CVT around. Designed and built by New Holland, Auto Command benefits from multiple direct drive points with 100% mechanical efficiency which have been precision engineered to ensure that they perfectly match the most frequently used speeds during field operation. Advanced double clutch control further enhances efficiency.

GO WITH THE FLOW—OPTIMUM PERFORMANCE WITH BALERS, MOWERS, SNOW BLOWERS AND MORE

Auto Command™ Continuously Variable Transmission (CVT) provides you with infinite speed control for the optimum performance of balers, mower-conditioners, snow blowers and other material flow implements.

SIMPLE OPERATION

Auto Command™ simplifies the operation with four driving modes, Auto, Cruise, Manual or PTO, to ensure optimum operating efficiency and convenience. To change directions, you can either move the CommandGrip™ handle, use the power shuttle switch on the CommandGrip handle or use the steering column-mounted shuttle lever.

DYNAMIC COMMAND™ POWERSHIFT TRANSMISSION

The new industry-leading Dynamic Command™ transmission provides smooth, uninterrupted power and effortless operation. You get a full 24 gears in forward and reverse with speed overlap that allows you to easily select the best range for your application -- with no break in torque as you move through eight gears.

A TRUE POWER SHUTTLE
A dedicated gearbox controls the true power shuttle for faster, more accurate forward/reverse shifting. You can program forward and reverse gears, as well as set the shuttle shift aggressiveness to match your preferences.

ADVANCED FEATURES BOOST PRODUCTIVITY
The Auto Shift option builds on the productivity of the Dynamic Command transmission by allowing you to automatically move through the gears within a range based on engine speed. You also get these productivity-boosting features with the Auto Shift option:

Smart Range Shift: Skip overlap gears when moving between ranges for rapid acceleration.
Dynamic StartStop: No clutching needed for smoother loader work. Simply press the brake and your Dynamic Command tractor comes to a standstill. Release the brake pedal and drive reengages and puts the tractor in motion.
Auto Shift: Automatically shifts within a range so you can pay attention to driving.
Ground Speed Management (optional): Maintains a target ground speed by automatically shifting and throttling up or back based on load.
Kick down: When there's a rapid change in foot throttle position, the engine responds with max power and adjusts the gear to get the best acceleration possible.
Dynamic IntelliShift™: This system analyzes engine speed, transmission shaft speed, ground speed and more for smooth, seamless shifting.
Transport Power Management™: When traveling over 14 mph, this system automatically switches the engine to a power curve that provides more consistent acceleration rates.

ELECTRO COMMAND™ TRANSMISSION

Electro Command™ tractors with mechanical mid-mount valves provide a standard control arrangement with a powershift control button on the range shift handle as well as on the console for convenience. The ergonomic seat armrest-mounted multi-function handle is optional for T6 models with a mechanical mid-mount valve and standard on all other models.

ERGONOMIC POWER SHUTTLE

You can operate the convenient, column-mounted electro-hydraulic power shuttle without taking your hand off the wheel for increased safety during loader work. You can even regulate the shuttle aggressiveness setting, and make changes while on the move. An innovative memory shuttle system allows you to select the ratio you need in forward and reverse and the tractor automatically shuttles between your chosen forward and reverse gears.

hydraulics and 3-point hitch

HYDRAULIC POWER AND FLEXIBILITY

New Holland gives you choices when it comes to the T6 hydraulic system. T6 Value models come standard with a fixed-displacement, closed-center hydraulic system with 21.1 gallon-per-minute (GPM) gear pump and a separate 12.4-gpm steering pump. If you require more hydraulic capability, select the closed-center, load-sensing (CCLS) hydraulic system. It’s standard on Dynamic Command™ models and optional on Plus and Elite models and is ideal for more demanding implements. The system includes a 29.9-gpm variable displacement piston pump for the rear remotes, three-point hitch and loader (if equipped) plus the 12.4-gpm steering pump. T6 models with the Auto Command™ CVT come with a 33-gpm CCLS hydraulic system.

HITCH LIFT CAPACITY FROM 8,388 TO 11,650 POUNDS

Standard lift capacity at the three-point hitch is 8,388 pounds for Value tractors, 9,213 pounds for T6 Plus and Elite tractors and 11,649 pounds for T6 tractors equipped with Dynamic Command™ and Auto Command™ CVT.

UP TO 4 REMOTE VALVES

You can specify your T6 tractor with up to four electronic or mechanical rear remote valves.

CONVENIENT CONTROL

Fender-mounted controls for the rear linkage, rear remote and the PTO are available.

ELECTRONIC DRAFT CONTROL

A single raise/lower switch makes it simple to lift and return an implement to work during a headland turn. New Holland’s ergonomic mouse is positioned just to your right, exactly where you need it, giving you ultimate precision. To fine-tune the system you can use the intuitive controls that are found underneath the armrest.

OPTIONAL FRONT 3-POINT HITCH

For Elite, Dynamic Command™ and Auto Command™ T6 tractors, a fully integrated, factory-fitted front three-point hitch are available, providing a lift capacity of 6,834 pounds.

horizon™ cab

MORE SPACE, BETTER VISIBILITY

Want all-around visibility? That’s what you get with New Holland’s industry-leading Horizon™ cab. Whether you’re around the barn, in the field, or on the road, you have an uninterrupted, productivity-enhancing view.

WORK WITH LESS EFFORT, MORE COMFORT

Operator comfort and ease are directly related to productivity. That’s why T6 Series tractors continue New Holland’s tradition of innovation with features that make your work more comfortable.

DEPEND ON NEW HOLLAND FOR BRIGHT IDEAS

LED work lights are standard equipment on all T6 models, providing exceptional illumination for productivity and safety during after-daylight operation. Value models are equipped with 8 LED lights standard to deliver 15,600 lumens—that’s 77% brighter than the 8 halogen work lights used on previous T6 tractors. T6 Plus, Elite, Dynamic Command™ and Auto Command™ models come standard with 12 LED lights, with up to 16 available to make it more than 3.5 times as bright.

360° VISIBILITY

The name "Horizon cab" is inspired by the exceptional visibility you enjoy from inside. With 63 square feet of glass, you get a great view in all directions. You even get a view through the high-visibility roof panel-perfect for viewing a raised loader bucket. New mirrors and a new instrument cluster add to your visibility and available information.

HORIZON™ CAB: QUIET COMFORT

New Holland has reduced noise levels to as low as 69 decibels. Dual-zone air conditioning keeps you cool on the hottest days. Add Automatic Temperature Control and your T6 tractor maintains the temperature you set. You also get an enhanced instrument panel and your choice of air-suspension seats.

COMFORT RIDE™ CAB SUSPENSION

Select a T6 tractor equipped with optional Comfort Ride™ cab suspension so you enjoy an extra-smooth ride over uneven fields or bumpy roads. This simple mechanical system uses two rubber isolators at the front corners of the cab, a sway bar and two spring-loaded shock absorbers at the rear of the cab.

SIDEWINDER™ II ARMREST

T6 tractors equipped with the Dynamic Command™ or Auto Command™ CVT transmission feature the convenience and added comfort of the SideWinder™ II armrest. The armrest glides forward or back to put controls exactly where you want them. The CommandGrip™ multi-function handle located at the front of the SideWinder II armrest puts the most important controls right at your fingertips, and the optional IntelliView™ IV monitor provides all the information you could need.

COMFORTABLE SEATING

Take your pick of three comfortable seats—the standard comfort seat, the Dynamic Comfort™ seat with enhanced low-frequency suspension or the Auto Comfort™ seat that features leather covering, automatic weight setting, heat and a ventilation system.

INNOVATIVE SWIVELING BACKREST

Both the Dynamic Comfort™ and Comfort seats benefit from an innovative swiveling backrest, designed to provide upper back support which significantly increases comfort when the seat is turned to monitor rear-mounted implements.

technical specifications

Engine Type	Turbo Diesel with High Pressure Common Rail with Electronic Fuel Delivery Control
Make / Model	Fiat Powertrain Technology (FPT) NEF
# of Engine Cylinders	4
Displacement cu. in. (L)	274 (4.5)
Valves per Cylinder	4
Rated Engine Speed rpm	2100
Aspiration	Turbo Charger with Air-to-Air Intercooled
Max Boosted Engine HP	175
Rated Engine HP	135
PTO HP	122
Engine Speed at PTO Speed 540/1000	1969 / 1893
Emissions Certification	Stage V/Final
Stage V Emissions System	ECOBlue™ HI-eSCR 2 System (Selective Catalytic Reduction; After Treatment only)
Diesel Fuel Tank Capacity gal. (L)	Standard Tank - 52.2 Gal (197.2), with Auxiliary Tank - 58.6 Gal (222
DEF (AdBlue®) Tank Capacity gal. (L)	10.4 Gal (39.5)
Service Interval eng. hours	600
Alternator	150 Amp Std. on all models; 200 Amp optional
Battery	1300 CCA
ISO BUS Class 2 (Optional with Plus and Elite, Standard on AC)	Optional
ISO BUS Class 3 (Optional on Auto Command Tractors only)	Optional
Standard – Semi-Power Shift 16x16 mph (kph)	1.41-25 (2.27-40)***
Option 1 – With Creeper 32x32 mph (kph)	0.12-25 (.19-40)***
Option 2 - with AutoShift mph (kph)	1.41-25 (2.27-40)***
Option 3 – Economy w/ AutoShift 17x16 mph (kph)	1.67-25 (2.68-40)
Option 4 – Fast Mover w/ AutoShift 17x16 mph (kph)	1.67-31 (2.68-50)
Standard - 23 X 23 mph (kph)	1.41-25 (2.27-40)
Option 1 - 24 X 24 Economy 40 KPH mph (kph)	1.41-25 (2.27-40)
Option 2 - 24 X 24 50 KPH mph (kph)	1.67-31 (2.68-50)
Option 3 - Creeper for 40 KPH mph (kph)	0.12-25 (.19-40)
Option 3 - Creeper for 40 KPH Economy mph (kph)	0.12-25 (.19-40)
Option 4 - Creepr for 50 KPH mph (kph)	–
Standard Auto Command CVT mph (kph)	–
Optional Auto Command CVT mph (kph)	0.01-25 (.01-40)
Standard Lift Capacity - 80mm rams with 21.1 gpm fixed pump (Value) lbs. (kg)	8338 (3782)
Standard Lift Capacity - 80mm rams with 33.5 gpm CCLS pump (AC) lbs. (kg)	9214 (4179)
Optional Lift Capacity - 90mm rams with 29.9/33.5 gpm CCLS pump (Plus, Elite, AC) lbs. (kg)	11,649 (5284)
Fixed Displacement Implement Pump Flow - Value gpm (l/m)	21.1 (80)
Steering Pump Flow gpm (l/m)	12.4 (47)
CCLS Hydraulic Implement Pump Flow- Plus & Elite gpm (l/m)	29.9 (113)
CCLS Hydraulic Implement Pump Flow- Auto Command gpm (l/m)	33.5 (127)
Deluxe Rear Remote Options (N/A on Auto Command)	2 Mechanical Remotes Standard with 3 and 4 remotes Optional
Electro Hydraulic Rear Remote Options	3 Electro Hydraulic Remotes Standard on AC with 3 & 4 Optional on Elite, 4 on AC
Mid-Mount Valve Options	2 or 3 Mechanical or 2 or 3 Electronic
Heavy Duty Two Wheel Drive (2WD)	Available on all Electro Command Semi-power shift models
Front Wheel Drive (FWD) Axle Class	3 & 4
Option 1	Standard Front Axle
Option 2	Suspended Front Axle
Option 3	Supersteer™ Front Axle
Shipping Weight (Typical Weight, less ballast, Cab FWD)	Subtract 1,234 lbs. (560 kg) if equiped with the optional 2WD
Shipping Weight (Typical Weight, less ballast, Cab FWD): Minimum lbs. (kg)	10,604 (4810)
Shipping Weight (Typical Weight, less ballast, Cab FWD): Average lbs. (kg)	12,555 (5695)
Shipping Weight (Typical Weight, less ballast, Cab FWD): Maximum lbs. (kg)	15,245 (6915)
Maximum Gross Vehicle Weight lbs. (kg)	20,944 (9500)
Dimensions on rear tires (1)	600/65R38
Overall length inc. front linkage to rear linkage in. (mm)	204.3 (5189)
Minimum width in. (mm)	89.8 (2280)
Height at center of rear axle to top of low profile cab in. (mm)	78 (1980)
Height at center of rear axle to top of standard cab in. (mm)	82.7 (2100)
Height at center of rear axle to top of Comfort Ride™ suspension cab in. (mm)	85.2 (2165)
Overall height of low profile cab in. (mm)	110.4 (2805)
Overall height of standard cab in. (mm)	115.2 (2925)
Overall height of Comfort Ride™ suspension cab in. (mm)	117.7 (2990)
Wheelbase: Standard 4WD axle in. (mm)	104 (2642)
Wheelbase: Terraglide™ suspended axle in. (mm)	105.7 (2684)
Wheelbase: SuperSteer™ axle in. (mm)	109.8 (2788)
Track width (min. / max.) in. (mm)	64.3 / 84 (1634 / 2134)
Ground clearance in. (mm)	18.8 (478)

literature

Name	Link
T6 Series - Stage V - Brochure	Download
Technical specifications	Download
