ID # 28054131

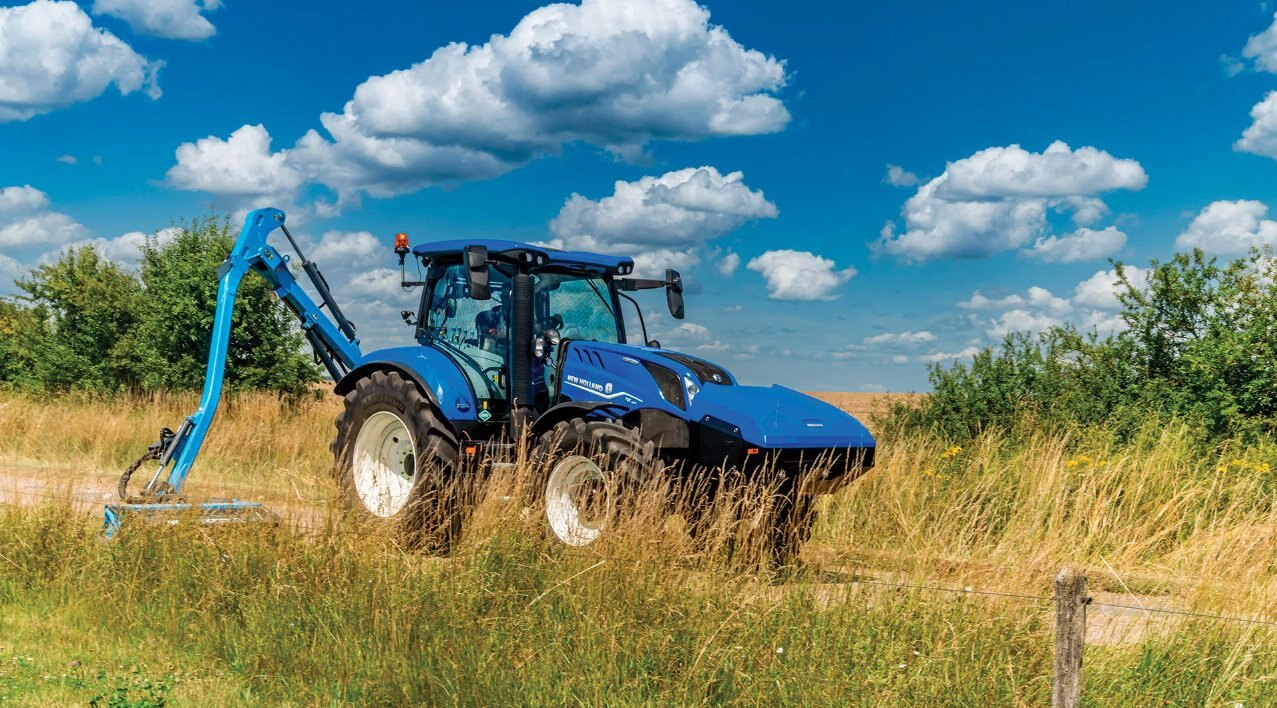

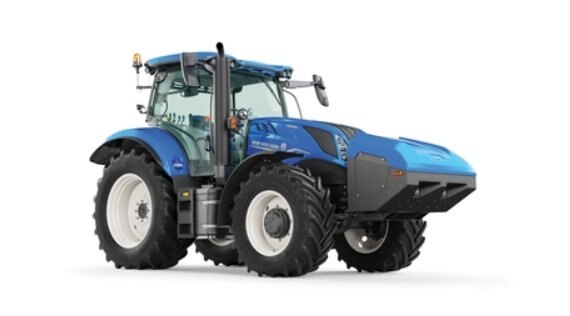

New Holland T6.180 Methane Power

  • New Holland T6.180 Methane Power
  • New Holland T6.180 Methane Power
  • New Holland T6.180 Methane Power
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

MAX BOOSTED ENGINE HP

175

RATED ENGINE HP

145

FUEL FLEXIBILITY

Become energy self-sufficient by using biomethane from your biodigester or compressed natural gas (CNG) as fuel.

TRUE SUSTAINABILITY

98% less particulate matter was produced compared to European Stage V emission limits. With biomethane, a 10 to 15% reduction in CO2 is achieved.

PROVEN ENGINE TECHNOLOGY

FPT Industrial has over 20 years of experience and produced over 50,000 natural gas engines to date.

SAME PERFORMANCE. GREATER SAVINGS.

Same power, torque and durability as its diesel counterpart, but with an estimated 30% reduction in running costs.

POWERED BY NATURE

A promising concept is now a production-ready reality. The T6.180 Methane Power tractor marks a first in the industry, designed to minimize emissions while maximizing your profitability and productivity with unimpeded performance. Farms with a biodigester can take the next step in becoming energy self-sufficient by producing biomethane to power the tractor, which in turn can help cultivate crops or tend to livestock. For others, this tractor is a logical addition to constantly expanding fleets of compressed natural gas (CNG) vehicles to further reduce emissions footprints.



Specifications
Download Specs
Model
T6.180 Methane Power
Category Name
Tractors
Year
2023
Sale Type
New
Manufacturer
New Holland
engine

SAME PERFORMANCE AS DIESELNew Holland T6.180 Methane Power

A 6.7L, 6-cylinder engine provides the same torque and maximum boosted engine horsepower as its diesel counterpart, but with quieter operation, less vibration, and an estimated 30% reduction in running costs to further enhance your bottom line. This engine is compatible with biomethane and compressed natural gas (CNG), utilizing stoichiometric combustion that was pioneered in 1995 for clean combustion and low emissions. Gas injectors and spark plugs replace the diesel injector, with gas being injected into each cylinder for constant, clean combustion.
New Holland T6.180 Methane Power

PROVEN TECHNOLOGY

Engine provider, FPT Industrial, is a leader in natural gas powertrain technology, with over 20 years of experience and 50,000 natural gas engines produced to date.
New Holland T6.180 Methane Power

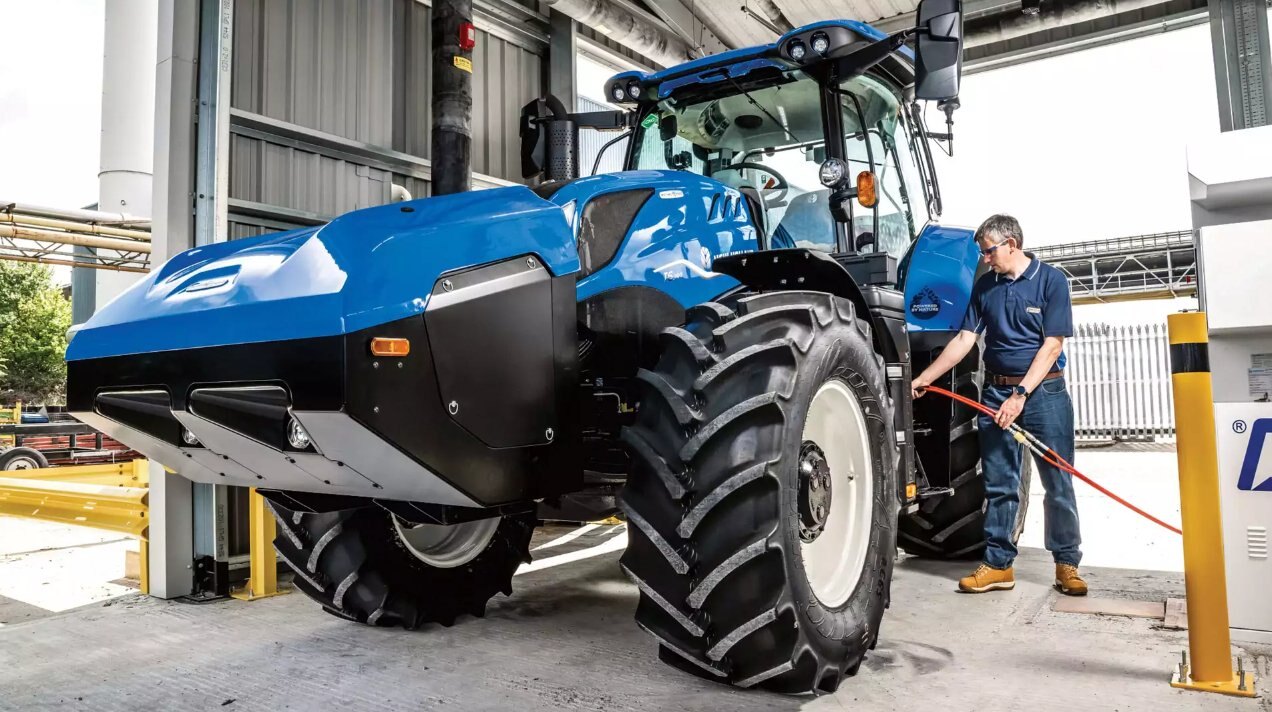

FUEL FLEXIBILITY

For flexibility with your operation, both biomethane and CNG can be utilized as fuel. Multiple fuel tanks provide 49 gal. (185L) of capacity standard. These tanks are conveniently filled with a single port located on the left side of the tractor between the step plates. To monitor fuel pressure, a gauge is located beside the fuel port while two test ports can be found on the front and rear of the tractor. For extended periods between fill-ups, the front-mounted range extender offers an additional 71 gal. (270L) of fuel capacity with a bolted connection to a port on the front of the tractor.

New Holland T6.180 Methane Power SIMPLE EMISSION SYSTEM

A simple, maintenance-free 3-way catalyst is used for after-treatment, eliminating the need for exhaust gas recirculation (EGR) and selective catalytic reduction (SCR) components, as well as diesel exhaust fluid (DEF). For you, this means unobstructed visibility, consistent engine performance, and greater savings to your bottom line.
New Holland T6.180 Methane Power

A GAME CHANGER

The greenest your farm can be is with a blue tractor. Compared to emission limits allowed under European Stage V emissions regulations, the T6.180 Methane Power tractor produces 98% less particulate matter, 90% less non-methane hydrocarbons, 75% less carbon monoxide, and 62% less nitrogen oxides. When running biomethane, a 10% to 15% reduction in CO2 is achieved for a negative emission profile.



transmission

GEARED FOR YOU

To reduce fatigue, the Electro Command™ semi-powershift transmission offers you clutchless gear changes. Equipped with AutoShift™ means that shifting is taken care of for you within each range. For extensive roading, choose the 31-mph (50-kph) transmission to speed up travel between fields or jobs, or select the Economy transmission that operates at reduced engine speed to enhance fuel economy.

Transmission offering:

  • 16x16 semi-powershift with AutoShift, 25 mph (40 kph)
  • 17x16 Economy semi-powershift with AutoShift, 25 mph (40 kph)
  • 17x16 Fast Mover semi-powershift with AutoShift, 31 mph (50 kph)
  • 32x32 semi-powershift with AutoShift and Creeper, 25 mph (40 kph)

AUTO MODES FOR COMFORT AND PRODUCTIVITY

New Holland T6.180 Methane PowerEasy to set up and truly effective, Auto Transport and Auto Field modes can reduce the effort required to operate the T6.180 Methane Power tractor over a long working day. With Auto Transport, the tractor shifts like an automatic vehicle. Auto Field mode manages both the engine speed and transmission to optimize performance and economy. In PTO applications where a constant engine speed is the priority, the system will select the transmission ratio to match the load on the engine. In draft applications, the engine speed is allowed to drop to fully exploit the available torque rise before selecting a lower ratio under load conversion of over 95%, all while guaranteeing low fluid consumption.

EFFICIENT MULTI-FUNCTION HANDLENew Holland T6.180 Methane Power

The ergonomic armrest-mounted multifunction handle falls perfectly to your hand, which is ideal for frequent gear changes.

ERGONOMIC POWER SHUTTLE New Holland T6.180 Methane Power

A column-mounted electrohydraulic power shuttle lets you make easy directional changes without taking your hand off the steering wheel. The innovative memory shuttle system saves you time by speeding up cycle times. First, select the ratio you need in forward direction, shuttle, then shift to your desired reverse ratio. From now on, the tractor will automatically shuttle between your selected forward and reverse gears. You can also regulate the aggressiveness setting with the switch of a button. Select soft for general field work, standard for daily tasks or the aggressive position for near instantaneous direction changes during loader work. Even better, you can adjust the setting while on the move.



horizon™ cab

YOUR VIEW OF PRODUCTIVITY

The Horizon™ cab provides you with day-long comfort and productivity. The already exceptionally low 69-decibel noise level further benefits from an engine that is five decibels quieter during operation with less vibration compared to its diesel counterpart. A generous 63 square feet of glass and a high-visibility roof panel deliver superior all-around visibility.

CONTROLLED CAB CLIMATE

New Holland T6.180 Methane PowerThe heating and air conditioning system features dual-zone technology to guarantee high performance in even the hottest summers and coldest winters. Operators can individually position up to 12 vents to control the airflow for ultimate comfort or super-fast windshield defrosting. Control knobs fall perfectly to hand and can be intuitively adjusted while on the move. Add the Automatic Temperature Control feature to automatically maintain the temperature you set for ultimate convenience.

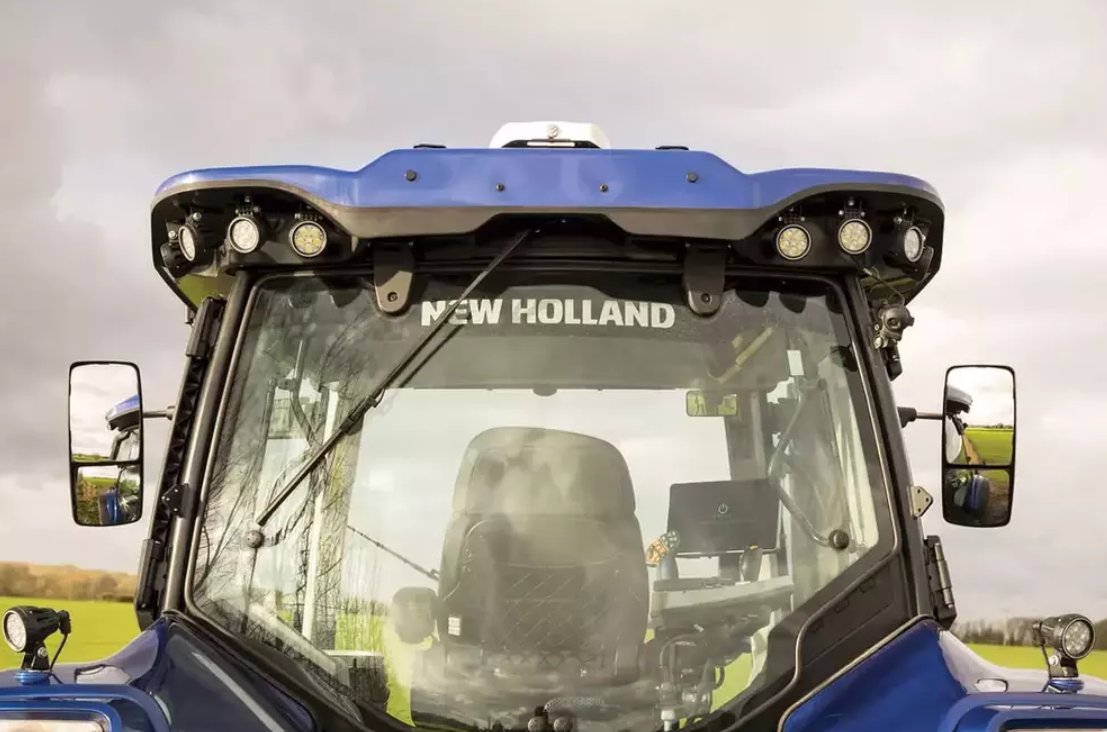

LIGHTING THE WAYNew Holland T6.180 Methane Power

Bright LED work lights are standard equipment. A flexible lighting package option offers you the choice of up to 16 LED work lights that are bright and energy efficient.

COMFORT RIDE™ CAB SUSPENSION New Holland T6.180 Methane Power

Equip a T6 Methane Power tractor with Comfort Ride™  cab suspension to enjoy an extra-smooth ride over uneven fields and bumpy farm lanes. This simple mechanical system uses two rubber isolators at the front corners of the cab, and a sway bar with two spring-loaded shock absorbers at the rear of the cab.



front axle

TERRAGLIDE™ FRONT AXLE SUSPENSION

The Terraglide saddle-type suspension is standard equipment for T7 with PLM Intelligence™ tractors. It provides three levels of ride control to absorb the shocks while providing precise steering control for road haulage tasks.

LARGE-DIAMETER TIRESNew Holland T6.180 Methane Power

With tires up to 81 inches (2.1 m) on the T7 Long Wheelbase models and 85 inches (2.15 m) on the T7 Heavy Duty, these tractors have little trouble transmitting all their torque down to the ground and offering a large footprint for reduced soil compaction.

ADVANCED TRACTION MANAGEMENTNew Holland T6.180 Methane Power

The New Holland Terralock™ system is well established. The operator simply selects the traction package needed for a specific application. Terralock will then engage and release the differential locks automatically. During a headland turn or moving from work to transport, Terralock will ensure the differentials and four-wheel drive are unlocked without operator intervention.

CUSTOMSTEER™ VARIABLE RATIO STEERING OPTIONNew Holland T6.180 Methane Power

To reduce the steering input when turning in the field or yard, CustomSteer can adjust the steering ratio, reducing the number of turns to obtain full lock. You can even set a different ratio in reverse for backing trailers.



hydraulics ＆ 3-pt hitch

MEGAFLOW™ 58 GPM OF OIL FLOW

Available with a torrential oil flow of 45 GPM (170 lpm) on the T7 Long Wheelbase models and 58 GPM (220 lpm) on the T7 Heavy Duty models. MegaFlow delivers the flow required by an implement at a lower engine speed. It’s another fuel-saving T7 with PLM Intelligence™ feature.

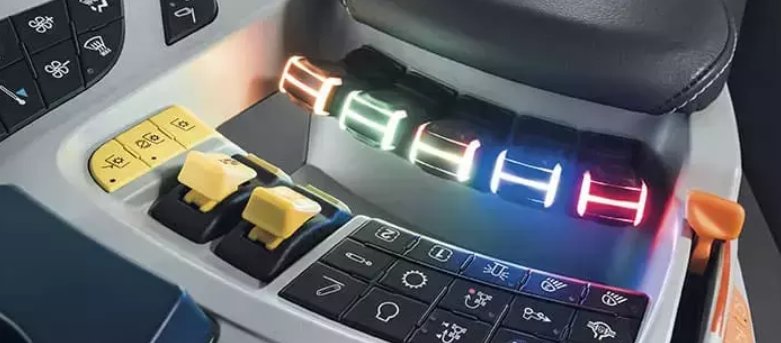

CONFIGURABLE REMOTE LEVERSNew Holland T6.180 Methane Power

Five fingertip-operated remote valve levers are configurable to any valve on the tractor. Innovative LED color-coding clearly identifies the valve under control.

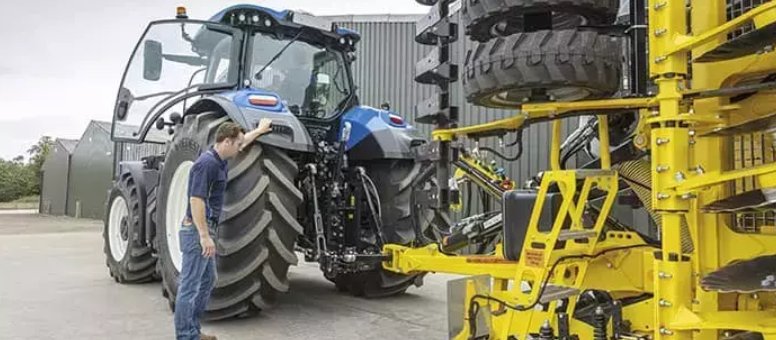

THREE-POINT LINKAGE LIMITS

Toward the rear on the right side of the armrest are the three-point hitch limit settings and four configurable controls. These can be assigned for different functions, such as a rear hydraulic top link. Controls are located for easy adjustment when you’re looking back at the implement.

SMART FENDER CONTROLSNew Holland T6.180 Methane Power

For additional safety and convenience, the rear fender control can now include an engine stop function, the ability to switch between stored engine speeds and a hydraulic control that’s configurable to any service.



precision land management

WELCOME TO THE WORLD OF INTELLIGENT FARMING

The T7 with PLM Intelligence™ is designed to strengthen and reinforce the bonds you’ve built within your operation and community, bringing together the people and innovations that make modern agriculture possible.

  • Customer-to-Vehicle Connectivity- allows you to run your farm business from the cab, the farm office or the other side of the world.
  • Dealer-to-Vehicle Connectivity- helps you minimize downtime with proactive support, remote monitoring, diagnostic, and in-field software updates.
  • Advisor-to-Vehicle Connectivity- lets you stay in touch with agronomists and other experts to improve decision-making.

A NEW LEVEL OF CONNECTIVITY AND PRODUCTIVITY.New Holland T6.180 Methane Power

T7 with PLM Intelligence™ tractors provide the ability to share information with your preferred providers, perform diagnostics remotely and make data-driven decisions related to your operations—all from any location and all designed to help you successfully manage your farm, fleet and data. You’ll accomplish more in a single day, work smarter and more efficiently, and enjoy a superior level of control and management of your entire fleet.

THREE FACTORY-FITTED GUIDANCE PACKAGESNew Holland T6.180 Methane Power

When ordering your T7 with PLM Intelligence™ tractor, you can choose between three different levels of guidance capability. This means that your tractor will arrive direct from the factory with the receiver unlocked to an accuracy level that best fits your operation. If your needs change, a receiver can be unlocked to a higher capability.

  • Level 1 is a low-level accuracy that will work with WAAS and PLM 1.
  • Level 2 unlock allows use of PLM 2 and PLM 3 accuracy subscriptions.
  • Level 3 unlock allows up to sub-1” accuracy with RTK and PLM RTK+ and will also work with VRS and CORS.

Lower-level accuracies will also work on machines unlocked to higher capability, meaning you could still run WAAS on a Level 3 unlocked machine.

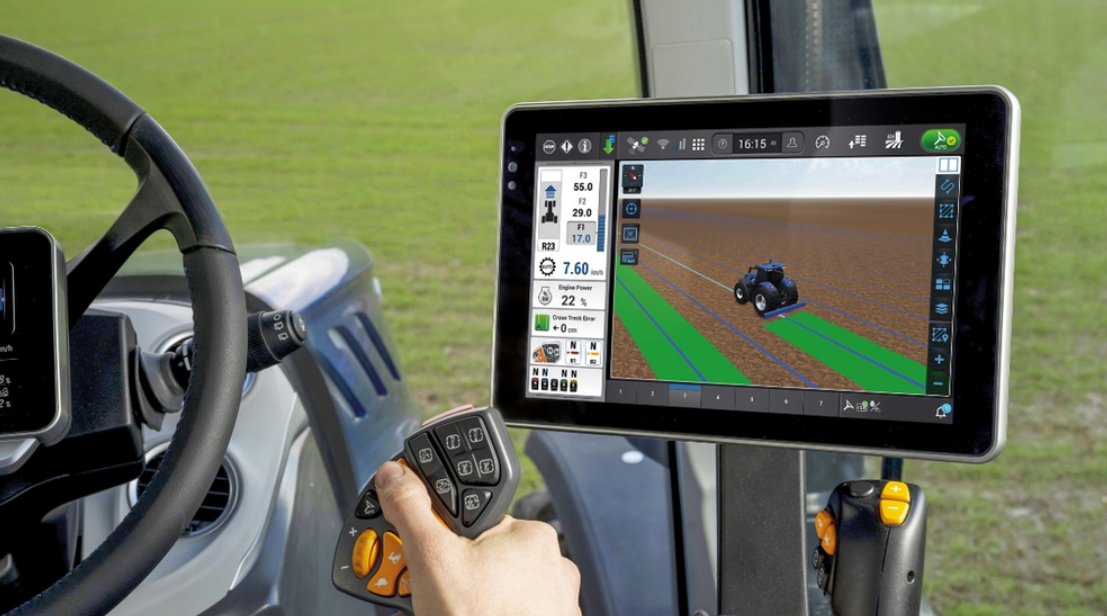

FULLY INTEGRATED INTELLISTEER™ AUTOGUIDANCENew Holland T6.180 Methane Power

T7 with PLM Intelligence™ tractors are optional with IntelliSteer autoguidance for hands-free steering, and accuracy as precise as sub-inch to help you better maximize productivity and efficiency. Choose the accuracy level that best matches your needs and select from a variety of field patterns to match any shape field.

REMOTE SERVICES TO KEEP YOU CONNECTEDNew Holland T6.180 Methane Power

With PLM Intelligence™ you don’t always have to be in the cab of the tractor to see what the operator is seeing. You can remotely view the IntelliView™ 12 display from wherever you might be. The PLM Intelligence platform connects your farm, fleet and data to help you make well-informed decisions. No matter where they are, a farm manager or dealer can easily see exactly what the operator is seeing on the IntelliView 12 display screen in the cab.

REMOTE SERVICE SUPPORTNew Holland T6.180 Methane Power

There’s no time for downtime. Now you can work with your local New Holland dealer to remotely diagnose maintenance and service issues to identify parts you need to stay up and running.

REMOTE SOFTWARE UPDATESNew Holland T6.180 Methane Power

Update your vehicle's operating software wirelessly to take advantage of new features, functionality and enhancements.

PLM™ CYGNUS RECEIVERNew Holland T6.180 Methane Power

The new PLM Cygnus Receiver delivers improved machine position thanks to its integrated terrain compensation technology. It also enables quicker convergence times, as well as enhanced reliability in challenging conditions such as when working in valleys and in heavily forested areas.



technical specifications

Make / Model

Fiat Powertrain Technology (FPT) / NEF N67 NG

Cylinders

6

Displacement cu. in. (L)

411 (6.7)

Valves Per cylinder

4

Rated Engine Speed rpm

2200

Aspiration

Turbocharged with air-to-air intercooled

Max Boosted Engine HP

175

Rated Engine HP

145

PTO HP

126

Emissions Certification

Stage V

Emissions System

3-way catalyst

Fuel Compatibility

Biomethane or Compressed Natural Gas (CNG)

Fuel Capacity gal. (L)

49 (185) Standard / + 71 (270) with optional front-mounted range extender

Alternator

150 Amp standard / 200 amp optional

Battery

1300 CCA

ISOBUS Class 2

Optional

Standard – 16x16 Semi-Powershift with AutoShift™ mph (kph)

1.41-25 (2.27-40)

Optional – 17x16 Economy Semi-Powershift with AutoShift mph (kph)

1.67-25 (2.68-40)

Optional – 17x16 Fast Mover Semi-Powershift with AutoShift mph (kph)

1.67-31 (2.68-50)

Optional – 32x32 Semi-Powershift with AutoShift™ and Creeper mph (kph)

0.12-25 (.19-40)

Standard Lift Capacity – 90 mm rams lbs. (kg)

11,649 (5284)

CCLS Hydraulic Implement Pump

29.9 (113)

Rear Remote Options

2 Mechanical remotes standard / 3 or 4 mechanical remotes optional

Mid-Mount Valve Options

2 or 3 Electrohydraulic

Front Wheel Drive (FWD) Axle Class

3 or 4

Standard

Standard front axle

Optional

Terraglide™ suspended front axle optional

Maximum Gross Vehicle Weight lbs. (kg)

20,944 (9500)

Wheelbase in. (mm)

104 (2642) – Standard front axle / 106 (2694) – Terraglide™ front axle

Length in. (mm)

179 (4540) – Front (no weights) to rear lift arm / 221 (5623) – With front range extender to rear lift arm

Height (min – max) in. (mm)

111 – 118 (2830 – 3005) – Top of standard cab with high roof / 112 – 119 (2850 – 3025) – Top of suspended cab with high roof

Width (fender to fender) in. (mm)

85 (2170) – Narrow fenders / 93 (2350) – Wide fenders / 97 (2474) – Wide fenders with extensions

Ground clearance (min – max) in. (mm)

18 – 21 (445 – 542) – Below front axle / 22 – 27 (560 – 685) – Below front range extender
