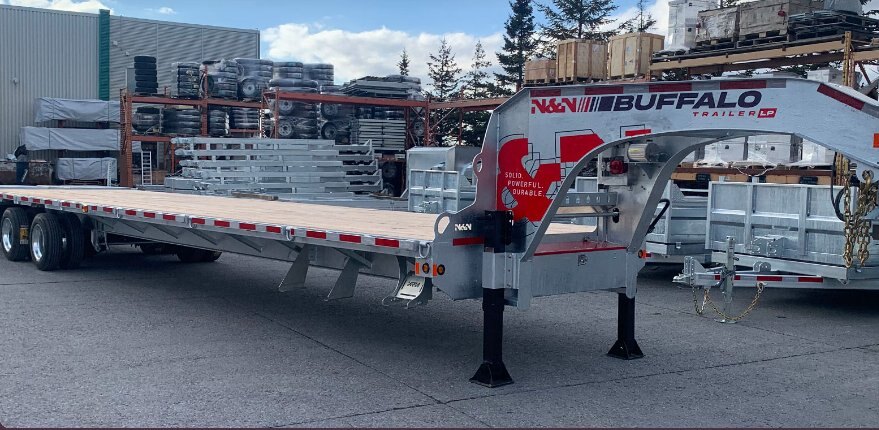

THE BUFFALO MAX TRAILER
(24K, 30K)

Need ruggedness on the job? Our gooseneck trailer gets the job done right. For those tough working conditions, we’ve designed a trailer that’s made for playing rough! Our Buffalo Series (24K, 30K) gooseneck trailer is sure to be your ally for years to come.

Our versatile Buffalo Max trailer

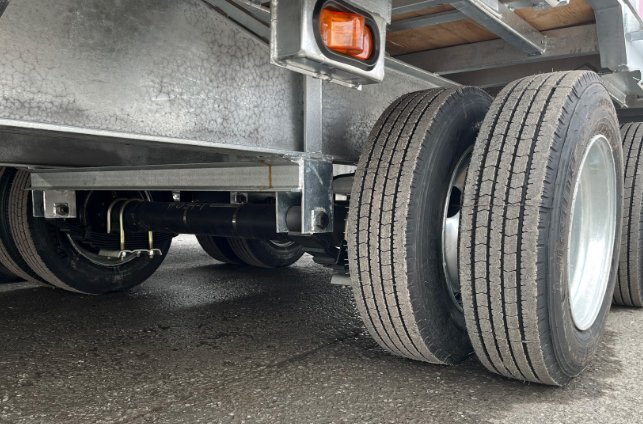

Choose between two available double-wheel (tandem) axle options:
2 x 12,000 lb. on 235-80R16 14-ply, 110 PSI steel-belted tires
2 x 15,000 lb. on 215-75R17.5 16-ply, 125 PSI
Gross vehicle weight rating of 30,000 lb. for the two available axle options.

Low-floor trailer

This trailer is a sound investment with the floor’s 37 inches of ground clearance. It makes for easier loading, and you’ll have greater stability on the road.

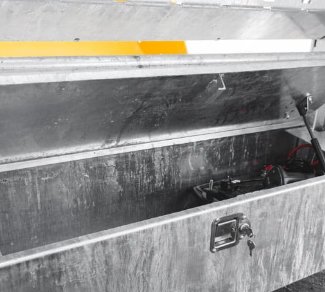

Optional: 16″x18″x48″ N&N storage box

Choose a practical and sturdy 16″x18″x48″ N&N storage box to securely store tools and equipment under the Buffalo Max trailer. Ideal for maximizing storage space and enhancing trailer functionality for demanding tasks.

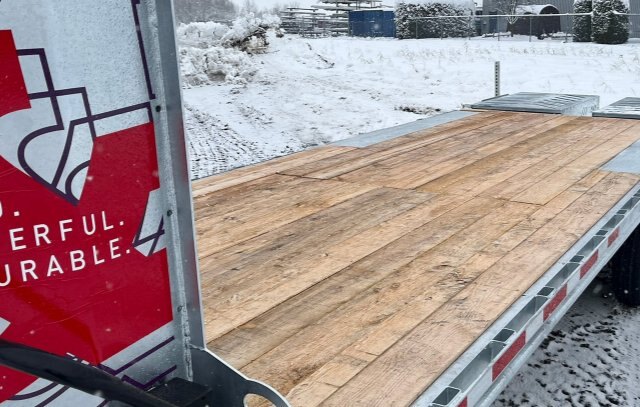

The manufacturing flexibility of our flatbed trailers

Equipped with a 5-foot rear dovetail, our Buffalo Max flatbed is available in multiple floor lengths (20, 22, 25, 27, or 30 feet), to meet your specific needs. Contact your retailer for a custom-designed flatbed length.

Bolt-deck: an ergonomic option for your trailer

Available soon on the Buffalo Max flatbed! Bolt deck easily added even after the purchase of your trailer. Ultra-resistant and durable floor built of hemlock wood. The 6 ft. by 8 ft. dimensions of the bolt-deck will help you maximize your load.

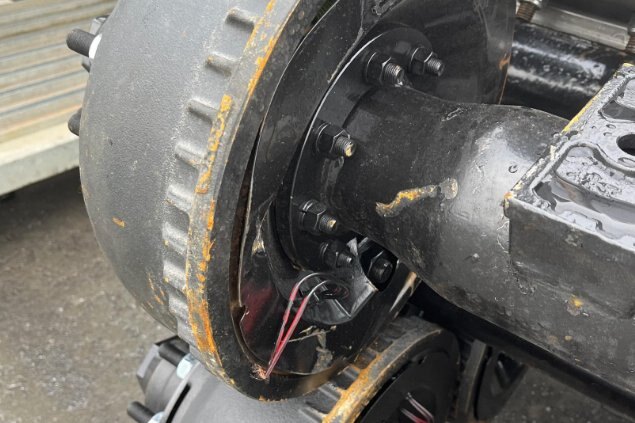

Standard electric brakes, for a safe trailer

Electric brakes come standard on the Buffalo Max (24K, 30K) flatbed trailer. Rest assured of a safe ride on your daily commute to work!

Optional electrohydraulic brakes for your flatbed

Opt for electrohydraulic brakes with reliable 1,000 PSI actuator. Superbly‑designed to meet high quality standards. Brake safely in the most difficult of conditions.

3-inch Dexter suspension

Our Buffalo Max (24K, 30K) flatbed is available standard with 3-inch Dexter suspension and slipper springs. It’s available with 38-inch (less than one metre) or 48-inch (more than one metre) axle spacing for reduced weight.

Rugged flatbed frame

Our very rugged frame, built with a regular 12-inch (19 lb./foot) H-beam and 37-inch ground clearance will give you the ability to transport more, while offering the stability you want from a Buffalo Max (24K, 30K) gooseneck trailer.

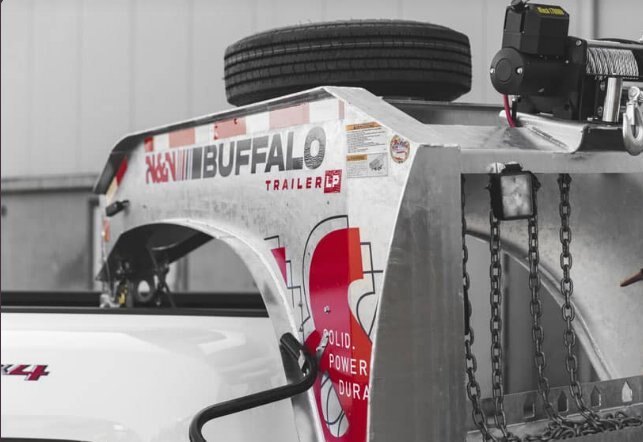

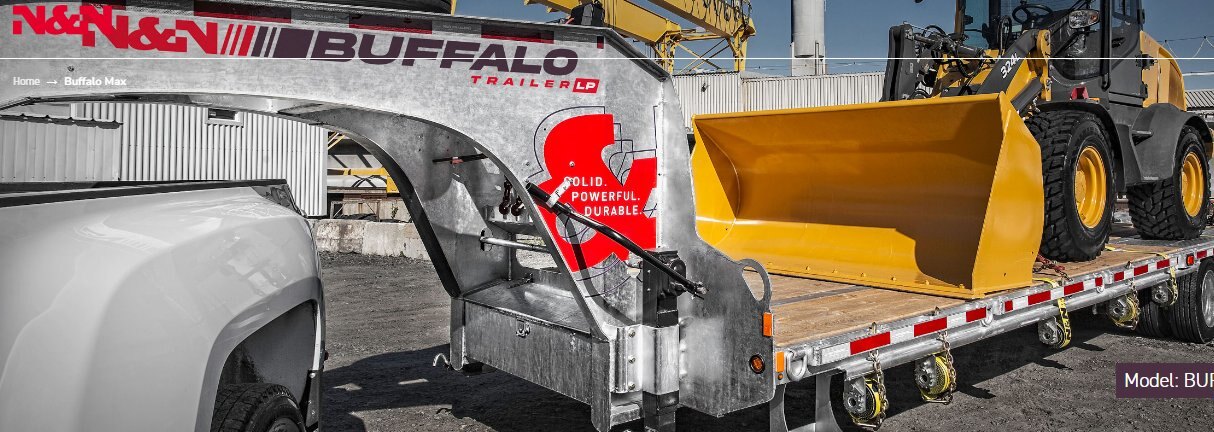

Monoblock gooseneck for greater load capacity

With its light, tough monoblock gooseneck, the Buffalo Max flatbed easily hauls everything, providing a higher load capacity of 10,000 to 28,000 lb.
