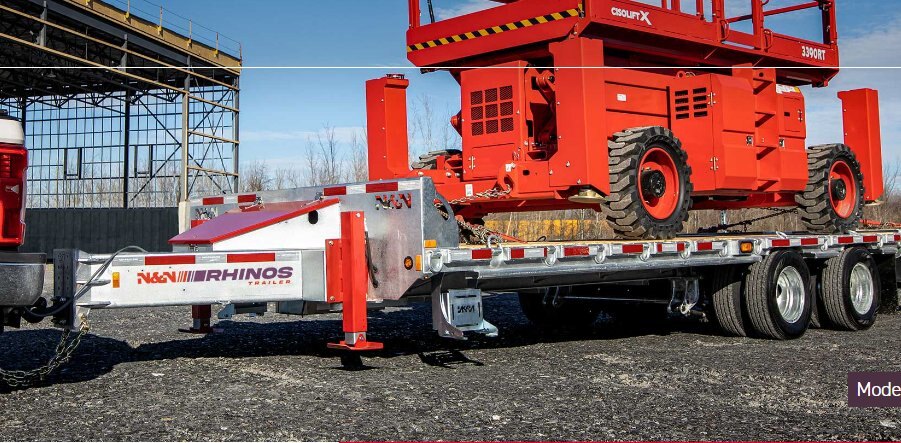

The Rhinos Max trailer
(24K, 30K)

Need power and space on the job site? This is the Rhinos Max trailer, built to meet your needs. For those times when you need to haul large quantities of gear or heavy machinery, this is your industrial-capacity, industrial-quality trailer. Tough, perfectly customized to your needs, the Rhinos trailer (24K, 30K) hitches to your towbar, and frees up all the space in your truck box.

Flexibility

Equipped with a 5-foot rear unloader, our Rhinos trailer is offered in various floor lengths to meet your specific needs (20, 22, 25, 27 or 30 feet). Contact your retailer for a made-to-measure floor length.

Optional: 16″x18″x48″ N&N storage box

The ultra-sturdy 16″x18″x48″ N&N storage box provides secure storage under the Rhino Max trailer. Perfect for safely storing equipment during transport, this box seamlessly integrates to enhance the trailer’s performance and durability.

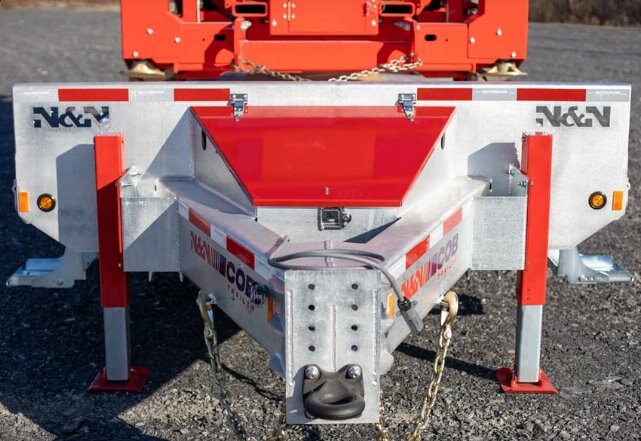

Storage space on the towbar

The Rhinos Max (24K, 30K) meets your storage needs! It comes standard with a huge storage box on the towbar. Easy-to-access and tough, you’ll be able to store many tools, chains, and tie-downs in the box.

Timeless design

The N&N Trailers Rhinos trailer sets itself apart from its competitors. Its design, robust galvanized steel structure and hemlock floor give it a tough look that stands the test of time. The Rhinos trailer also features an ergonomic design, with its single-piece front end built on the mortise and tenon technique.

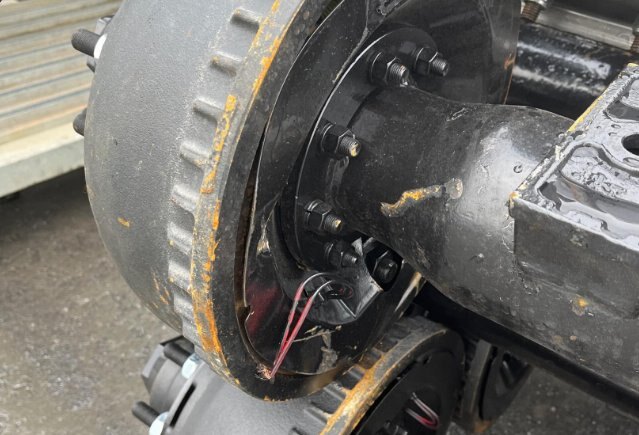

Standard electric brakes

Electric brakes come standard on the Rhinos Max (24K, 30K) flatbed trailer. Rest assured of a safe ride on your daily commute to work!

Optional electrohydraulic brakes

Opt for electrohydraulic brakes with reliable 1,000 PSI actuator. Superbly‑designed to meet high quality standards. Brake safely!

3-inch Dexter suspension

Our Rhinos Max (24K, 30K) flatbed trailer is available standard with 3‑inch Dexter suspension and slipper springs. It’s available with 38‑inch (less than one metre) or 48‑inch (more than one metre) axle spacing for reduced weight.

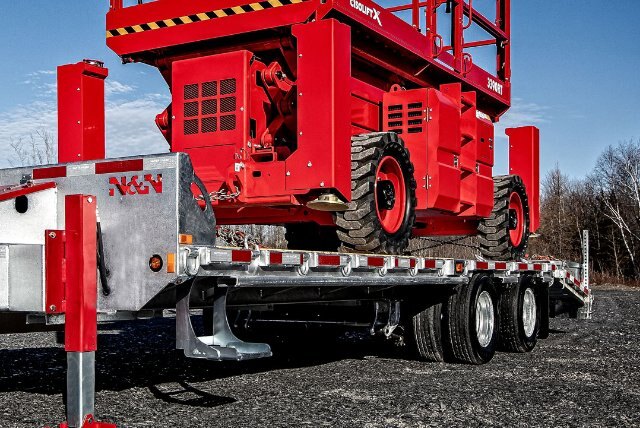

Rugged frame

Our very rugged frame, built with a regular 12-inch (19 lb./foot) H-beam and 37-inch ground clearance will give you the ability to transport more, while offering the stability you want from a Rhinos Max (24K, 30K) flatbed trailer.

Versatility

Choose between two available double-wheel (tandem) axle options:
2 x 12,000 lb. on 235-80R16 14-ply, 110 PSI steel-belted tires
2 x 15,000 lb. on 215-75R17.5 16-ply, 125 PSI
Gross vehicle weight rating of 30,000 lb. for the two available axle options.

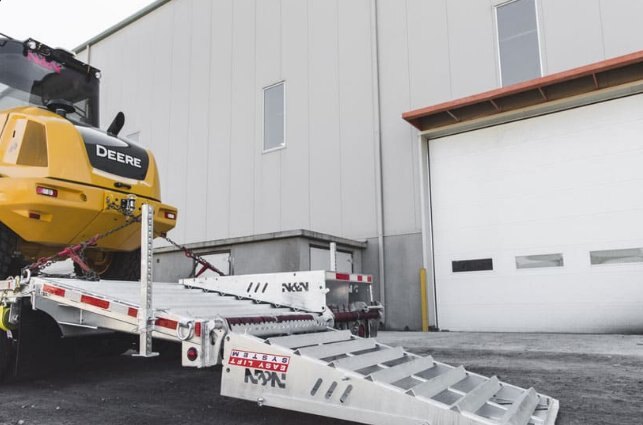

Easy to use

Say goodbye to backaches with the Easy Lift System ramp, standard on the Rhinos trailer. This light and exceptionally sturdy ramp is the most balanced model on the market.
