Overview

Montag Auto Steer Carts Auto-Steer Carts

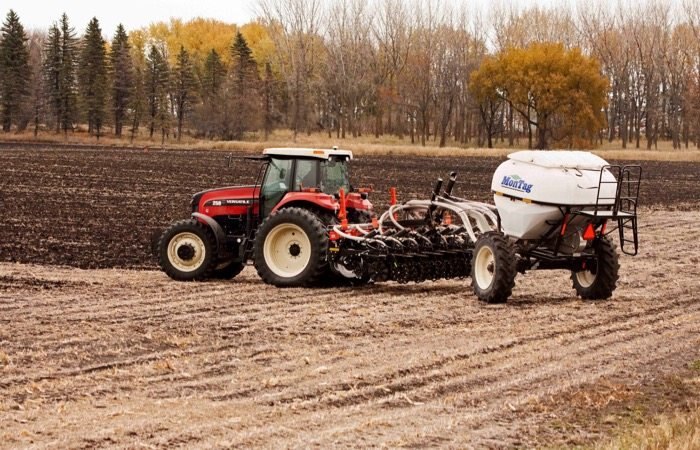

Our complete fertilizer application system helps you reap the benefits of deep band fertilizer; it adapts to most applications when liquid or dry fertilizer banding is preferred. Our high capacity, auto steer fertilizer cart “steers” itself to precisely follow in the tracks of any implement, thereby staying off your rows. Designed to band granular fertilizer, it can be used in any application such as fall, spring or side dress using liquid or dry fertilizer.
Specifications
Model
Auto-Steer Carts
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
Montag
features

Montag Auto Steer Carts Mechanically Steerable Cart

  • Patented steering system allows for tighter turns and less crop damage.

  • Controlled traffic patterns.

Montag Auto Steer Carts Simple & Clean Design

  • Fewer wear points to maintain.

  • Built to survive in harsh fertilizer conditions.

  • Heavy replaceable bronze bushings in king-pin and arm-pin.

Montag Auto Steer Carts 12-ton model carts are available with both wheel and track option

  • With the track option, you can better control your field compaction.

Montag Auto Steer Carts Durability of design and heavy duty tie-rods connect the frame to the steerable axle

  • Fewer pivot points reducing annual maintenance.

  • Long life with fewer break-downs.

https://www.montagmfg.com/wp-content/uploads/Auto-Steer/Image_12_cart.jpg Rear Hitch Option

  • Assists in pulling the anhydrous tank around the corner while keeping it close to the toolbar.

  • Aids anhydrous tank in following in the track of what is pulling it.

  • Tow up to 1500-gallon NH3 tank.

https://www.montagmfg.com/wp-content/uploads/Auto-Steer/Image_08_cart.jpg New gooseneck arm design for 2017

  • Adds an additional 7+ inches of adjustment allowing the cart to operate on a wider range of 3-point toolbars.
options

Tire options are available in:

  • 6 Ton Cart – 420/85 R34” tires (16.9 x 34”)

  • 6 Ton Cart – 320/90 R46” tires (12.4 x 46”)

  • 6 Ton Cart – 380/85 R34” tires (14.9 x 34”)

  • 6 & 12 Ton Carts – 380/90 R46” tires (14.9 x 46”)

  • 6 & 12 Ton Carts – 480/80 R42” tires (18.4 x 42”)

Montag Auto Steer Carts Available in 2 sizes

  • 6 and 12 Ton

Montag Auto Steer Carts Adjustable Wheel Base

  • Axle extensions available from 120” – 160”

Montag Auto Steer Carts Metric Cart

  • Available with a 2.8 meter (or 280cm) wheel base for 70cm rows

Montag Auto Steer Carts Hitch Mounts

  • 2-5/16” ball mount for easy hook up

  • Knuckle hitch allows for a greater range of motion from 30-50 degrees

Montag Auto Steer Carts CAMSO Tracks

  • Available in 16” or 18” for 12-ton cart.

Montag Auto Steer Carts Drift Assist Steering

  • Can be added to any gooseneck arm cart.

  • Allows the operator to adjust the tracking of the cart on side hills.
