Hitch

• 2″ Coupler – Single Axle Models
• 2-5/16″ Coupler – Tandem Axle Models
• 2,000 lb. Top Wind Jack wSand Pad
• Safety Chains

Axle

4′, 5′, 6′, 7′ Wides

• 4′ Wide SA Models – 2,900 lb. Spring Idler Axle
• 5′ – 7′ Wide SA   Models – 3,000 lb. Spring Idler Axle
• SAE Models – 3,500 lb. Spring Brake Axle
• TA2 Models – 3,500 lb. Spring Brake Axles

8.5′ Wides

• TA2 Models – 3,500 lb. Spring Brake Axle
• TA3 Models – 5,200 lb. Spring Brake Axle

Tires and Rims

• ST205/75D15 Bias wWhite Wheels on 2,900 lb., 3,000 lb, and 3,500 lb. axles
• ST225/75R15 Radial wWhite Wheels on 5,200 lb Axles

Frame

• 24″ On Center Floor, Roof, and Walls
• Note: 16″ On-Center Floor with TA3 Axles and Up
• 18″ Wedge Nose
• Undercoated Frame

Side Door – All Doors with NO Step

4′, 5′, 6′, 7′ Wides

• 4′ Wide – No Side Door
• 24″ Door wBarlock on 8′ Long Models”
• 32″ Door wBarlock on Other 5′ & 6′ Wide Models
• 36″ Door wBarlock on 7′ Wide Models

8.5′ Wides

• 36″ Door wBarlock on 16′ and Shorter Models
• 48″ Door wBarlock on 18′ and Longer Models

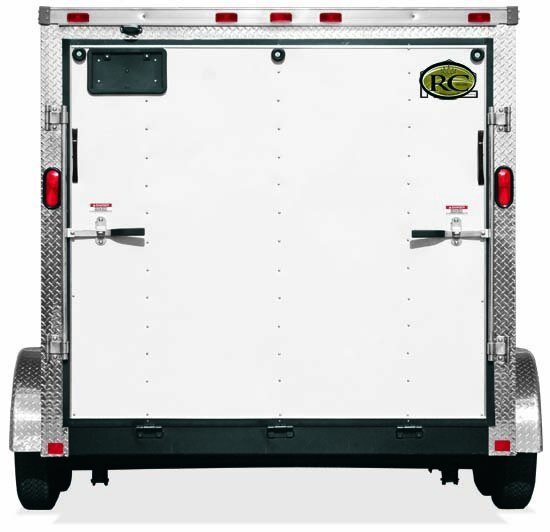

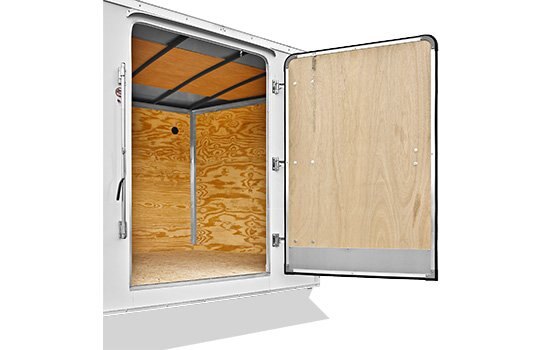

Rear Door

• 4’ – Single Door
• 5’ – Single Door – Double Door – *Light Duty Ramp Door
• 6’ – Double Door – *Light Duty Ramp Door
• 7’ – Double Door – *Light Duty Ramp Door
• 8.5’ – Double Door – 3,000 lb. Ramp Door
• *Light Duty Ramp Door has a 1,000 lb. capacity.

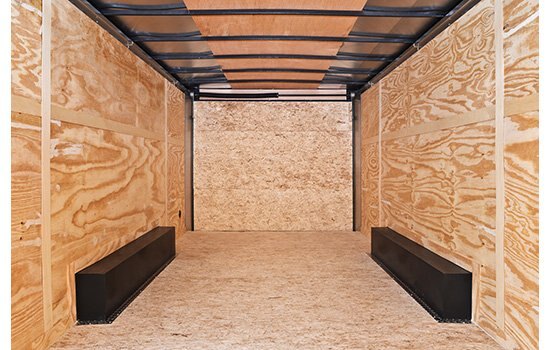

Interior

• 3/4″ Engineered Wood Flooring
• 3/8″ Plywood Walls Trimmed with Lauan

Interior Heights

• 4′ Wides – 4′
• 5′ Wides – 5′-6″
• 6′ Wides – 6′
• 7′ Wides – 6′
• 8.5′ Wides – 6′ 6″

Exterior

• Flow-Thru Sidewall Vents
• .030 Exterior Metal
• Inverted ATP Stoneguard
• Galvanized Steel Roof
• Mill Finish Rear Corners and Header
• ATP Fenders
• 1-1/2″ Lower Trim
• 3″ Top Rail

Electrical

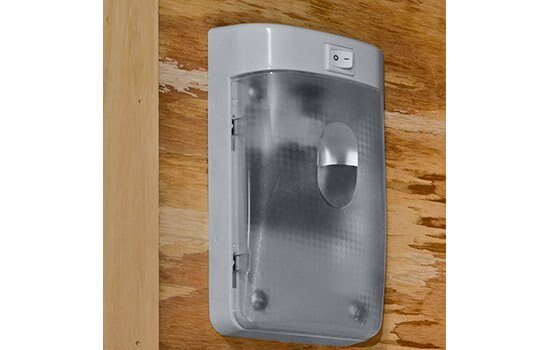

• (1) 12-Volt LED Dome Light
• 4-Way Plug on Idler Axles
• 7-Way Plug on Electric Brake Axles
• Breakaway Box, Battery, & Switch
• LED Strip Tail Light/Brake Lights, Surf Mounted
• LED Surface Mounted Clearance Lights
