Manitou

ID # 24532600

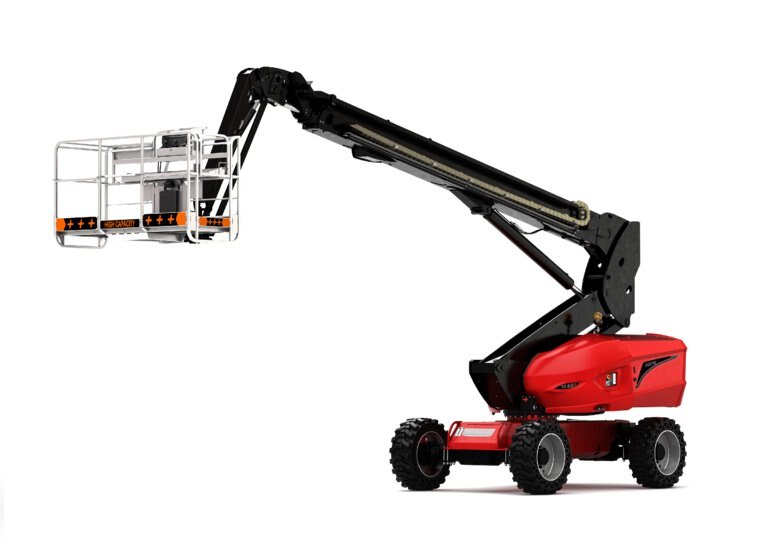

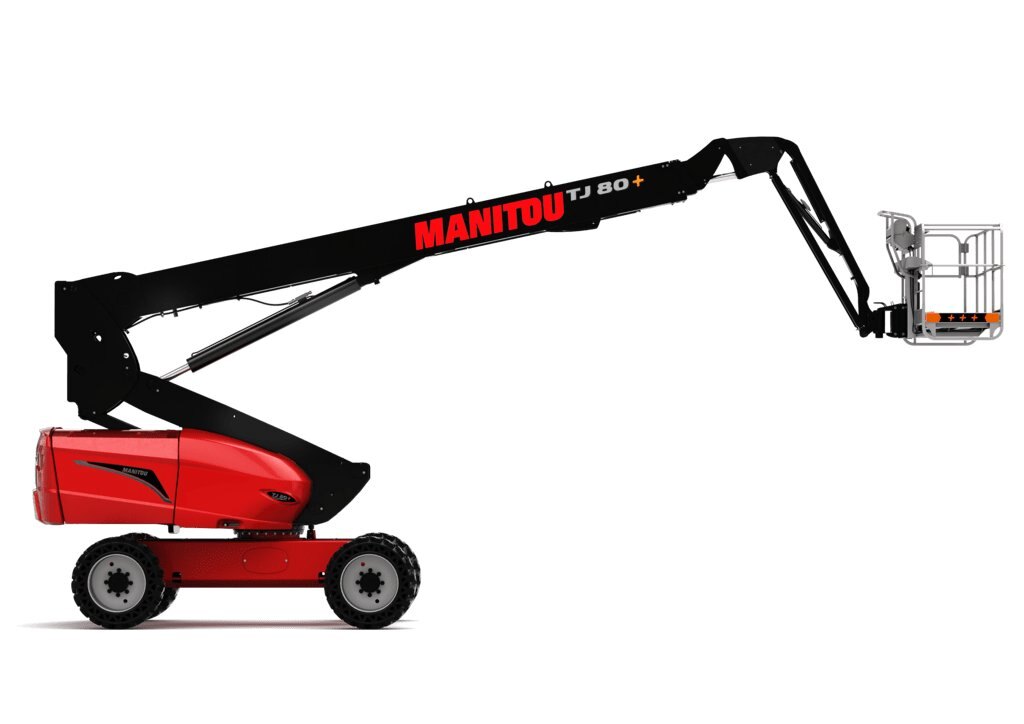

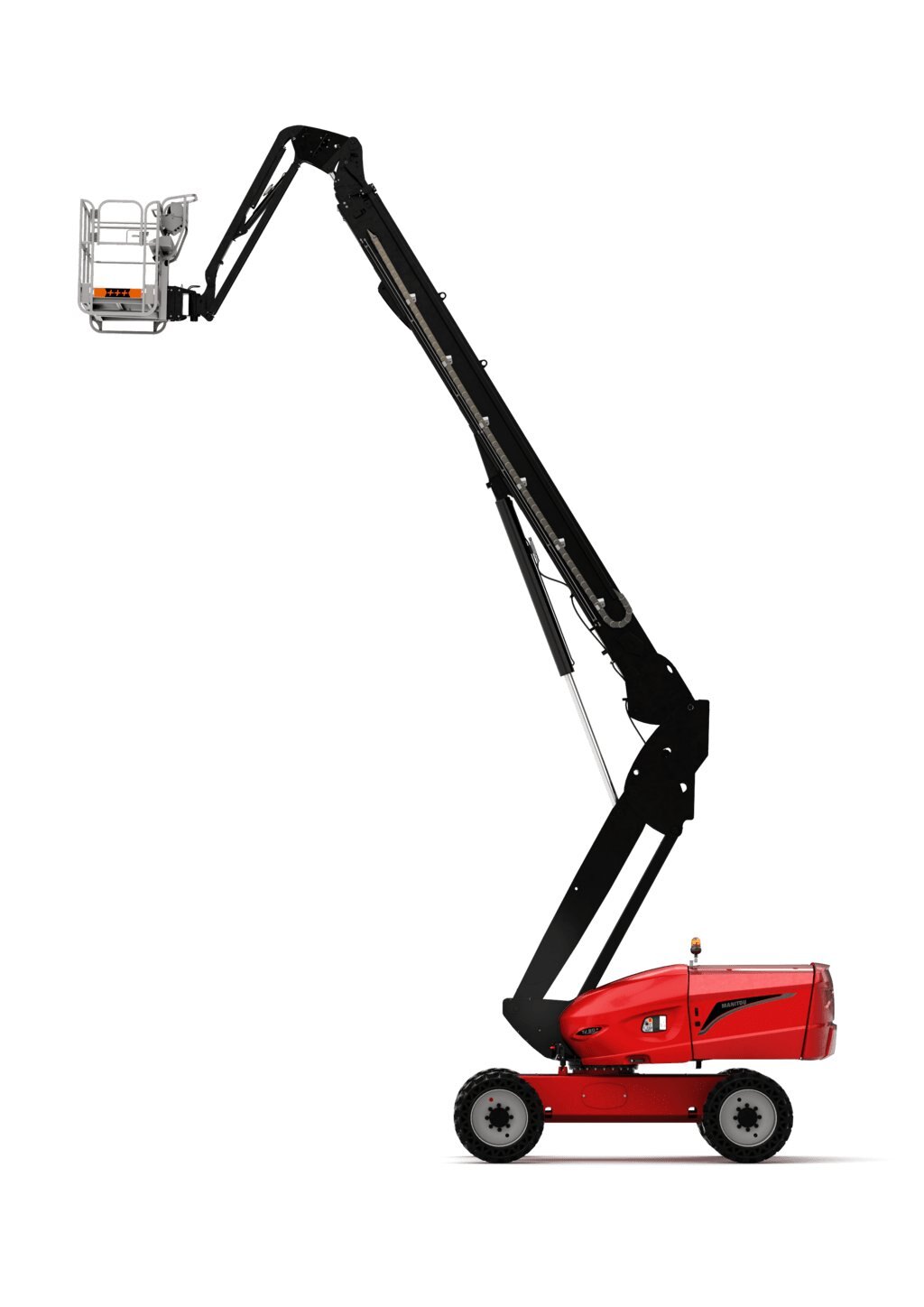

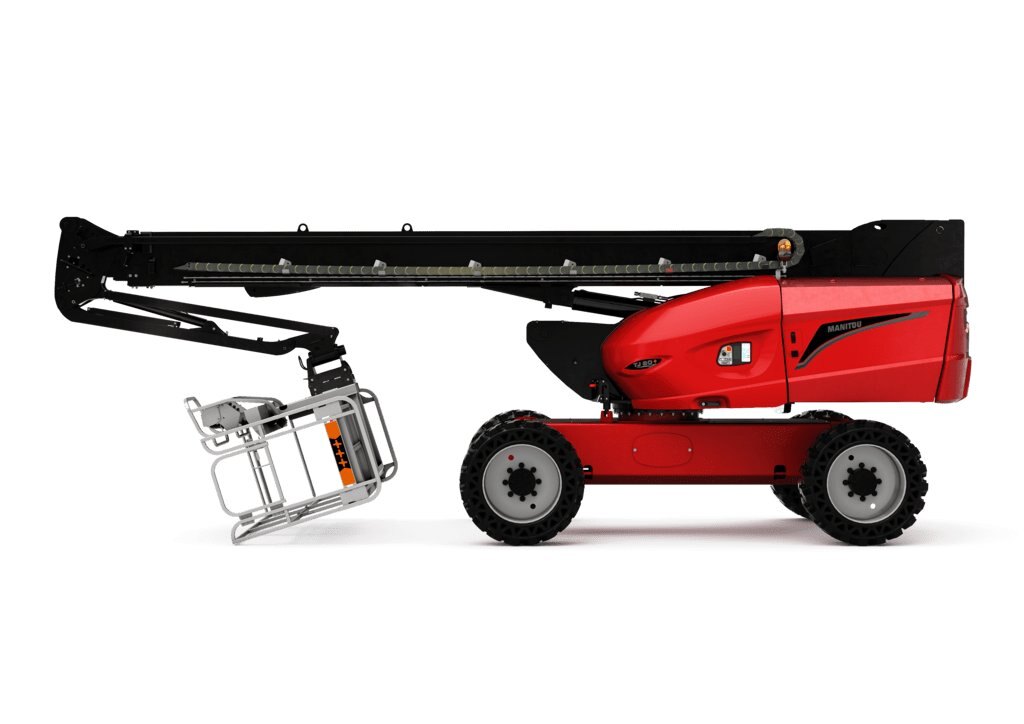

Manitou TJ 80+

Call for Price
Overview

Take advantage of the performance of the TJ 80+ telescopic MEWP! This latest aerial work platform meets all your requirements in terms of off-road capability, strength, power and security. With the telescopic mast and compact structure of the machine, you can work easily in the tightest spaces. The advantages of the TJ 80+ make it an ideal lifting solution to work daily on the jobsite: robust design, continuous 360 degree rotation, 4 wheel steering, transmission bridges, extra platform capacity of 400 kg ... Optimize your work at height and improve productivity each day!

Specifications
Model
TJ
Category Name
Equipment
Year
2023
Sale Type
New
Manufacturer
Manitou
capacities
Max. Outreach
19.70 m
Working Height
25.72 m
Platform Height
23.89 m
Turret Rotation
360 °
Platform Capacity
408 kg
Platform Rotation (right / Left)
90 ° / 90 °
Number Of People (inside / Outside)
3 / 3
Pendular Arm Rotation (top / Bottom)
+-63 °
weight and dimensions
Wheelbase
2.80 m
Jib Length
2.40 m
Overall Width
2.48 m
Overall Height
2.71 m
Overall Length
10.84 m
Platform Weight*
16305 kg
Floor Height (access)
0.40 m
External Turning Radius
4.35 m
Overall Height (stowed)
2.80 m
Overall Length (stowed)
7.88 m
Internal Turning Radius (over Tyres)
1.97 m
Platform Dimensions (length X Width)
2.30 m x 0.90 m
Counterweight Offset (turret At 90°)
1.43 m
Ground Clearance At Centre Of Wheelbase
0.41 m
performances
Gradeability
40 %
Drive Speed - Raised
0.80 km/h
Drive Speed - Stowed
4.70 km/h
Permissible Leveling
4 °
wheels
Tyres Type
Solid Tyres Cured-On
Drive Wheels (front / Rear)
2 / 2
Braking Wheels (front / Rear)
2 / 2
Steering Wheels (front / Rear)
2 / 2
Dimensions Of Front Wheels / Rear Wheels
1,02 x 0,36 - 1,02 x 0,36
engine
Engine Norm
Stage V
Engine Brand / Model
Kubota - D1803-CR-TIE4B
I.C. Engine Power Rating / Power (kW)
36.98 kW / 37 kW
miscellaneous
Fuel Tank
72 l
Ground Pressure
21.30 dan/cm2
Hydraulic Pressure
400 bar
Hydraulic Tank Capacity
94 l
Vibration On Hands/arms
< 0.50 m/s²
standards compliance
This Machine Is In Compliance With:
ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
