Manitou

ID # 24532589

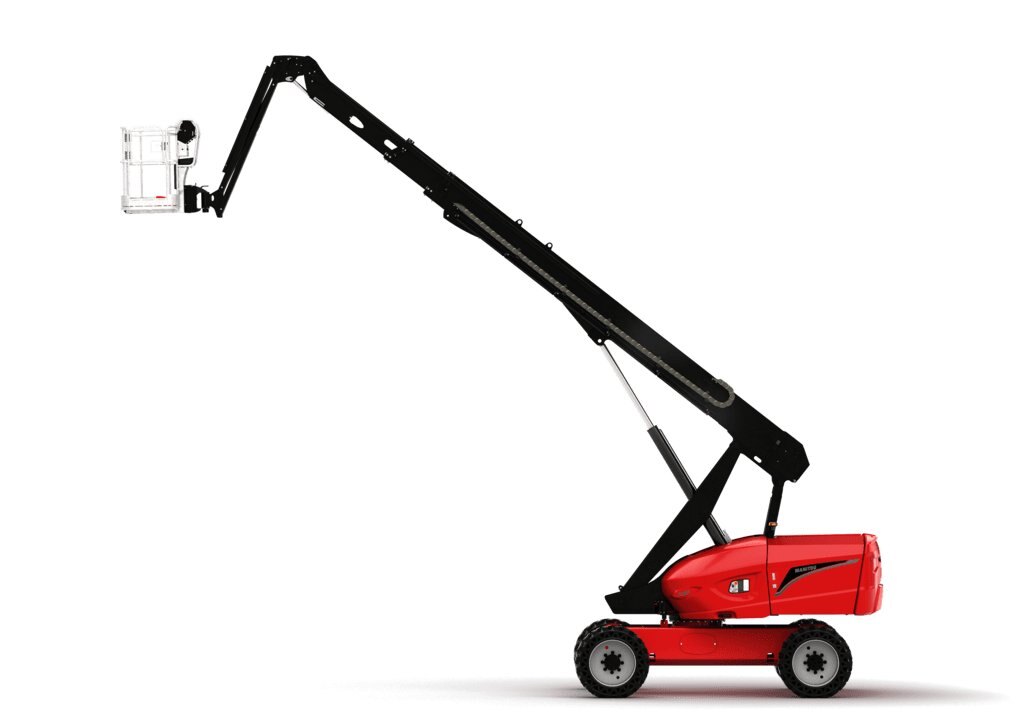

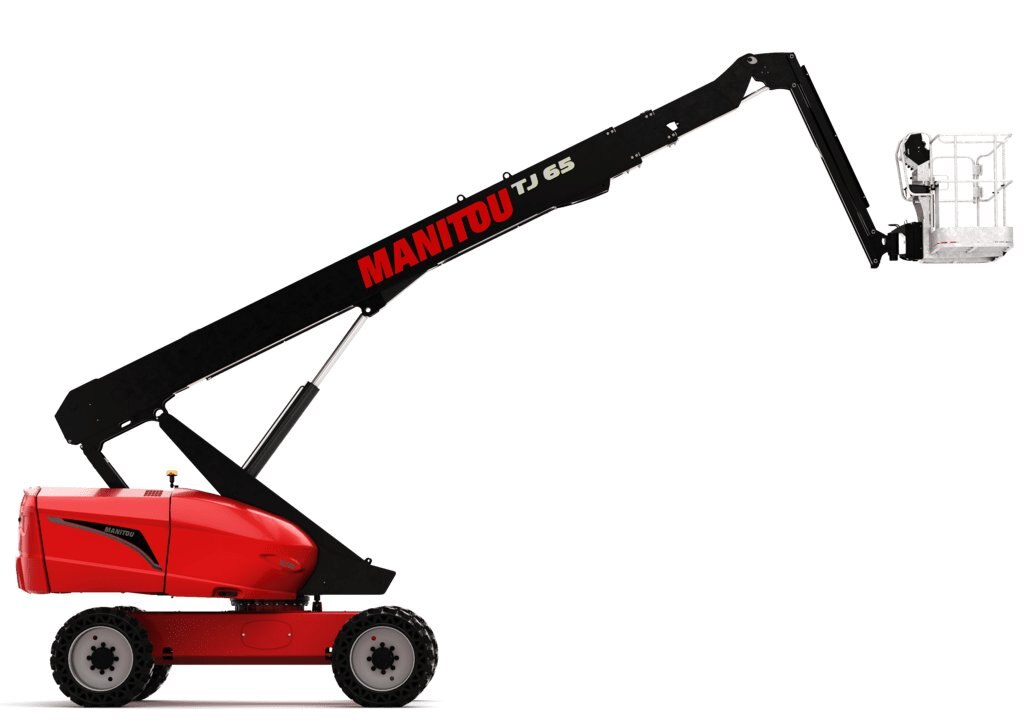

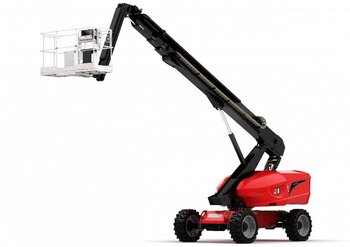

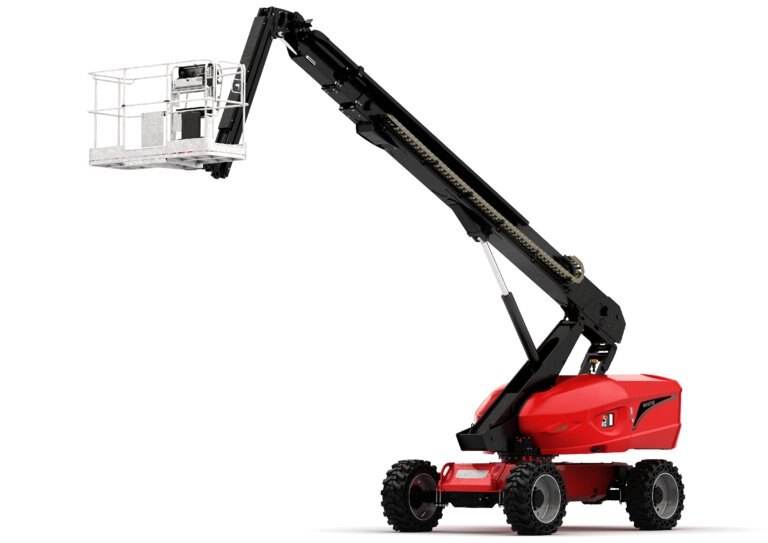

Manitou TJ 65

Call for Price
Overview

Enjoy the performance of the TJ 65 telescopic boom lift! This Manitou machine has all the features needed to secure your handling operations in height: 360 degree continuous rotation, negative jib rotation, front and rear wheel steering, and max offset of 17.63 m. Featuring an all-terrain structure, the TJ 65 allows you to easily move on all types of soils, including rough terrain, uneven or muddy. Optimize your work at heights with our innovative telesopic mobile elevating work platforms.

Specifications
Model
TJ
Category Name
Equipment
Year
2023
Sale Type
New
Manufacturer
Manitou
capacities
Overhang
4.80 m
Max. Outreach
17.63 m
Working Height
22 m
Platform Height
19.77 m
Turret Rotation
360 °
Platform Capacity
227 kg
Platform Rotation (right / Left)
90 ° / 90 °
Number Of People (inside / Outside)
2
Pendular Arm Rotation (top / Bottom)
+-66 °
weight and dimensions
Wheelbase
2.80 m
Jib Length
2 m
Overall Width
2.48 m
Overall Height
2.47 m
Overall Length
9.80 m
Platform Weight*
11850 kg
Floor Height (access)
0.39 m
External Turning Radius
6.19 m
Overall Height (stowed)
2.72 m
Overall Length (stowed)
7.29 m
Internal Turning Radius (over Tyres)
2.96 m
Platform Dimensions (length X Width)
2.10 m x 0.80 m
Counterweight Offset (turret At 90°)
1.35 m
Ground Clearance At Centre Of Wheelbase
0.44 m
performances
Gradeability
40 %
Drive Speed - Raised
1 km/h
Drive Speed - Stowed
4.40 km/h
wheels
Tyres Type
Solid Tyres Cured-On
Drive Wheels (front / Rear)
2 / 2
Braking Wheels (front / Rear)
2 / 0
Steering Wheels (front / Rear)
2 / 0
engine
Engine Brand / Model
Kubota - D1803-CR-TIE4B
I.C. Engine Power Rating / Power (kW)
36.98 kW / 37 kW
miscellaneous
Fuel Tank
72 l
Ground Pressure
18.20 dan/cm2
Hydraulic Pressure
340 bar
Hydraulic Tank Capacity
94 l
Vibration On Hands/arms
< 0 m/s²
standards compliance
This Machine Is In Compliance With:
ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
