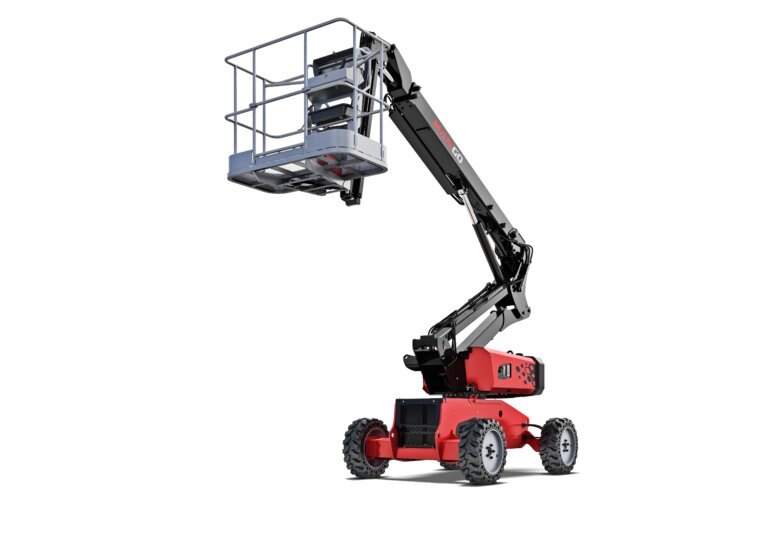

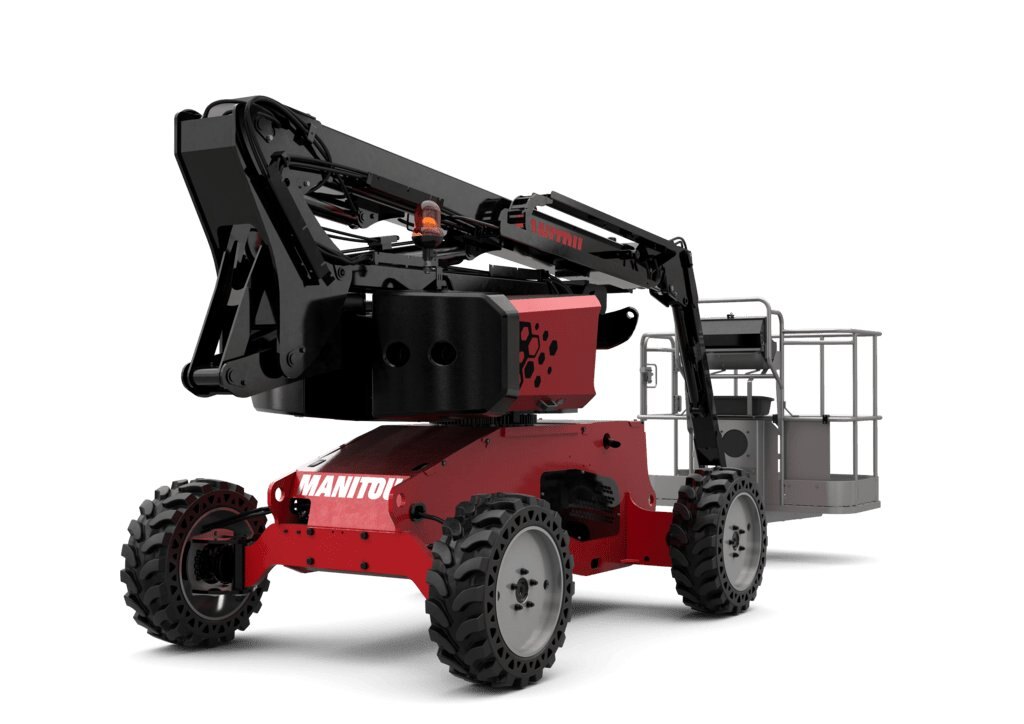

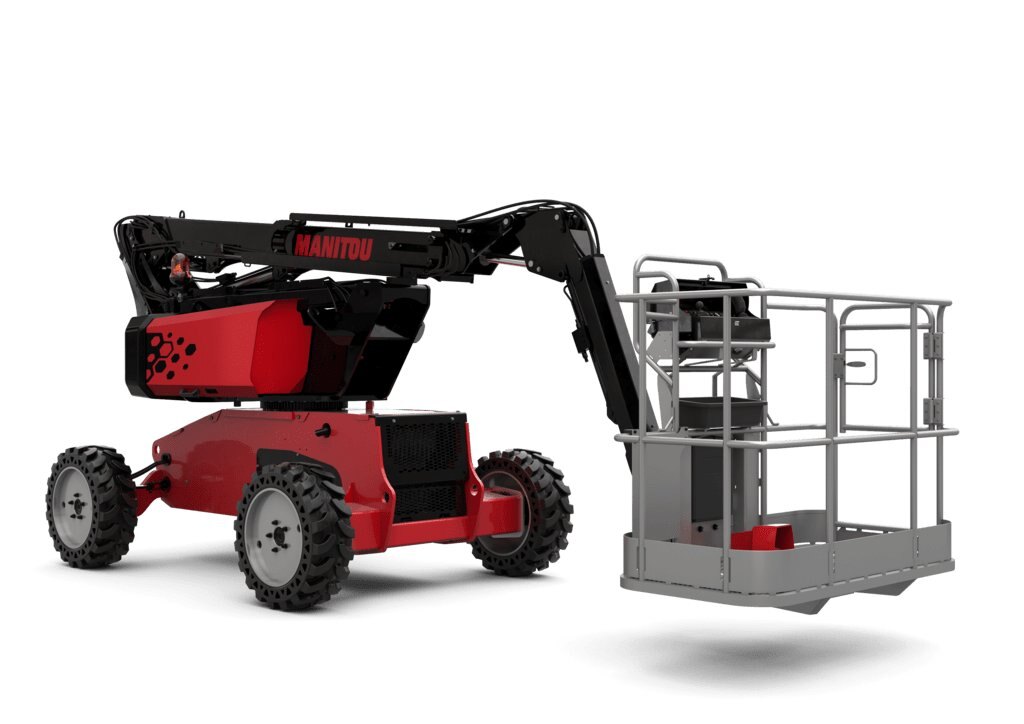

Manitou MAN'GO 33

  • Manitou MAN'GO 33
  • Manitou MAN'GO 33
  • Manitou MAN'GO 33
  • Manitou MAN'GO 33
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The MAN'GO 33 is one of the most compact aerial offroad solutions offering by Manitou. Light and handy, this unit helps achieve effective heights, nomatter the space contraints within the jobsite area. The MAN'GO 33 is distinguished by its high compactness, turret rotation of 350 degrees, and its quick lift arms. For your comfort and safety, the MAN'GO 33 is equipped with a galvanized platform. It also works well in all-terrain conditions thanks to its high ground clearnance and ability to operate in 4-wheel drive.
Specifications
Model
MAN
Category Name
Equipment
Year
2023
Sale Type
New
Manufacturer
Manitou
capacities
Overhang
4.80 m
Max. Outreach
6.69 m
Working Height
11.91 m
Platform Height
9.91 m
Turret Rotation
350 °
Platform Capacity
227 kg
Platform Rotation (right / Left)
70 ° / 66 °
Number Of People (inside / Outside)
2 / 2
Pendular Arm Rotation (top / Bottom)
+-70 °
weight and dimensions
Wheelbase
2 m
Jib Length
1.46 m
Overall Width
1.80 m
Overall Height
2.01 m
Overall Length
5.50 m
Platform Weight*
4150 kg
Floor Height (access)
0.40 m
External Turning Radius
4.11 m
Overall Height (stowed)
2.49 m
Overall Length (stowed)
4.50 m
Internal Turning Radius (over Tyres)
1.72 m
Platform Dimensions (length X Width)
1.50 m x 0.98 m
Counterweight Offset (turret At 90°)
0.64 m
Ground Clearance At Centre Of Wheelbase
0.32 m
performances
Gradeability
40 %
Drive Speed - Raised
1 km/h
Drive Speed - Stowed
5.20 km/h
Permissible Leveling
4 °
wheels
Tyres Type
Super Elastic Solid Cushion
Drive Wheels (front / Rear)
2 / 2
Braking Wheels (front / Rear)
2 / 2
Steering Wheels (front / Rear)
2 / 0
Dimensions Of Front Wheels / Rear Wheels
0,72 x 0,24 - 0,72 x 0,24
engine
Engine Norm
Interim Tier 4, Stage IIIA, Stage V
Engine Brand / Model
Kubota - D1105-E4B
I.C. Engine Power Rating / Power (kW)
18.49 kW / 18.50 kW
miscellaneous
Fuel Tank
53 l
Ground Pressure
15 dan/cm2
Hydraulic Pressure
400 bar
Daily Consumption **
4.40 l
Hydraulic Tank Capacity
60 l
Vibration On Hands/arms
< 0.50 m/s²
standards compliance
This Machine Is In Compliance With:
ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
