Manitou

ID # 24531844

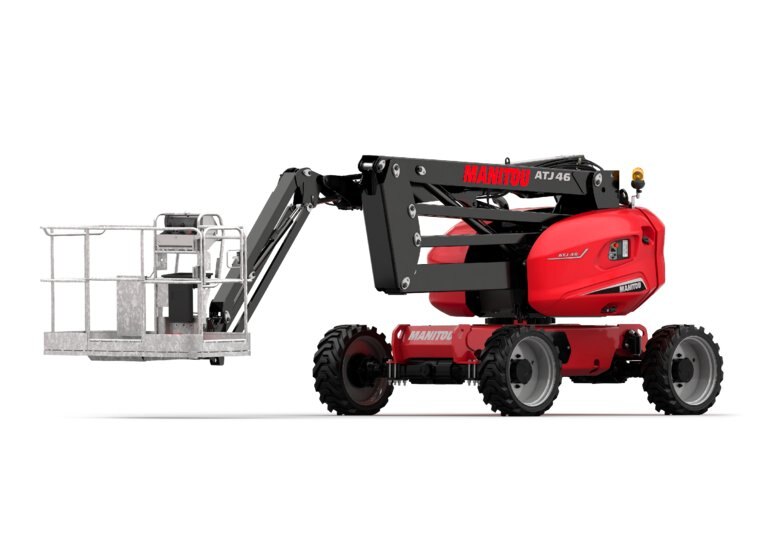

Manitou ATJ 46+

Videos
Call for Price
Overview

Enjoy the handling performance of the ATJ 46+ high capacity aerial workplatform. Thanks to its compact structure, all-terrain design and high ground clearance, this MEWP has excellent performance on uneven surfaces with the ability to work in cramped, difficult to access areas. The extra capacity in the workplatform of the ATJ 46+ is designed to fit 3 operators. Increased operator comfort is provided by the large spacious workplatform, ergonomic driving position and excellent visibility of the loads and the jobsite environment. Make smoother movements and increase productivity with the ATJ 46+ articulated aerial workplatform!

Specifications
Model
ATJ
Category Name
Equipment
Year
2023
Sale Type
New
Manufacturer
Manitou
capacities
Overhang
8.12 m
Max. Outreach
8.62 m
Working Height
16 m
Platform Height
13.88 m
Turret Rotation
360 °
Platform Capacity
408 kg
Platform Rotation (right / Left)
90 °
Pendular Arm Rotation (top / Bottom)
+-66 °
weight and dimensions
Wheelbase
2.20 m
Overall Width
2.30 m
Overall Height
2.70 m
Overall Length
6.92 m
Platform Weight*
8186 kg
Floor Height (access)
0.40 m
External Turning Radius
3.66 m
Overall Height (stowed)
2.37 m
Overall Length (stowed)
4.49 m
Internal Turning Radius (over Tyres)
1.32 m
Platform Dimensions (length X Width)
2.30 m x 0.90 m
Counterweight Offset (turret At 90°)
0.22 m
Ground Clearance At Centre Of Wheelbase
0.43 m
performances
Gradeability
40 %
Drive Speed - Raised
1 km/h
Drive Speed - Stowed
5.70 km/h
wheels
Tyres Type
Foam-filled
Drive Wheels (front / Rear)
2 / 2
Braking Wheels (front / Rear)
0 / 2
Steering Wheels (front / Rear)
2 / 2
Dimensions Of Front Wheels / Rear Wheels
0,84 x 0,279 - 0,84 x 0,279
engine
Engine Norm
Tier 4 final
Engine Brand / Model
Kubota - D1803-CR
I.C. Engine Power Rating / Power (kW)
18.49 kW / 18.50 kW
miscellaneous
Fuel Tank
52 l
Ground Pressure
9.60 dan/cm2
Hydraulic Pressure
340 bar
Hydraulic Tank Capacity
54 l
Noise To Environment (LwA)
< 105 dB
standards compliance
This Machine Is In Compliance With:
ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
