ID # 24531842

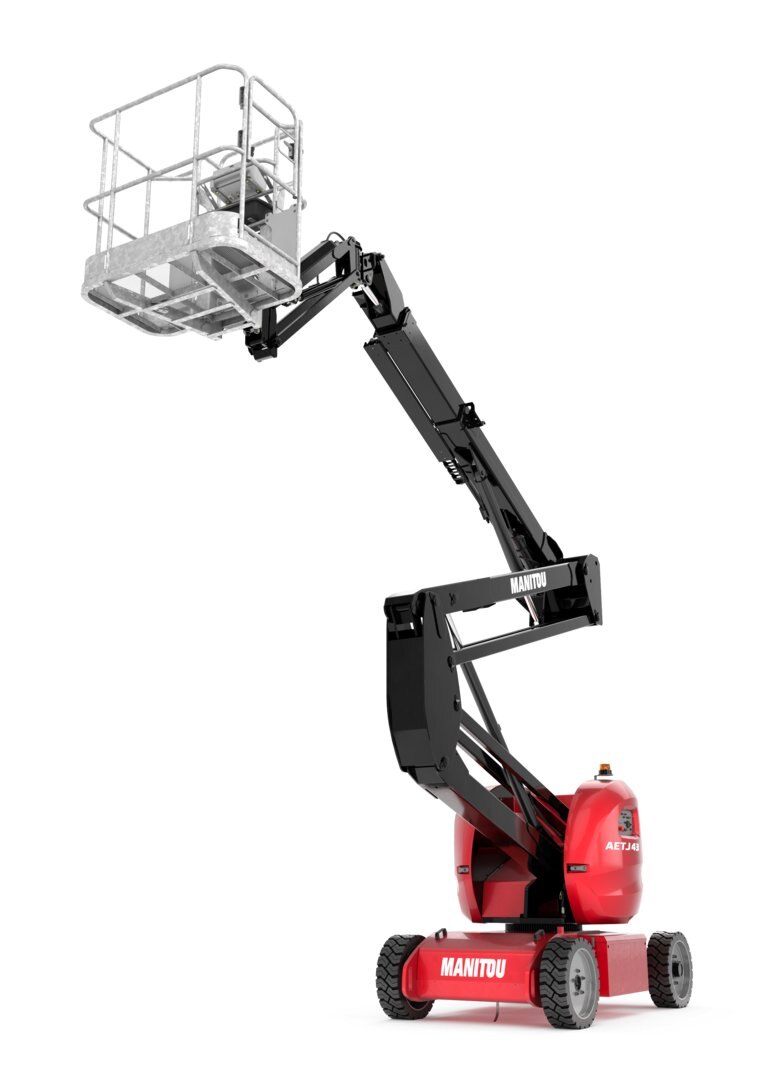

Manitou AETJ 49

  • Manitou AETJ 49
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Easily reach the most remote work areas with the electric AETJ 49 articulated work platform. Offering a working height of 16.9 meters, this model is equipped with two steering wheels in the front and two rear drive wheels facilitating travel inside and outside. Designed to accommodate two operators, the work platform is ideal for industrial work in terms of performance, safety, reliability and profitability. Use AETJ 49 aerial work platform to maximize your height operations and ensure user comfort for operators.
Specifications
Model
AETJ
Category Name
Equipment
Year
2023
Sale Type
New
Manufacturer
Manitou
capacities
Overhang
7 m
Max. Outreach
9.43 m
Working Height
16.90 m
Platform Height
14.90 m
Turret Rotation
355 °
Platform Capacity
227 kg
Platform Rotation (right / Left)
66 ° / 59 °
Number Of People (inside / Outside)
2 / 2
Pendular Arm Rotation (top / Bottom)
+65 ° / -65 °
weight and dimensions
Tailswing
0.08 m
Wheelbase
2 m
Jib Length
1.26 m
Overall Width
1.75 m
Overall Height
1.97 m
Overall Length
6.84 m
Platform Weight*
7095 kg
Floor Height (access)
0.40 m
External Turning Radius
4.30 m
Overall Height (stowed)
2.04 m
Overall Length (stowed)
5.12 m
Internal Turning Radius (over Tyres)
2 m
Platform Dimensions (length X Width)
1.20 m x 0.92 m
Counterweight Offset (turret At 90°)
0.08 m
Ground Clearance At Centre Of Wheelbase
0.14 m
performances
Gradeability
22 %
Drive Speed - Raised
0.60 km/h
Drive Speed - Stowed
5 km/h
Permissible Leveling
3 °
wheels
Tyres Type
Solid non-marking tires
Drive Wheels (front / Rear)
0 / 2
Braking Wheels (front / Rear)
0 / 2
Steering Wheels (front / Rear)
2 / 0
Dimensions Of Front Wheels / Rear Wheels
0,6X0,19m - 0,6X0,19m
engine
Electric Pump
3.70 kW
Integrated Charger (V / A)
48 V / 30 mA
Battery / Batteries Capacity
48 V / 240 Ah
Electric Engine Power Rating
2 x 4.50 kW
miscellaneous
Ground Pressure
16.60 dan/cm2
Hydraulic Pressure
210 bar
Hydraulic Tank Capacity
15 l
Vibration On Hands/arms
< 2.50 m/s²
Number Of Cycles With STD Battery (HIRD)
44
standards compliance
This Machine Is In Compliance With:
ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
