Manitou

ID # 24531841

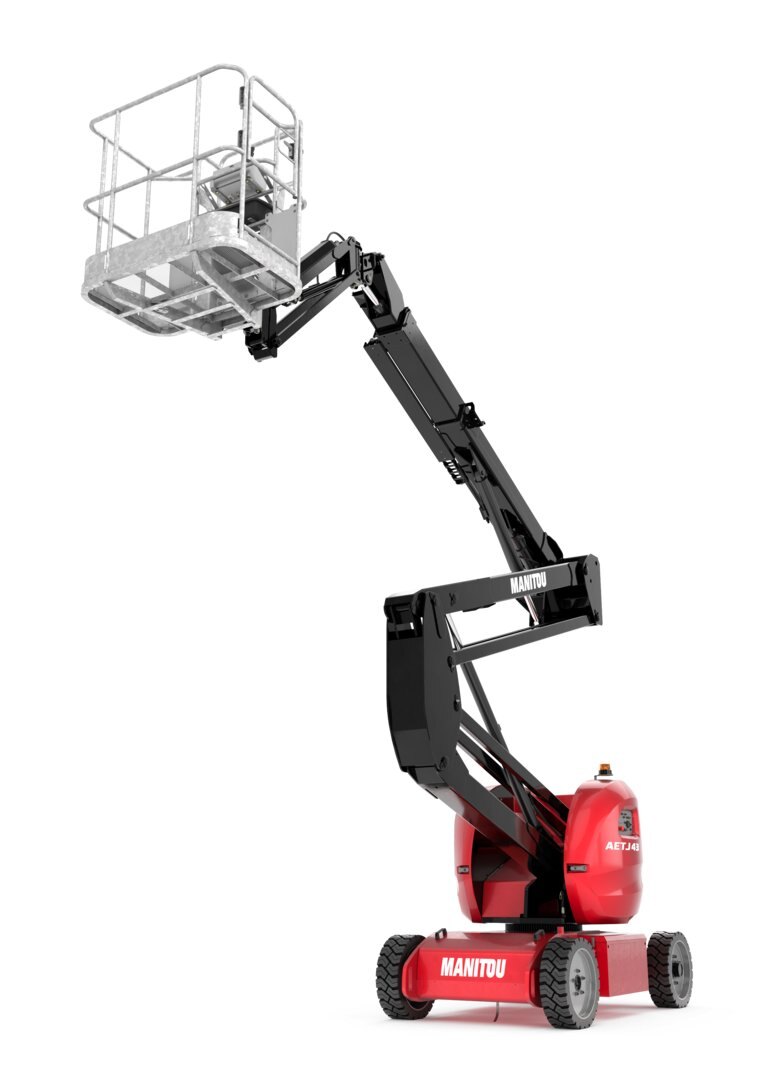

Manitou AETJ 43

Call for Price
Overview

Move around obstacles easily with AETJ 43 electric aerial workplatform. The articulated arm design of this model offers a maximum working height of 15 meters. Very compact, it allows you to easily switch between indoor applications, work in remote areas and on congested jobsites. The traction batteries in the AETJ provide extended life-cycles with the ability to work all day without recharging. All hydraulic movements are proportionate allowing for smooth operation and an intuitive single joystick solely has the ability to lift the entire unit as well as perform the articulation of the machine arm. This makes the AETJ 43 the perfect choice for indoor and outdoor aerial use.

Specifications
Model
AETJ
Category Name
Equipment
Year
2023
Sale Type
New
Manufacturer
Manitou
capacities
Overhang
7 m
Max. Outreach
7.60 m
Working Height
15 m
Platform Height
13 m
Turret Rotation
355 °
Platform Capacity
227 kg
Platform Rotation (right / Left)
66 ° / 59 °
Number Of People (inside / Outside)
2 / 2
Pendular Arm Rotation (top / Bottom)
+65 ° / -65 °
weight and dimensions
Tailswing
0.12 m
Wheelbase
2 m
Jib Length
1.26 m
Overall Width
1.50 m
Overall Height
1.97 m
Overall Length
6.05 m
Platform Weight*
7370 kg
Floor Height (access)
0.40 m
External Turning Radius
3.96 m
Overall Height (stowed)
2.08 m
Overall Length (stowed)
4.40 m
Internal Turning Radius (over Tyres)
1.87 m
Platform Dimensions (length X Width)
1.20 m x 0.92 m
Counterweight Offset (turret At 90°)
0.12 m
Ground Clearance At Centre Of Wheelbase
0.14 m
performances
Gradeability
22 %
Drive Speed - Raised
0.60 km/h
Drive Speed - Stowed
5 km/h
Permissible Leveling
3 °
wheels
Tyres Type
Solid non-marking tires
Drive Wheels (front / Rear)
0 / 2
Braking Wheels (front / Rear)
0 / 2
Steering Wheels (front / Rear)
2 / 0
Dimensions Of Front Wheels / Rear Wheels
0,6X0,19m - 0,6X0,19m
engine
Electric Pump
3.70 kW
Integrated Charger (V / A)
48 V / 30 mA
Battery / Batteries Capacity
48 V / 240 Ah
Electric Engine Power Rating
2 x 4.50 kW
miscellaneous
Ground Pressure
13.50 dan/cm2
Hydraulic Pressure
210 bar
Hydraulic Tank Capacity
15 l
Vibration On Hands/arms
< 2.50 m/s²
Number Of Cycles With STD Battery (HIRD)
44
standards compliance
This Machine Is In Compliance With:
ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
