Manitou

ID # 17964201

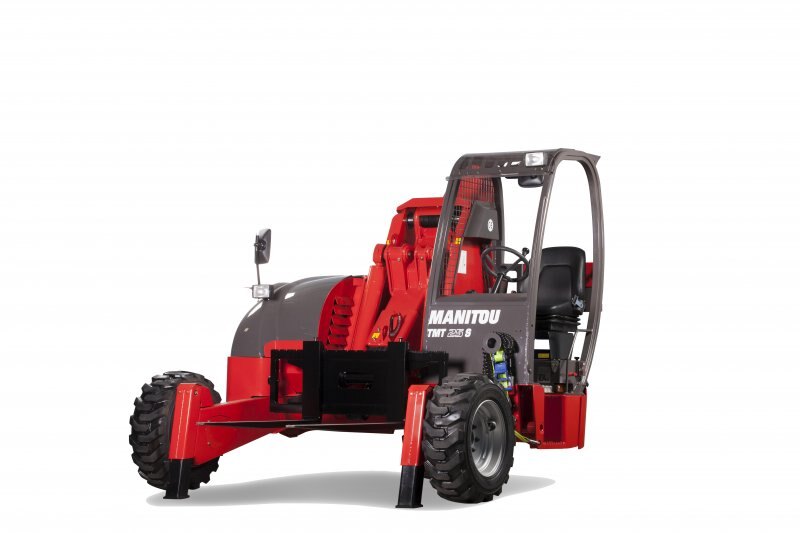

Manitou TMT 55 XT 4W

Videos
Call for Price
Overview

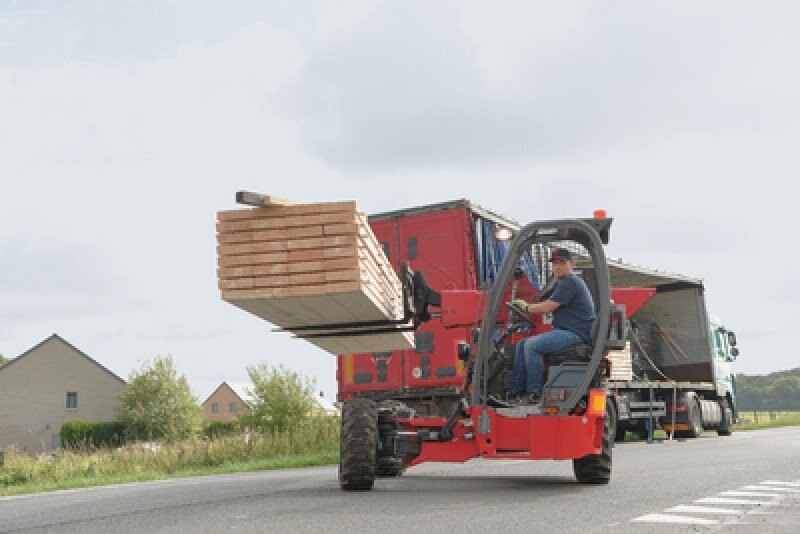

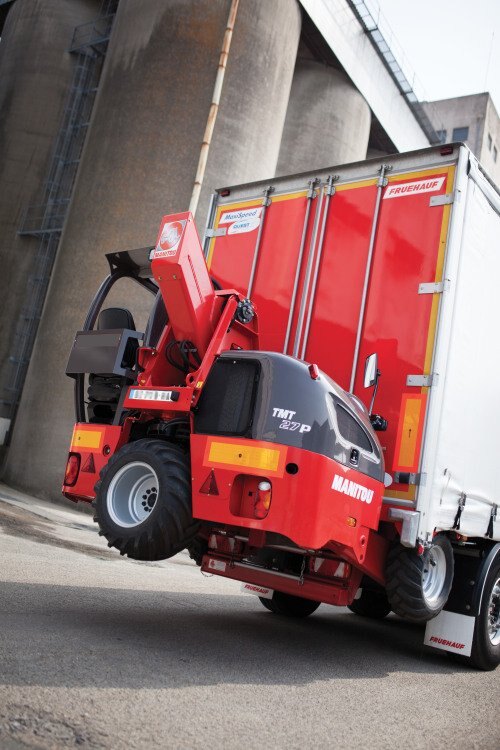

The TMT 55 XT 4W truck-mounted forklift is designed for single-side loading for logistics professionals, particularly those working in the construction sector. It enables you to deliver materials to customers who don't have loading/unloading bays, or with sites not accessible by paved roads. The bi-directional mode means you can move the forklift sideways, which is useful when you have to park the lorry on the side of the road or alongside a wall or other lorry. Designed to last, the TMT 55 XT 4W is built using robust components, for maximum cost effectiveness and minimum payload.

Specifications
Model
TMT 55 XT 4W
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Manitou
Max. Reach
1310 mm
Rated Speed
2700 rpm
Power Source
Diesel
Max. Capacity
2500 kg
Operator Type
Seated
Overall Width
2.57 m
Service Weight
2883 kg
Turning Radius
2610 mm
Engine Brand / Norm
Kubota - Tier 4 final
Max. Lifting Height
3430 mm
Reach Out Equipment
Telescopic boom
Capacity Of Cylinders
2434 cm³
Length To Face Of Forks
2.92 m
Height Telescopic Boom Extended
3915 mm
Engine Power According To ISO 1585
37 kW
technical features
Machine on tyres with forks Metric

Manitou TMT 55 XT 4W

Machine on stabilizers with forks Metric

Manitou TMT 55 XT 4W
