Manitou

ID # 17964200

Manitou TMT 55 XT

Videos
Call for Price
Overview

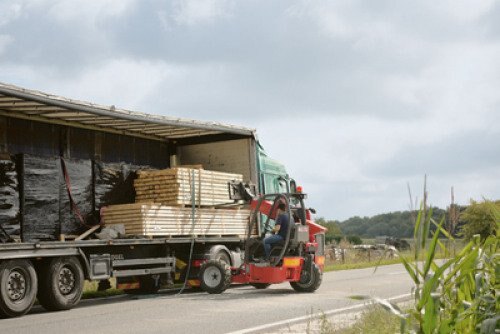

Are you after an all-terrain truck-mounted forklift to use to load and unload lorries? The TMT 55 XT was designed by Manitou to make life easier for logistics professionals especially for those times when a loading/unloading bay is not available. It's particularly valuable in the construction sector, as you can deliver materials at the end of an unpaved path. Built to last, the TMT 55 XT features robust components for ease of upkeep. Payload is kept at a minimum for maximum cost effectiveness. Extremely stable, you can load and unload lorries from a single side, which is quite handy when you have to park alongside a wall or on the side of the road.

Specifications
Model
TMT 55 XT
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Manitou
Max. Reach
1310 mm
Rated Speed
2700 rpm
Power Source
Diesel
Max. Capacity
2500 kg
Operator Type
Seated
Overall Width
2.57 m
Service Weight
2660 kg
Turning Radius
274 m
Engine Brand / Norm
Kubota - Tier 4 final
Max. Lifting Height
3430 mm
Reach Out Equipment
Telescopic boom
Capacity Of Cylinders
2434 cm³
Length To Face Of Forks
2.85 m
Height Telescopic Boom Extended
3915 mm
Engine Power According To ISO 1585
37 kW
technical features
Machine on tyres with forks Metric

Manitou TMT 55 XT

Machine on stabilizers with forks Metric

Manitou TMT 55 XT
