Manitou

ID # 17964199

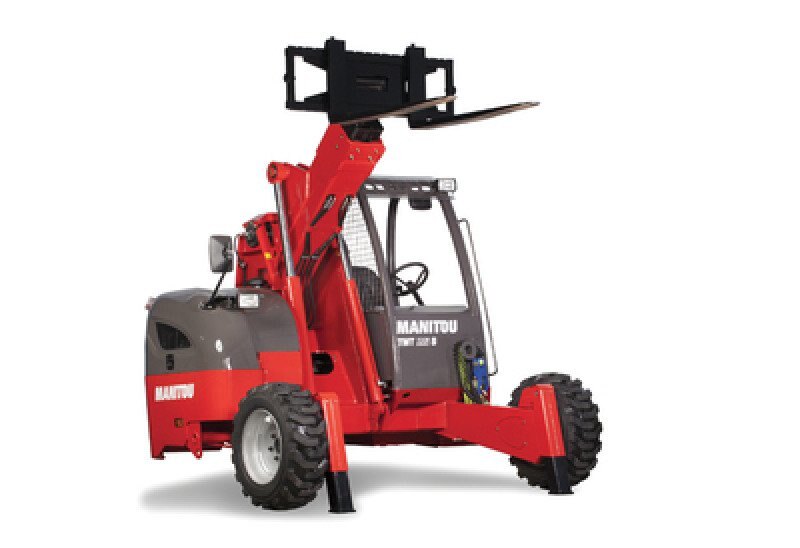

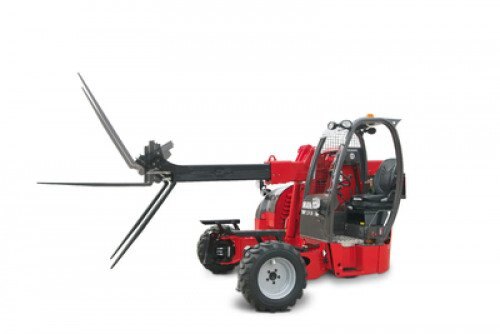

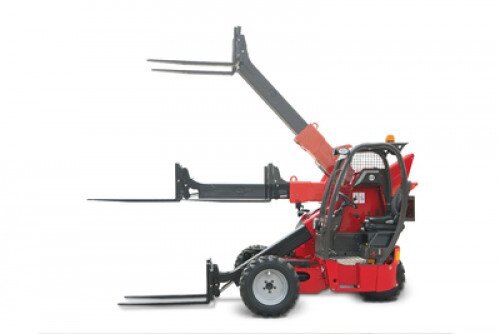

Manitou TMT 55 HT 4W

Videos
Call for Price
Overview

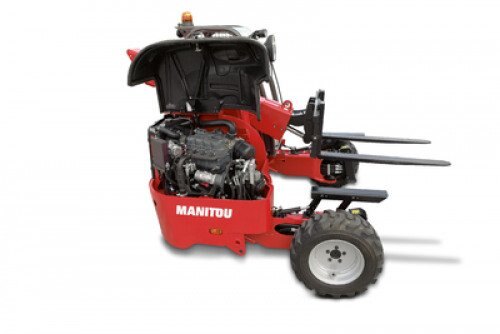

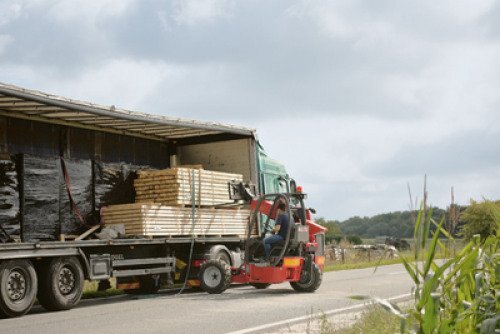

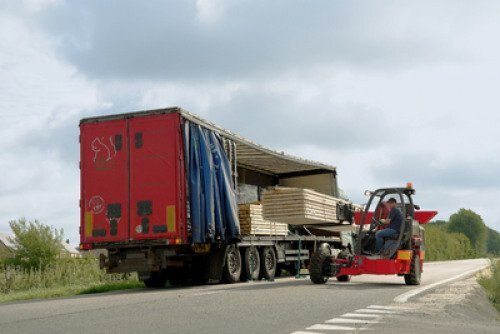

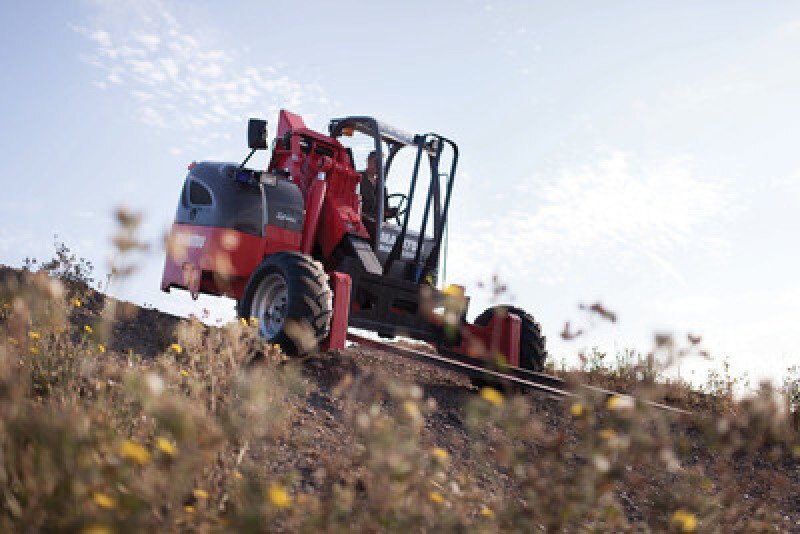

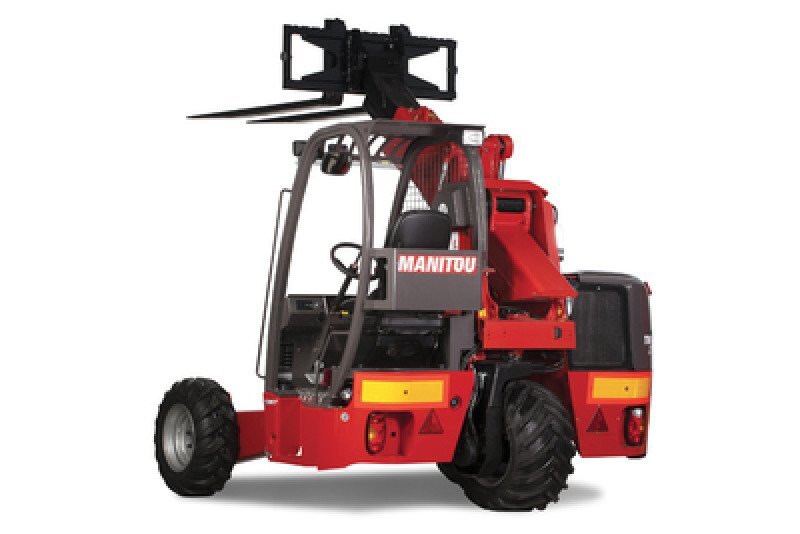

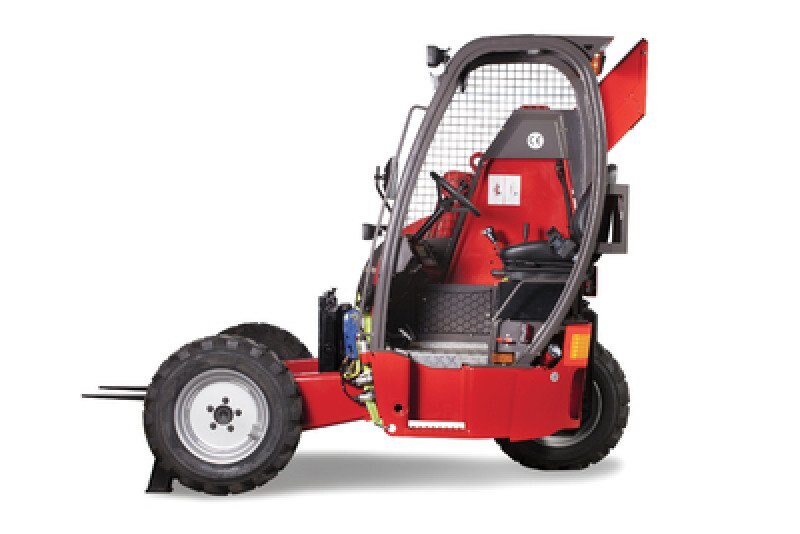

The TMT 55 HT 4W heavy-traction truck-mounted forklift designed for single-side loading and unloading of lorries and making customer deliveries even when ground conditions aren't as smooth as they could be, or when a loading/unloading bay is not available. It's incredibly useful in the construction sector for materials delivery with its increased robustness and reduced payload. Built to last, the controls are incredibly easy to grasp and upkeep has been simplifed as well. With offset and lateral movement modes, it can load and unload lorries from a single side with no problems. This is particularly useful when lorries are parked alongside a wall, on the side of the road or if you have to navigate a narrow path.

Specifications
Model
TMT 55 HT 4W
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Manitou
Max. Reach
1310 mm
Rated Speed
2700 rpm
Power Source
Diesel
Max. Capacity
2500 kg
Operator Type
Seated
Overall Width
2.57 m
Service Weight
2883 kg
Turning Radius
2610 mm
Engine Brand / Norm
Kubota - Tier 4 final
Max. Lifting Height
3430 mm
Reach Out Equipment
Telescopic boom
Capacity Of Cylinders
2434 cm³
Length To Face Of Forks
2.92 m
Height Telescopic Boom Extended
3915 mm
Engine Power According To ISO 1585
37 kW

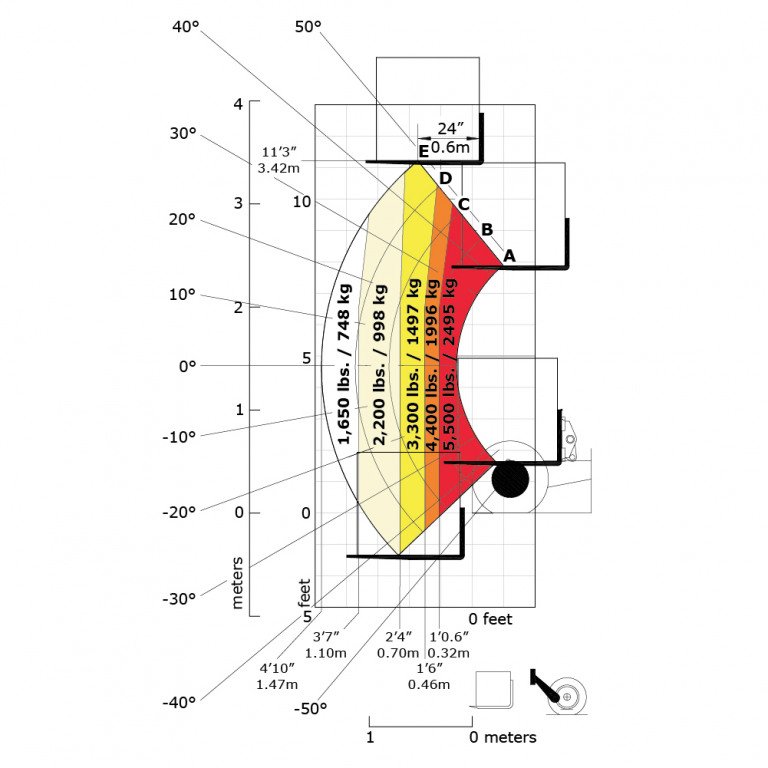

technical features

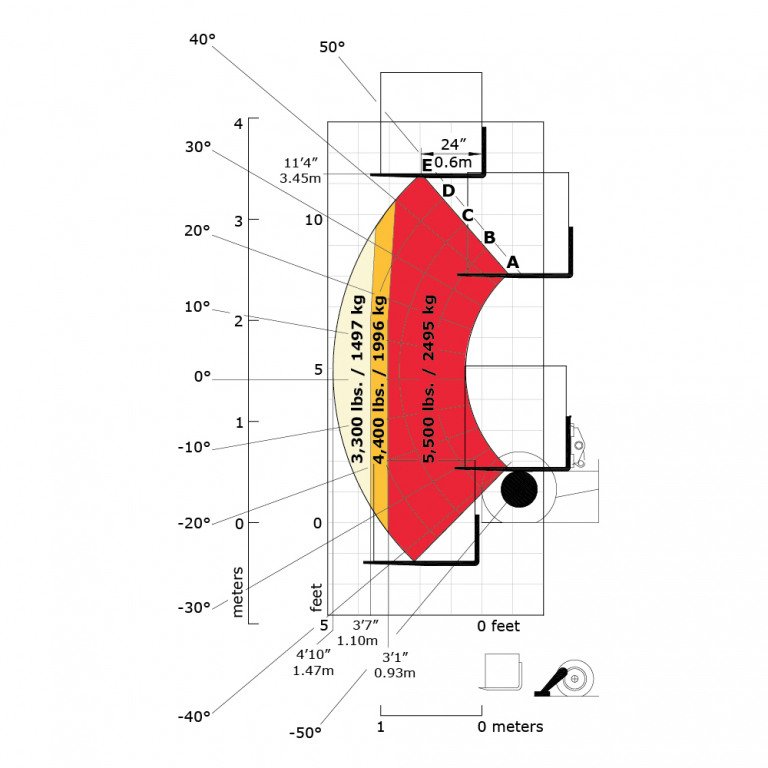

Machine on tyres with forks Metric

Manitou TMT 55 HT 4W

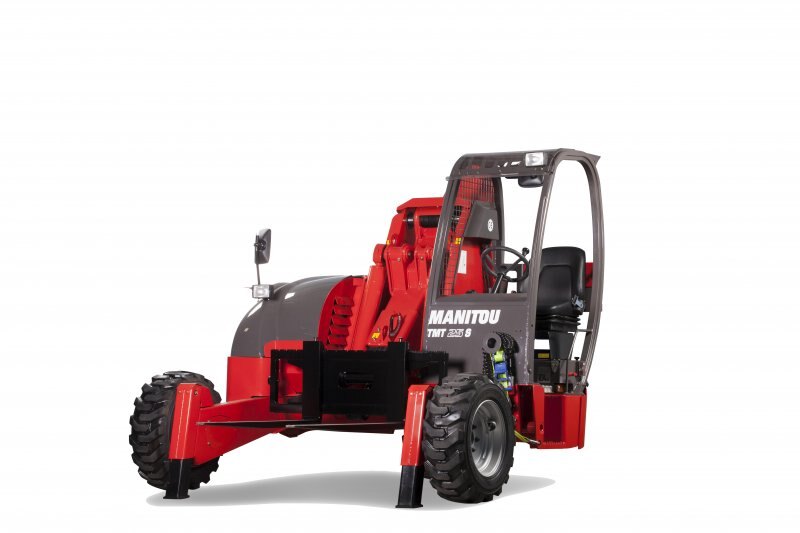

Machine on stabilizers with forks Metric

Manitou TMT 55 HT 4W
