Manitou

ID # 17958371

Manitou MI 40 D

Videos
Call for Price
Overview

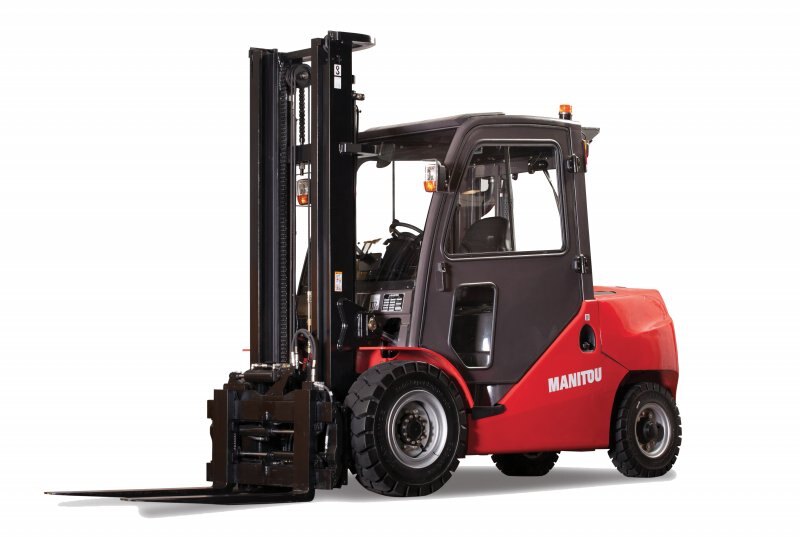

The MI 40 D lift truck is an excellent choice for all tasks involving the handling of loads up to 4 tonnes. Ideal for working out-of-doors and in covered, ventilated spaces, you will be seduced by its ease of maintenance and simplicity of operation.With its easy-to-access cab, heavy-duty working capacity and excellent driver visibility this machine is highly-rated by lift truck operators. The wide range of masts, of tires and attachments allow you to select the ideal equipment combination for your requirements. Its honeycomb roof structure, FOPS cab and operator presence detection system ensure a high level of safety.

Specifications
Model
MI 40 D
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Manitou
Wheelbase
2000 mm
Rated Speed
2600 rpm
Power Source
Diesel
Max. Capacity
4000 kg
Operator Type
Seated
Overall Width
1490 mm
Overall Length
4290 mm
Service Weight
6300 kg
Turning Radius
2780 mm
Engine Brand / Model
Cummins / QSF2.8T4F
Load Centre Of Gravity
500 mm
Seat Height/stand Height
1370 mm
Engine Power According To ISO 1585
55 kW
Fuel Consumption According To VDI Cycle
6.80 l/h
Number Of Cylinders / Capacity Of Cylinders
4 - 2800 cm³
