Manitou

ID # 17958370

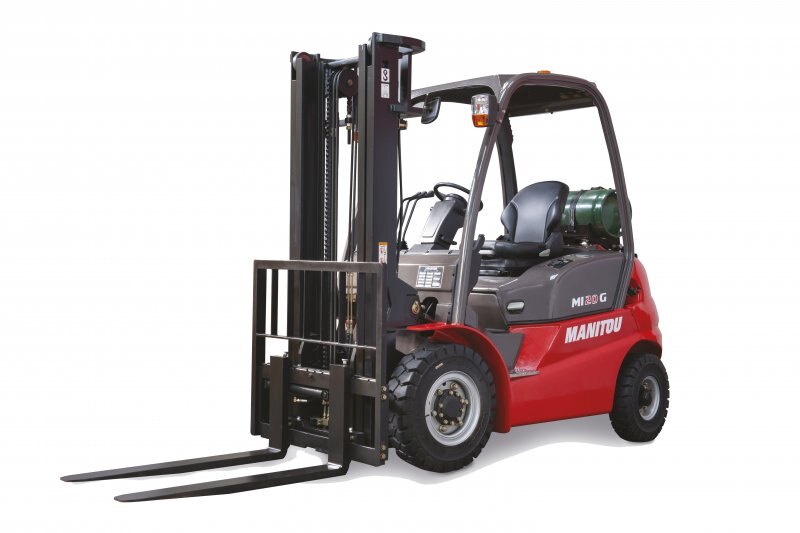

Manitou MI 35 G

Videos
Call for Price
Overview

The MI 35 G is an industrial forklift designed for both indoor and outdoor applications with a maximum load capacity of 3.5 tonnes. It comes equipped with a Nissan LPG engine, with a wide range of masts and tyres available to meet your exact needs.The streamlined and spacious driver's position provides the operator with a pleasant and safe working space, which can easily be accessed from both sides. The ergonomic controls were designed to make day-to-day operation easier on the driver, and visibility has been maximised with the openwork roof, increased space between mast, slim profile rear posts for enhanced safety.

Specifications
Model
MI 35 G
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Manitou
Wheelbase
1700 mm
Rated Speed
2400 rpm
Power Source
Lpg
Max. Capacity
3500 kg
Operator Type
Seated
Overall Width
1225 mm
Overall Length
3935 mm
Service Weight
4740 kg
Turning Radius
2510 mm
Engine Brand / Model
GCT (ex-Nissan) / K25
Load Centre Of Gravity
500 mm
Seat Height/stand Height
1215 mm
Engine Power According To ISO 1585
35 kW
Fuel Consumption According To VDI Cycle
6.30 l/h
Number Of Cylinders / Capacity Of Cylinders
4 - 2488 cm³
