Manitou

ID # 17955663

Manitou MLA-T 533-145 V+ - ST5

Call for Price
Overview

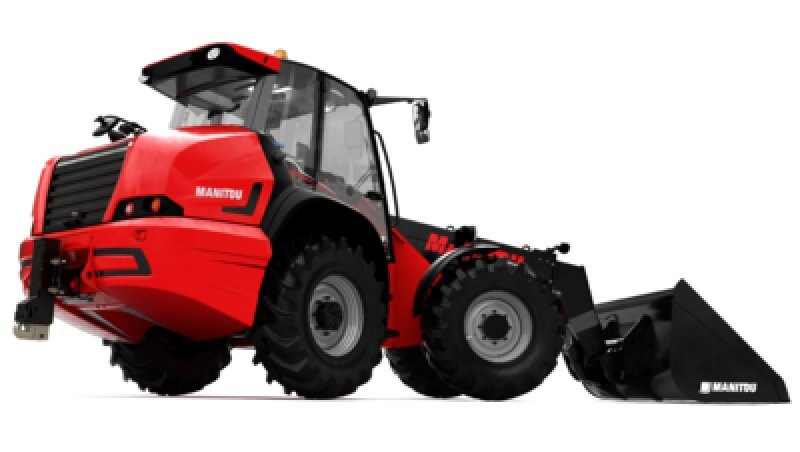

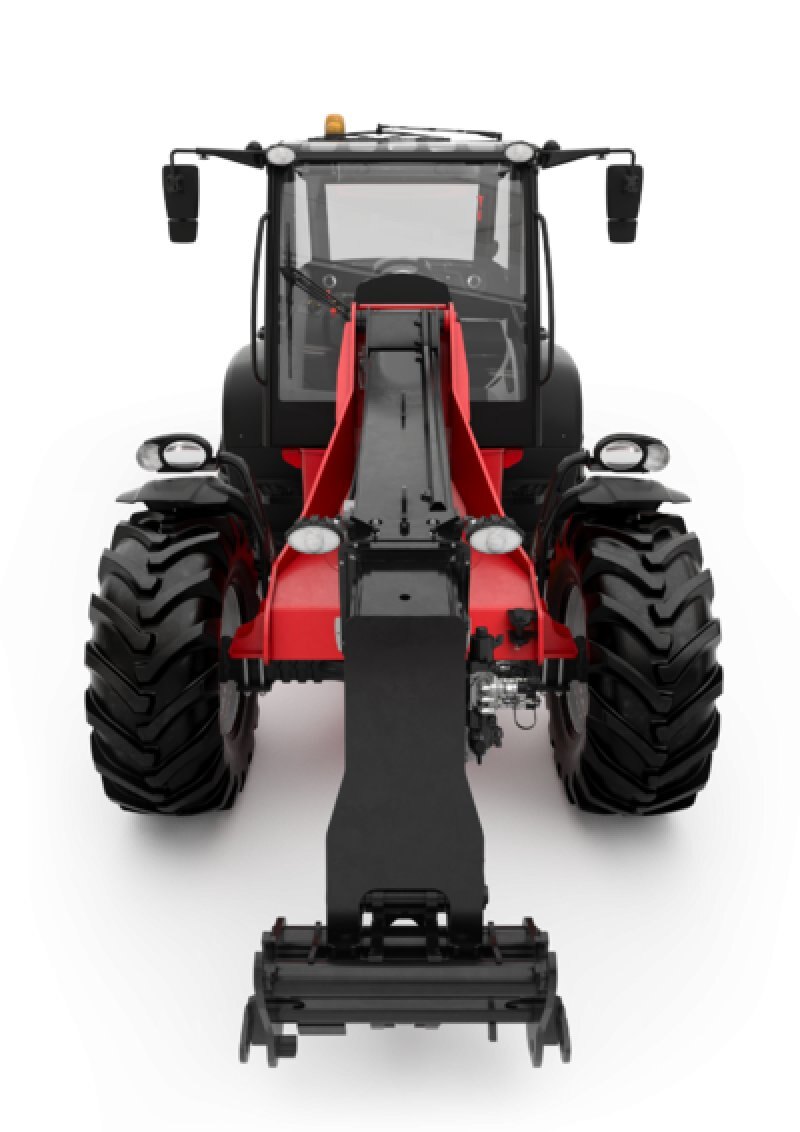

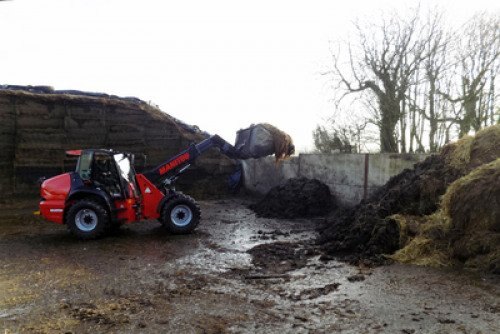

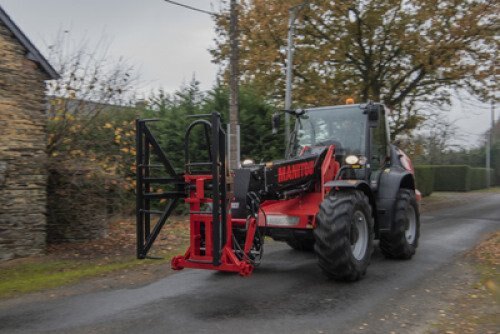

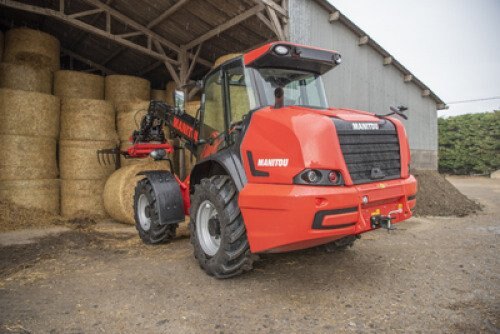

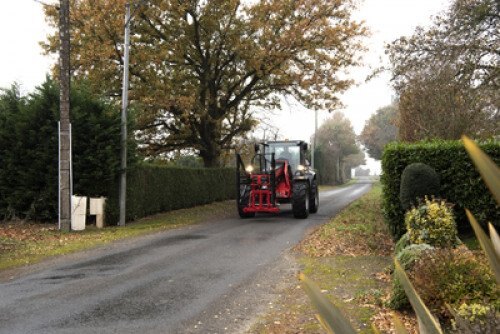

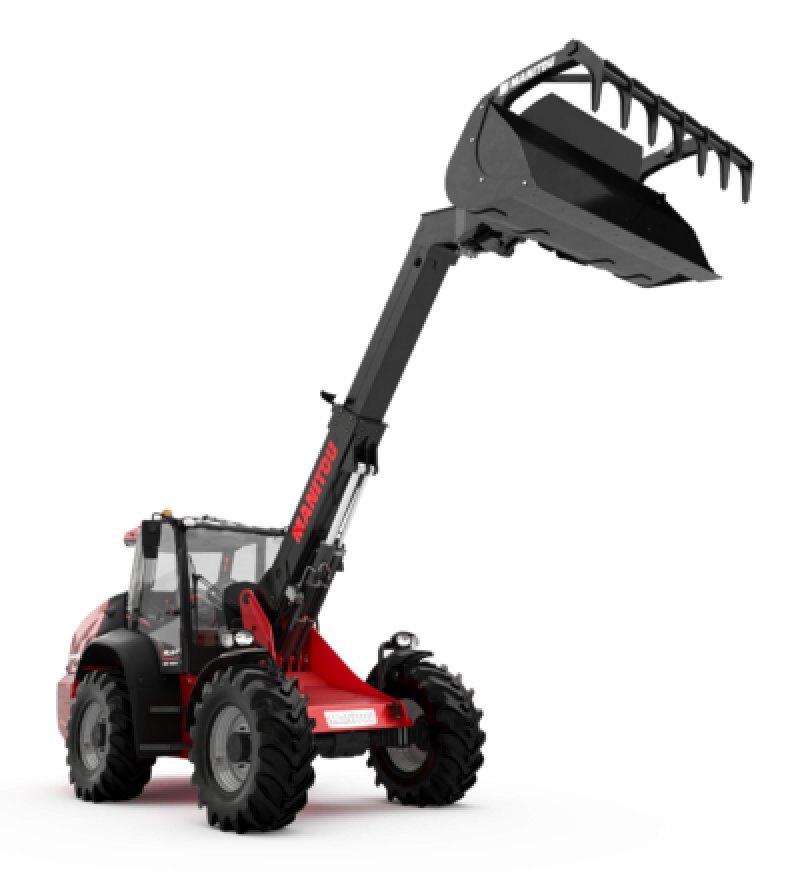

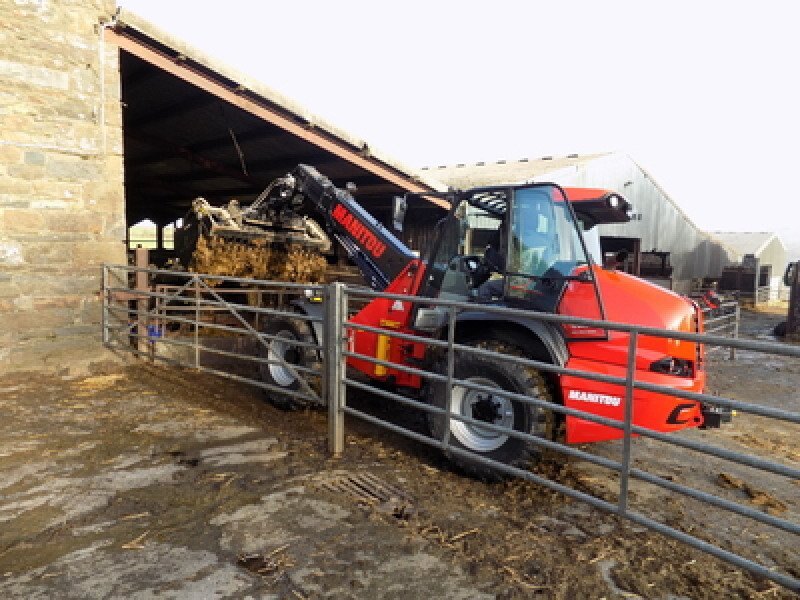

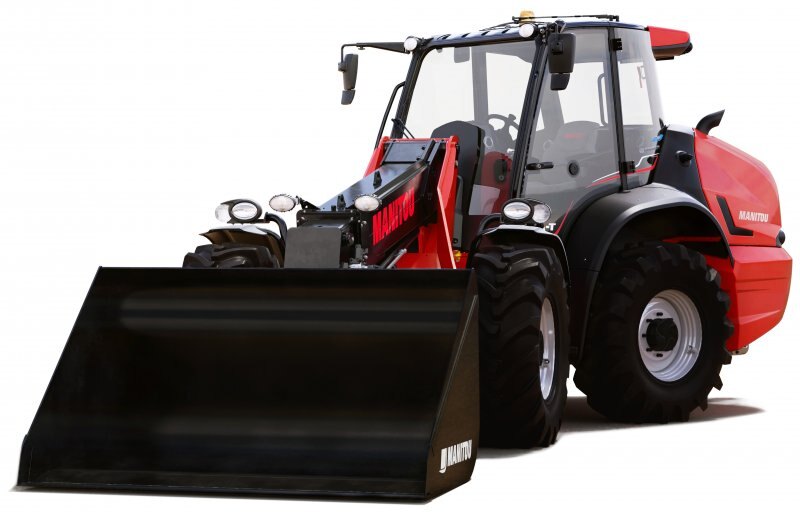

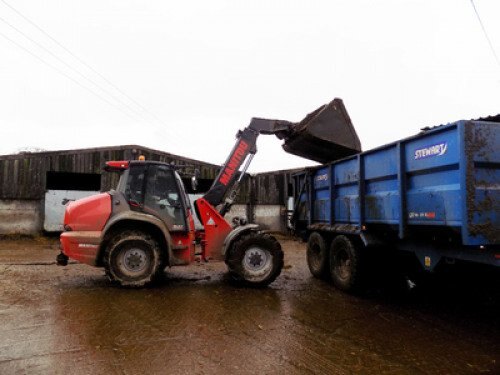

The MLA-T 533-145 V + is the newest articulated telescopic loaders designed by Manitou. With a telescopic boom to cushion the jolts while traveling with or without load, the 533-145 V + makes your daily handling jobs easier. It's designed with innovative features on the agricultural market such as; 4 wheel drive and steering, 45 degree articulation, connected system, possibility of changing attachments in just a few seconds (buckets, clamps, forks ...) to overall increase productivity on the jobsite. This all-terrain telescopic loader, the MLA T-533-145 V+, fits all your requirements to effectively help you in all of your handling operations.

Specifications
Model
MLA-T 533-145 V+ - ST5
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Manitou
Fuel Tank
150 l
Engine Brand
Deutz
Engine Model
TCD_4_1_L4
Hydraulic Oil
150 l
Standard Tyres
Alliance - A580 - 460/70 R24 159A8
Ground Clearance
0.39 m
Engine Cooling System
3 radiators water + intercooler + hydraulic oil
Overall Height With Cab
2.70 m
Overall Width (over Tyres)
2.29 m
Max. Torque / Engine Rotation (min)
550 Nm / 1600 rpm
I.C. Engine Power Rating / Power (kW)
143 Hp / 105 kW
Static Tipping Load With Forks (full Turn)
4147 kg
Number Of Cylinders - Capacity Of Cylinders
4 - 4038 cm³
Max. Payload With Forks As Per EN 474-3 (80%)
3300 kg
Unladen Weight (with Forks) With 4-post Canopy
8430 kg
technical features

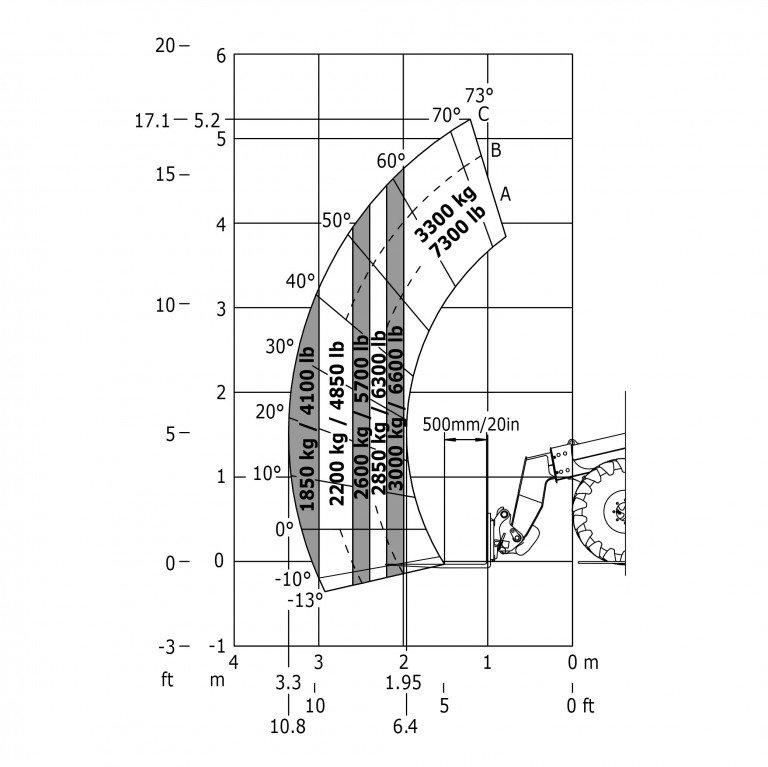

Machine on tyres with forks - Load chart compliant with EN 474-3 (80%) Metric

Manitou MLA T 533 145 V+ ST5
