Manitou

ID # 17955640

Manitou MRT 3570

Call for Price
Overview

The MRT 3570 is a powerful all-terrain rotating telescopic handler. This 3-in-1 machine is a telescopic handler, winch and aerial work platform with a multitude of compatible attachments for versatility and performance on your construction and industrial sites. 360° rotation of the turret and its exceptional cab visibility allows you to perform operations more easily without having to move the machine. The pentagonal section of the boom allows for precise movement and stability of the machine with automatic leveling of the stabilizers. Equipped with smart features for optimum handling and safety, the MRT 3570 is the tool you won't want to do without!

Specifications
Model
MRT 3570
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Manitou
Fuel Tank
320 l
Wheelbase
3.75 mm
Engine Norm
EU Stage V / US EPA Tier 4
Engine Brand
Yanmar
Hydraulic Oil
300 l
Max. Capacity
7000 kg
Overall Width
2.50 m
Overall Height
3.26 m
Overall Weight
23800 kg
Ground Clearance
0.36 m
Overall Cab Width
0.96 m
Engine Cooling System
Water cooled
Max. Torque / Engine Rotation (min)
805 Nm @ 1500 rpm
I.C. Engine Power Rating / Power (kW)
211 Hp / 155 kW
Number Of Cylinders - Capacity Of Cylinders
4 - 4567 cm³
technical features

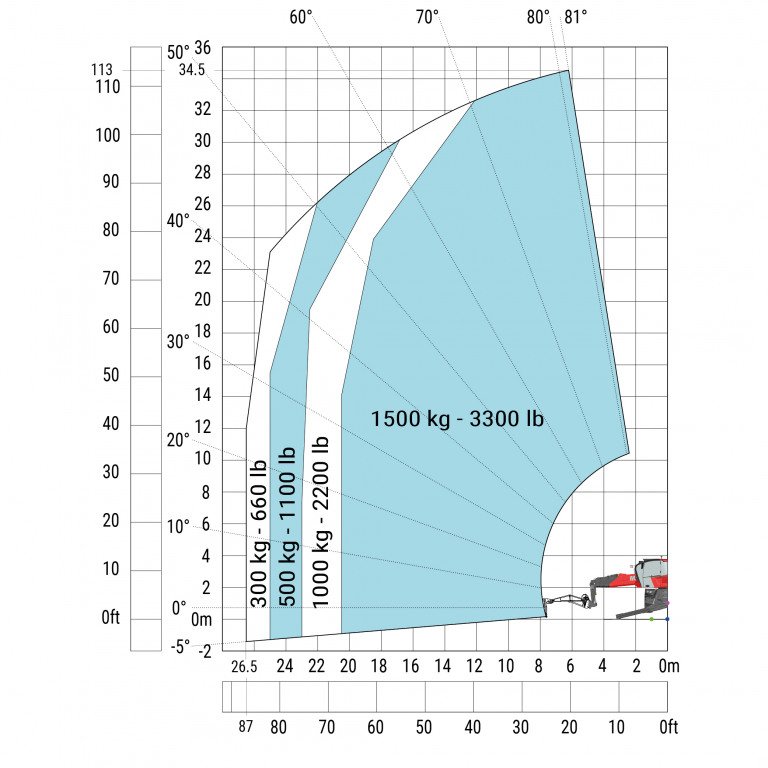

Machine on lowered stabilisers with 1500 kg jib Metric

Manitou MRT 3570

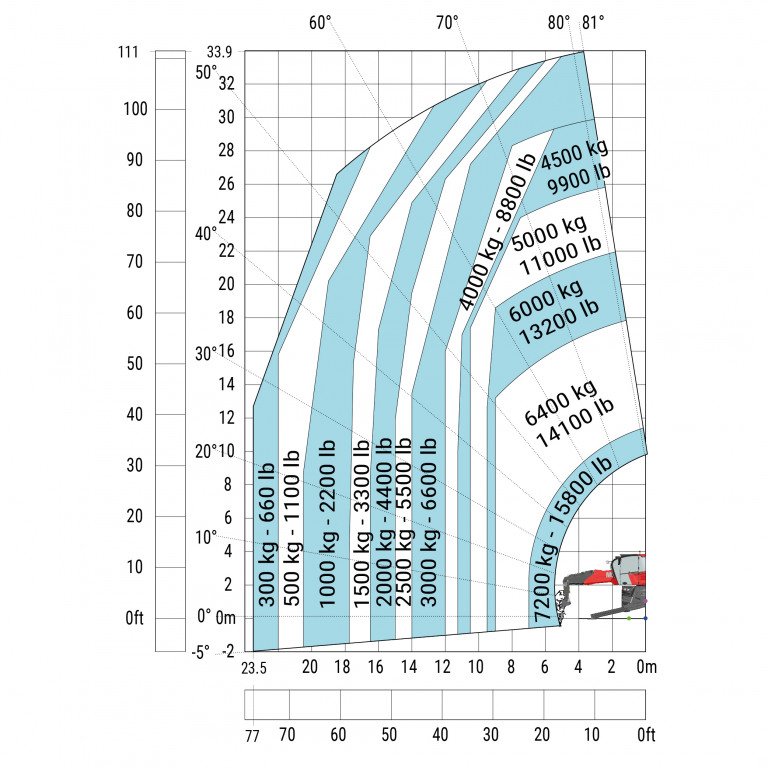

Machine on lowered stabilizers with winch 7200 kg (metric)

Manitou MRT 3570

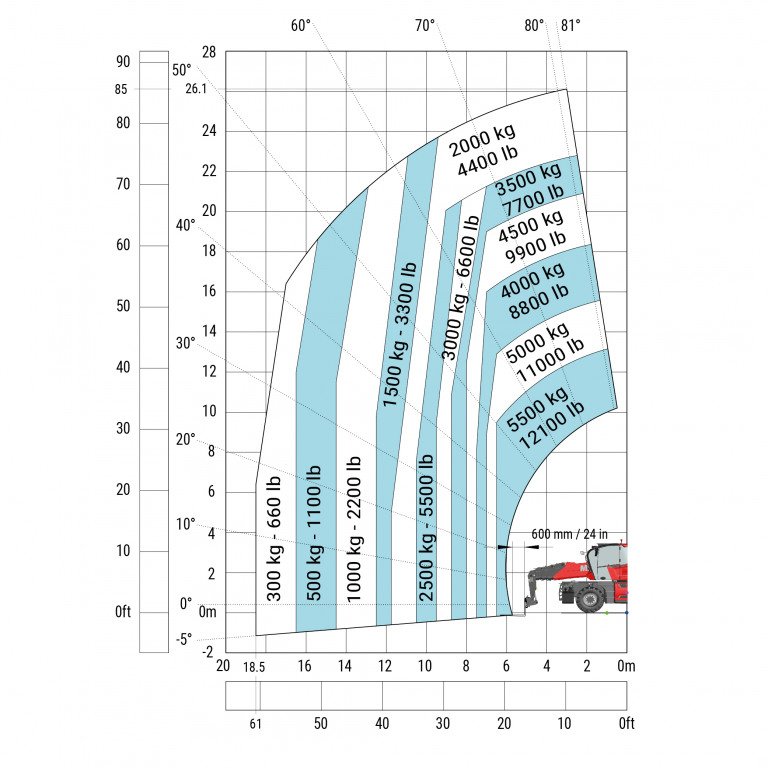

Machine on tyres with forks Metric

Manitou MRT 3570

Machine on lowered stabilisers with 3D positive Metric

Manitou MRT 3570

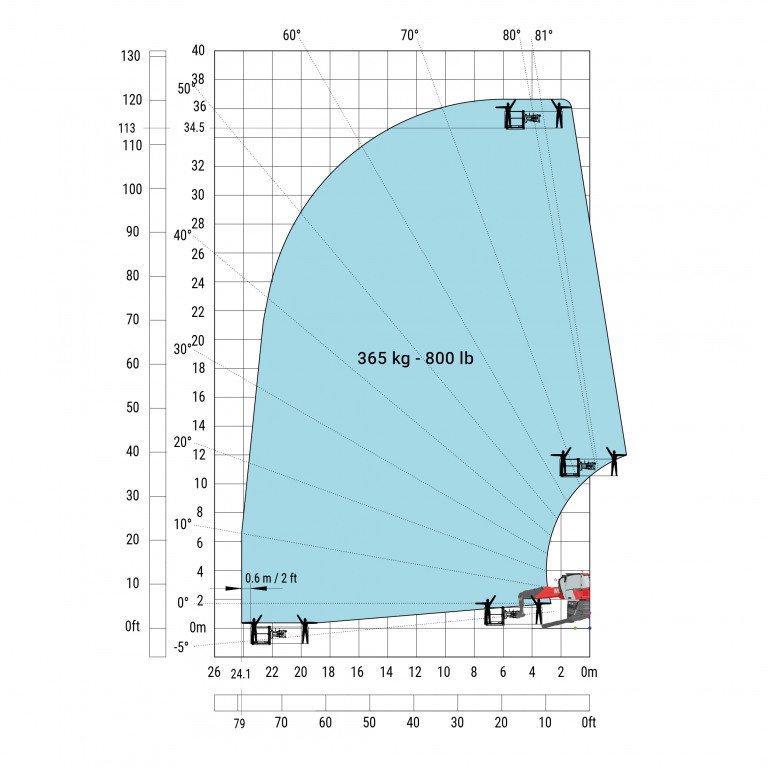

Machine on lowered stabilisers with 365 kg platform Metric

Manitou MRT 3570
