Manitou

ID # 17955138

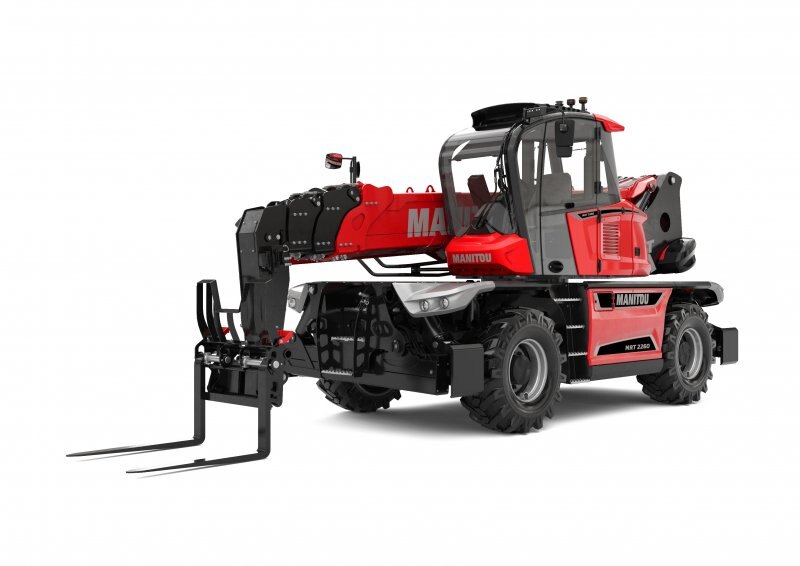

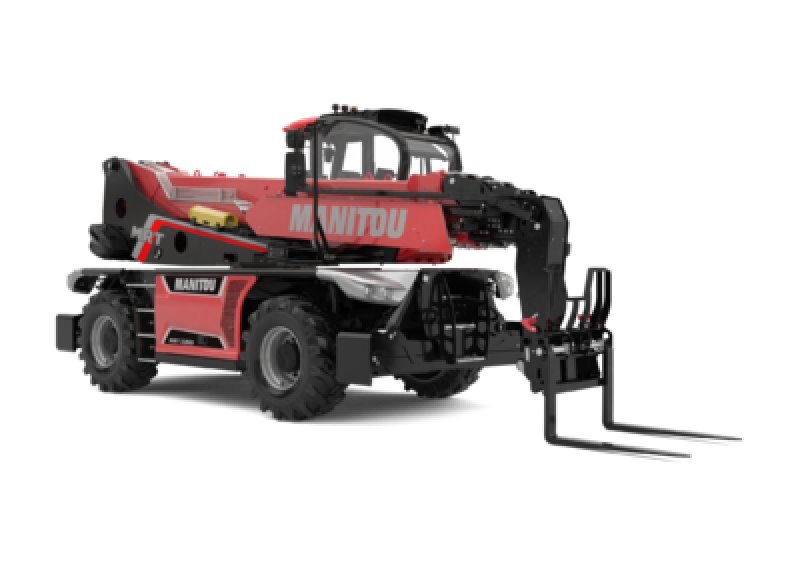

Manitou MRT 2260

Call for Price
Overview

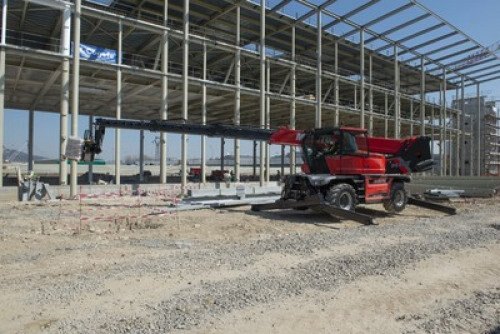

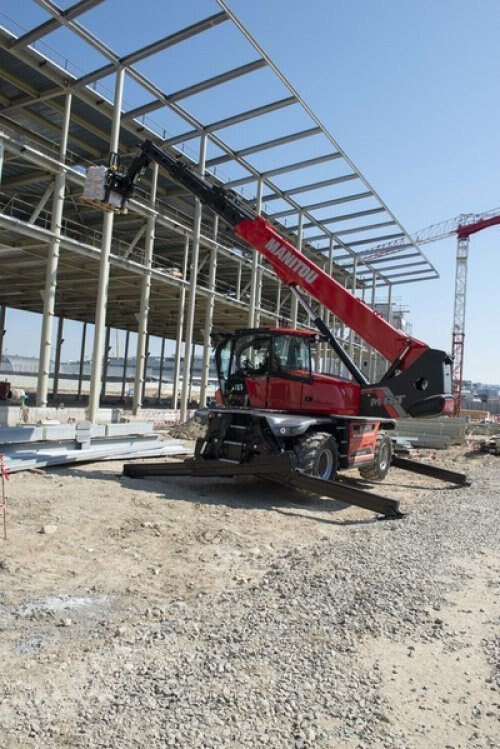

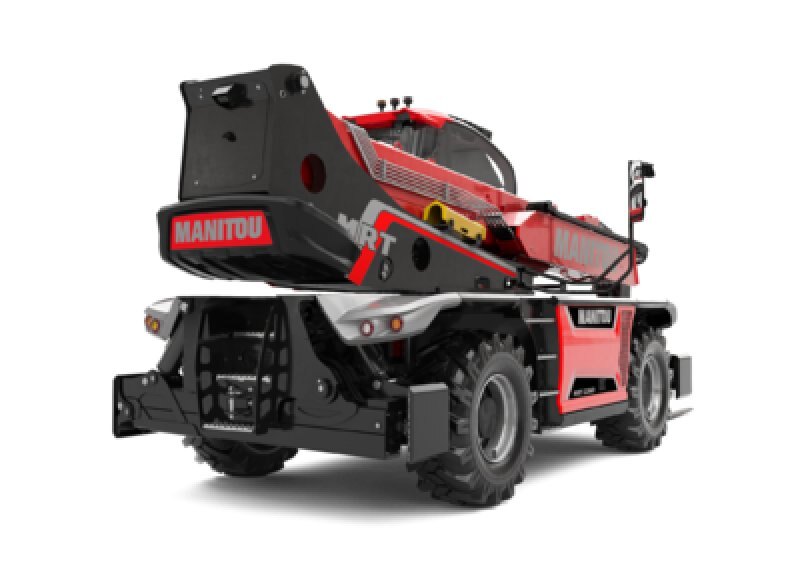

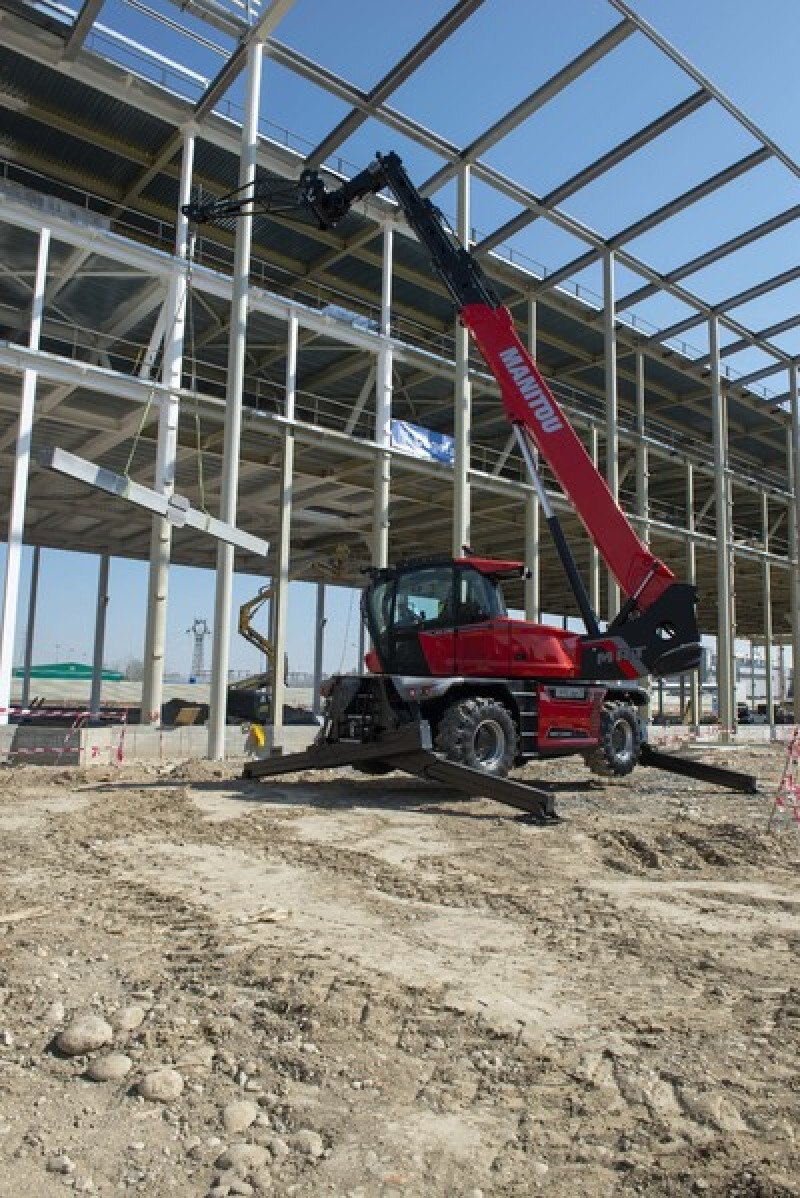

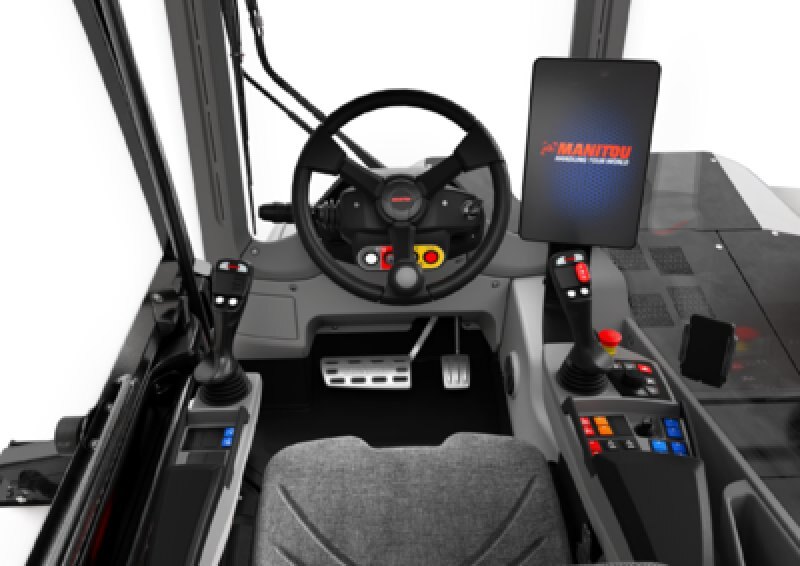

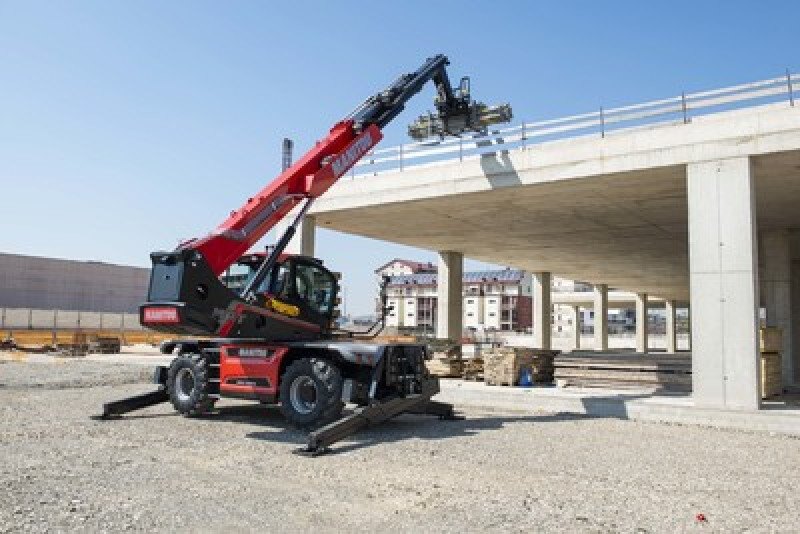

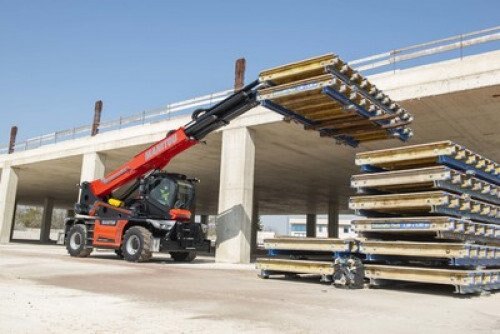

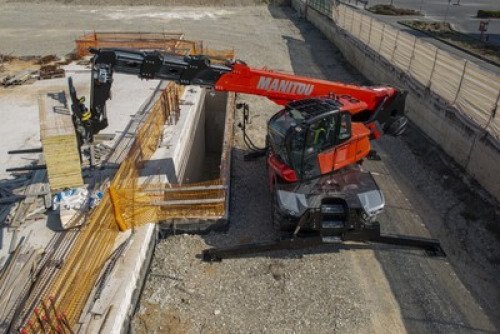

The MRT 2260 is a powerful all-terrain rotating telescopic handler. This 3-in-1 machine is a telescopic handler, winch and aerial work platform with a multitude of compatible attachments for versatility and performance on your construction and industrial sites. 360° rotation of the turret and its exceptional cab visibility allows you to perform operations more easily without having to move the machine. The pentagonal section of the boom allows for precise movement and stability of the machine with automatic leveling of the stabilizers. Equipped with smart features for optimum handling and safety, the MRT 2260 is the tool you won't want to do without!

Specifications
Model
MRT 2260
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Manitou
Fuel Tank
270 l
Wheelbase
3.05 mm
Engine Norm
EU Stage V / US EPA Tier 4
Engine Brand
Yanmar
Hydraulic Oil
260 l
Max. Capacity
6000 kg
Overall Width
2.50 m
Overall Height
3.10 m
Overall Weight
18000 kg
Ground Clearance
0.36 m
Overall Cab Width
0.96 m
Engine Cooling System
Water cooled
Max. Torque / Engine Rotation (min)
602 Nm @ 1500 rpm
I.C. Engine Power Rating / Power (kW)
156 Hp / 115 kW
Number Of Cylinders - Capacity Of Cylinders
4 - 4567 cm³
technical features

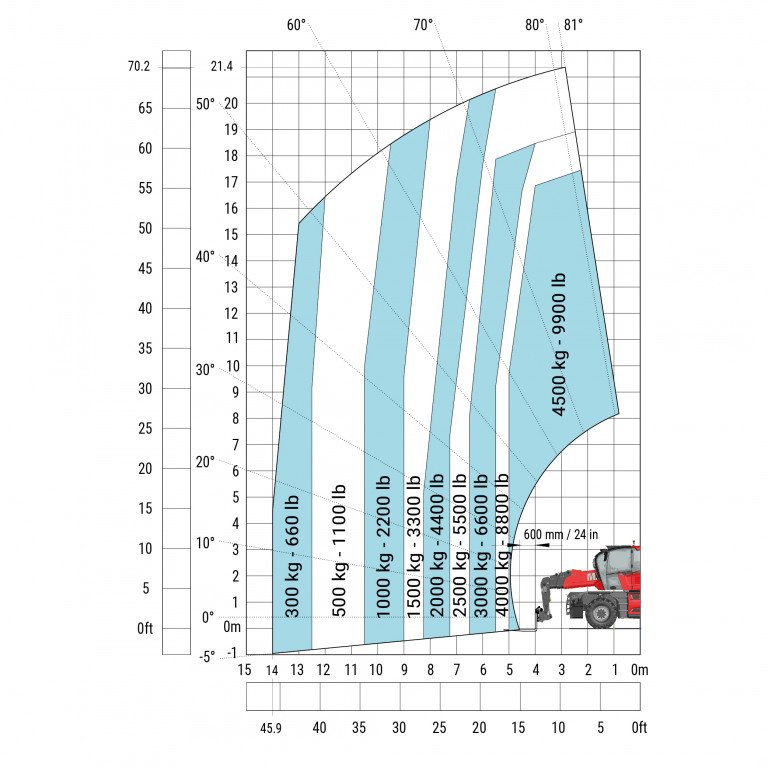

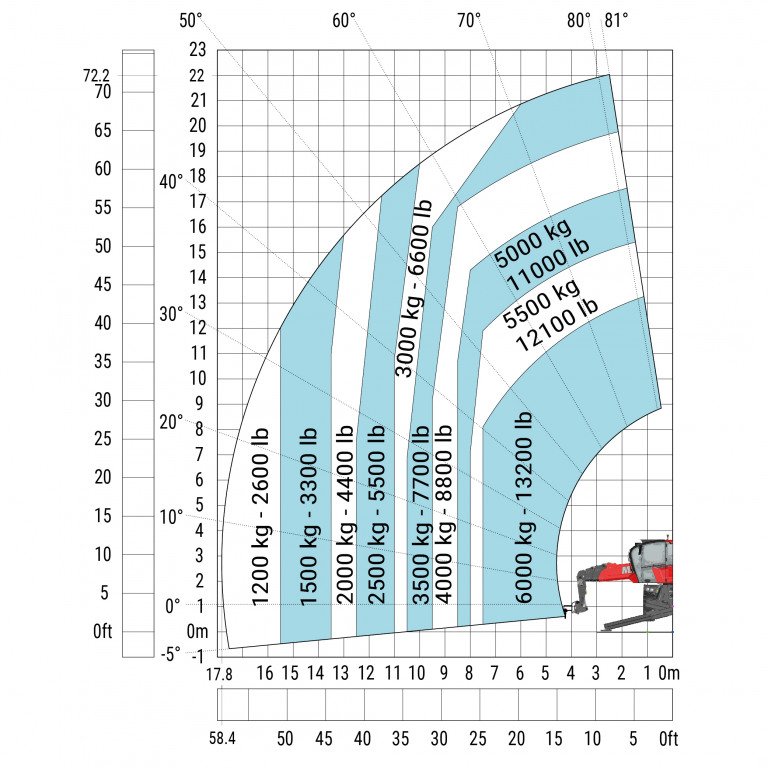

Machine on lowered stabilisers with hook 6000 kg (Metric)

Manitou MRT 2260

Machine on tyres with forks Metric

Manitou MRT 2260

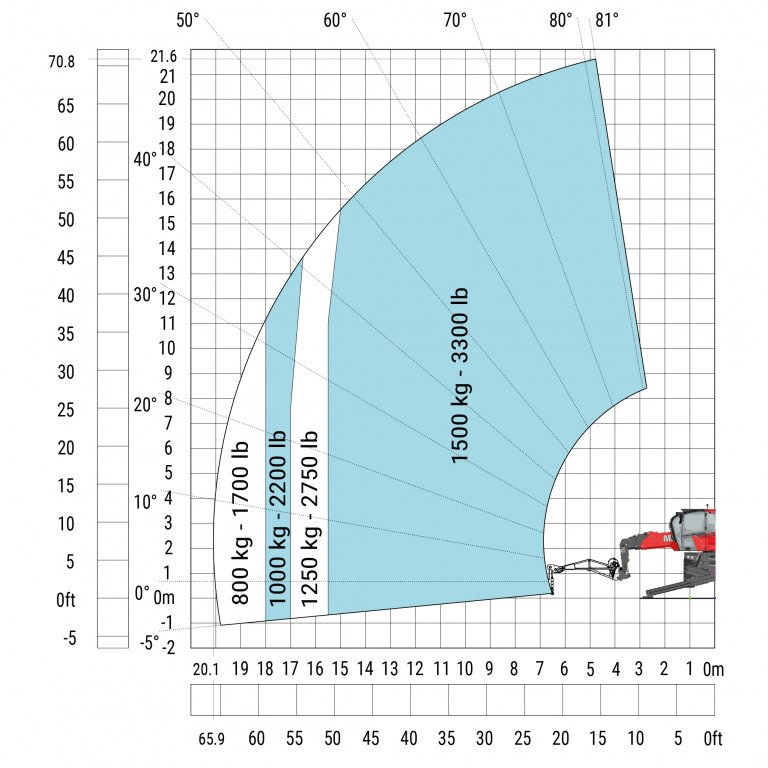

Machine on lowered stabilisers with 1500 kg jib Metric

Manitou MRT 2260

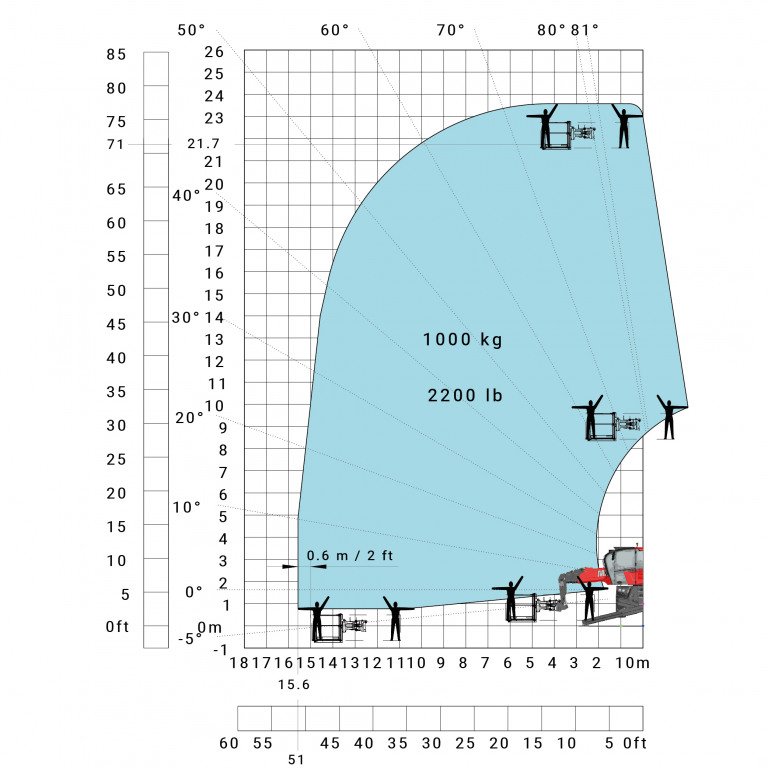

Machine on lowered stabilisers with 1000 kg platform Metric

Manitou MRT 2260

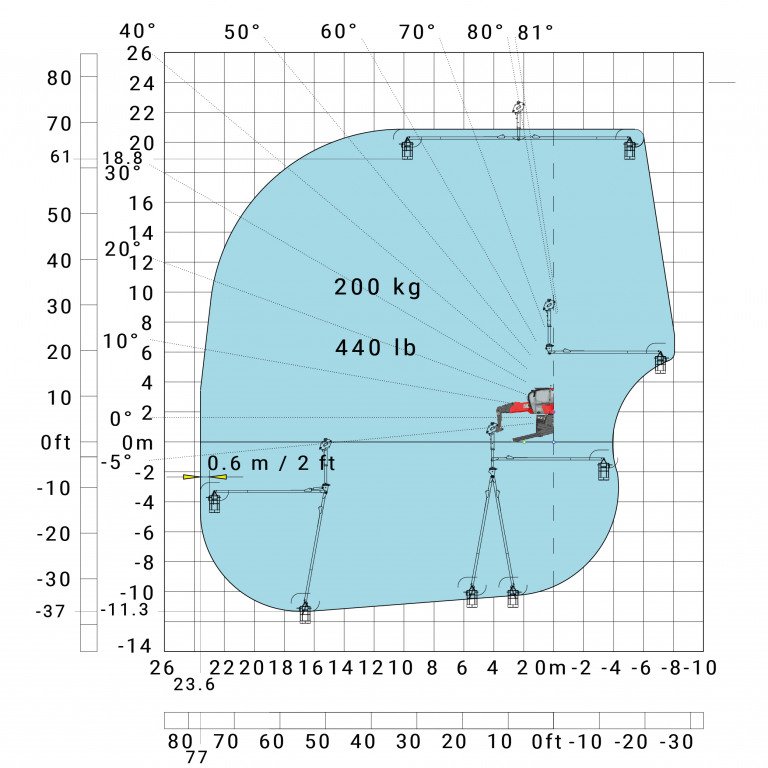

Machine on lowered stabilisers with 3D negative Metric

Manitou MRT 2260

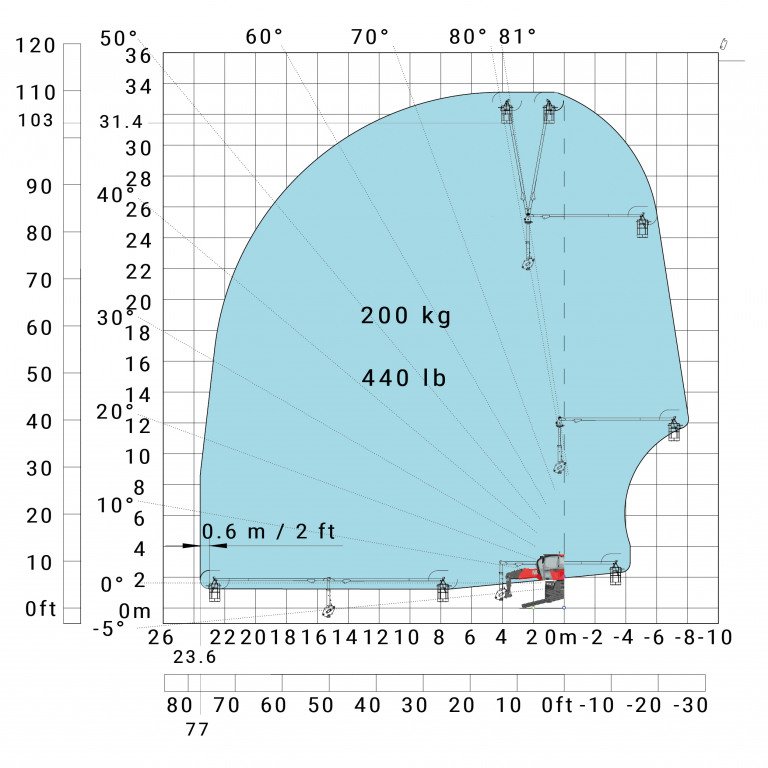

Machine on lowered stabilisers with 3D positive Metric

Manitou MRT 2260
