Manitou

ID # 17949839

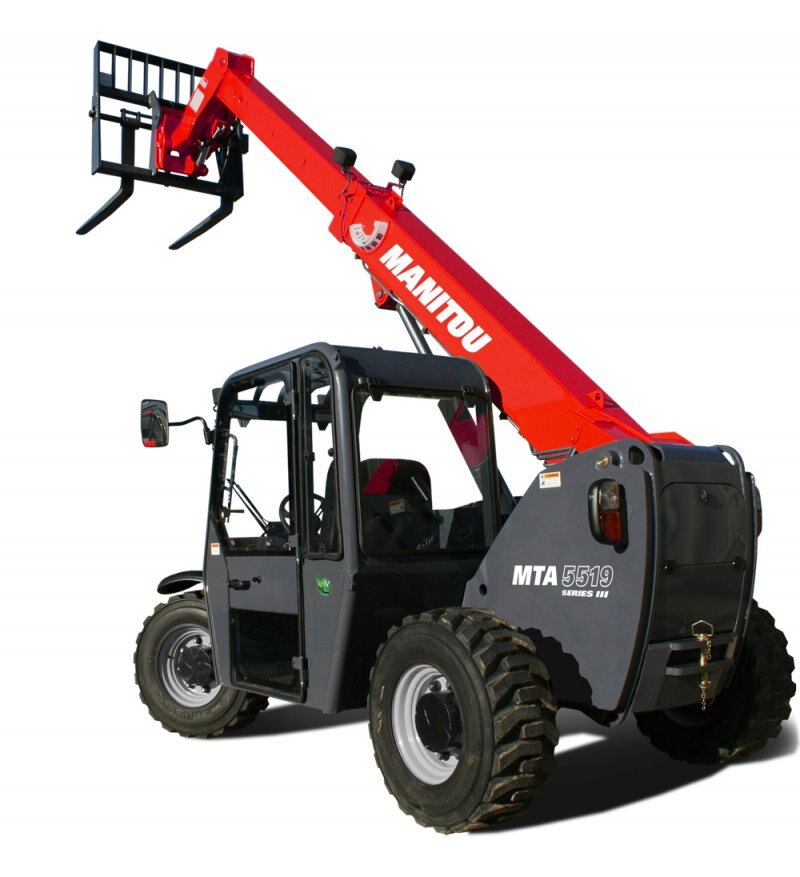

Manitou MTA 5519 S3

Call for Price
Overview

The MTA 5519 telehandler offers big results in a compact-size, with a maximum lift height of 5.8 m and a maximum lift capacity of 2.5 t. Powered by a Yanmar Tier IV certified engine, this machine can travel up to 24 km/h with 3 selectable steering modes: 2-wheel, 4-wheel and crab steering. The MTA 5519 features a turning radius of only 3.4 m and an overall machine height of 1.93 m, and can be fitted with a wide range of available attachments to increase productivity. Cost-effective due to ease of upkeep, it will quickly become your go-to machine when dealing with more demanding work sites.

Specifications
Model
MTA 5519 S3
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Manitou
Fuel Tank
64 l
Wheelbase
2.29 m
Power (kW)
89 kW
Engine Norm
Tier IV Final
Engine Brand
Yanmar
Hydraulic Oil
68 l
Max. Capacity
235 Nm @ 235 rpm
Overall Width
1.80 m
Overall Height
1.93 m
Standard Tyres
12 x 16.5
Ground Clearance
266 mm
Overall Cab Width
711 mm
Unladen Weight (with Forks)
4400 kg
Max. Torque / Engine Rotation
235 Nm @ 235 rpm
Number Of Cylinders - Capacity Of Cylinders
4 - 3.32 cm³
technical features
Machine on tyres with forks Metric

Manitou MTA 5519 S3
