Manitou

ID # 17948706

Manitou MT 625 H

Call for Price
Overview

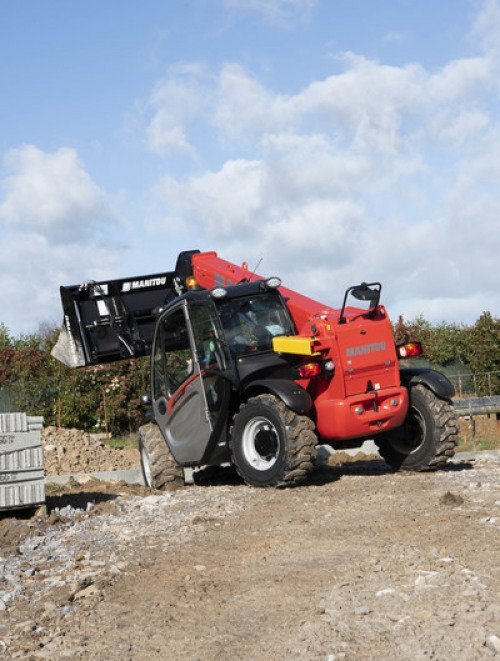

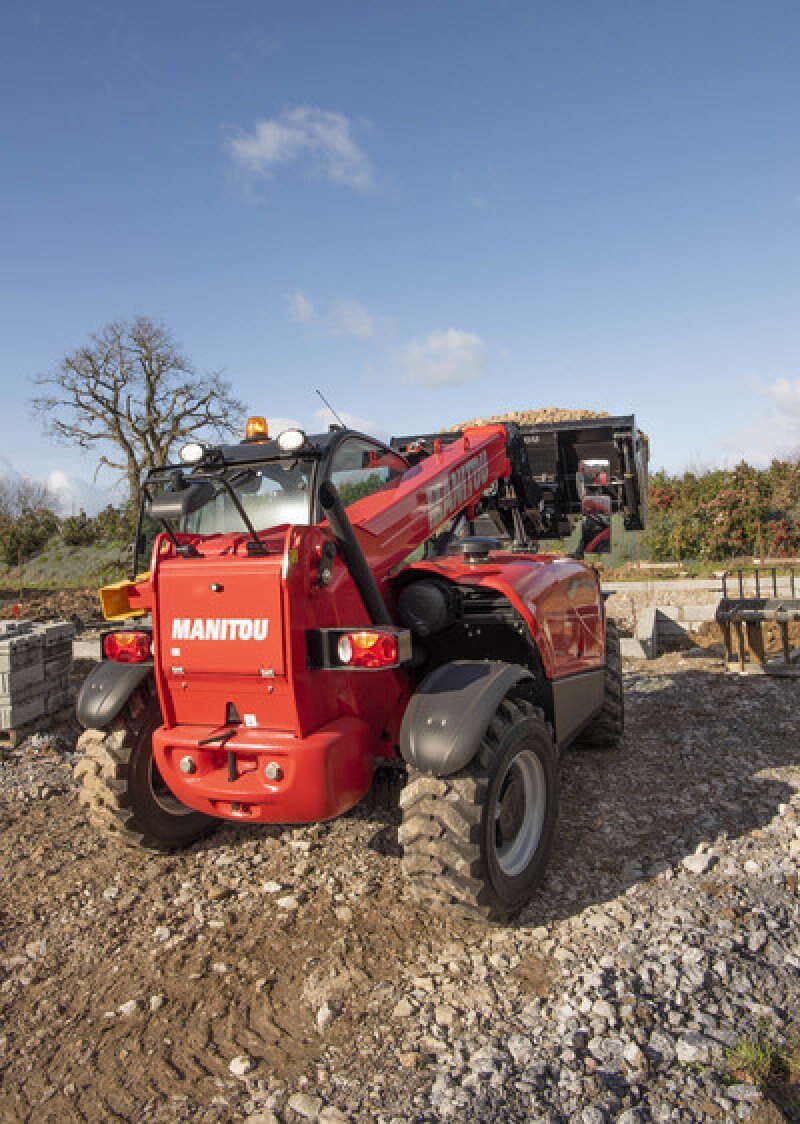

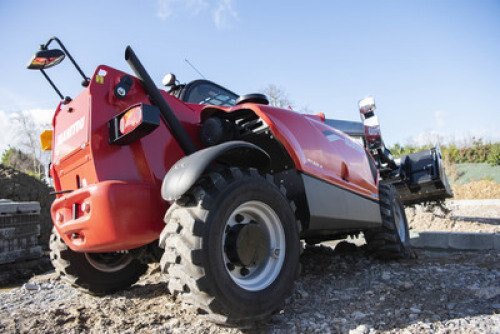

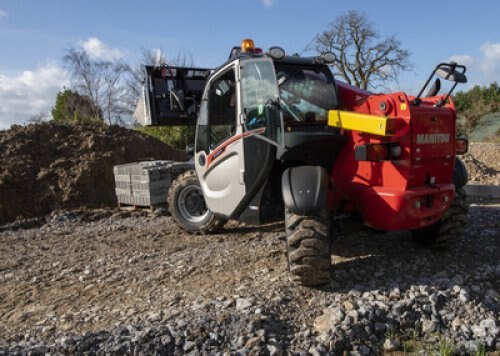

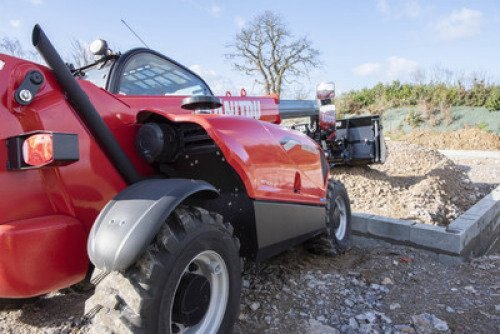

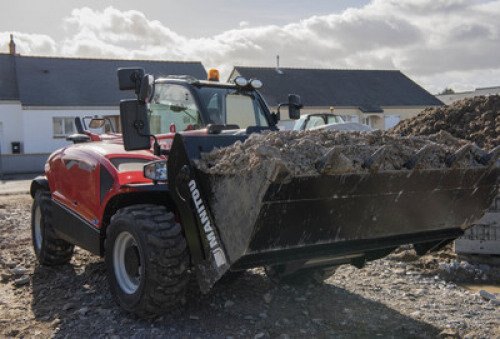

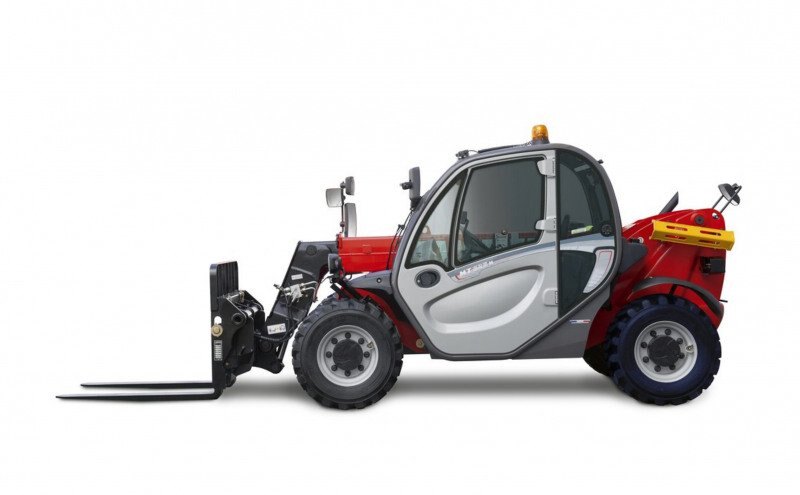

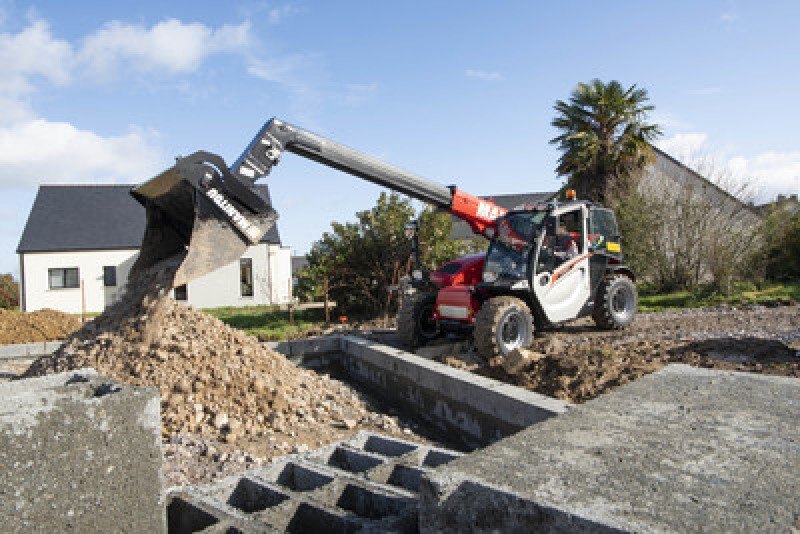

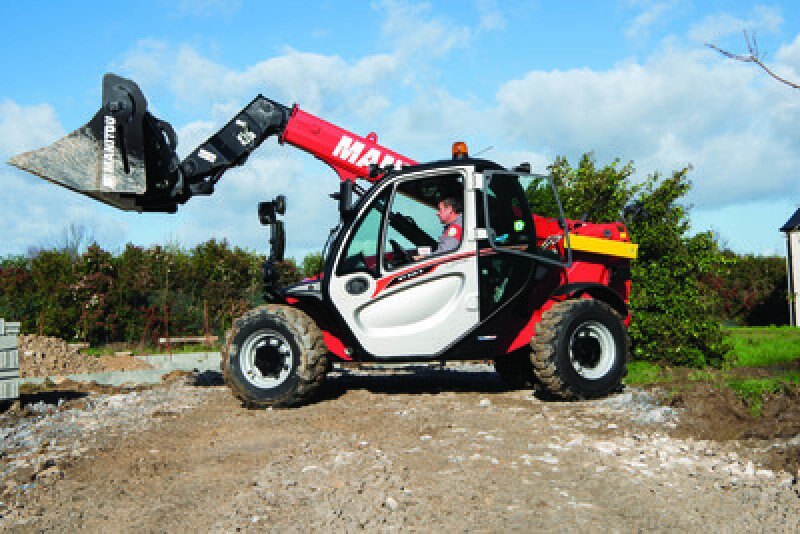

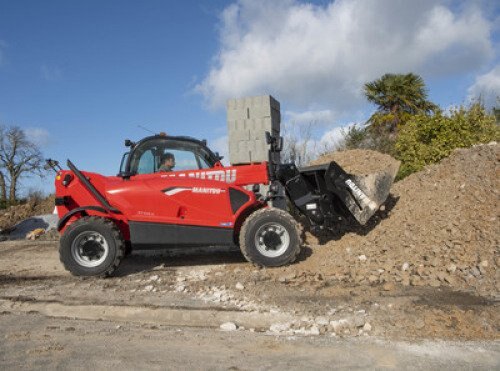

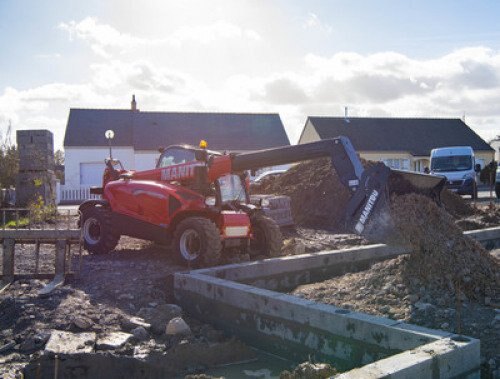

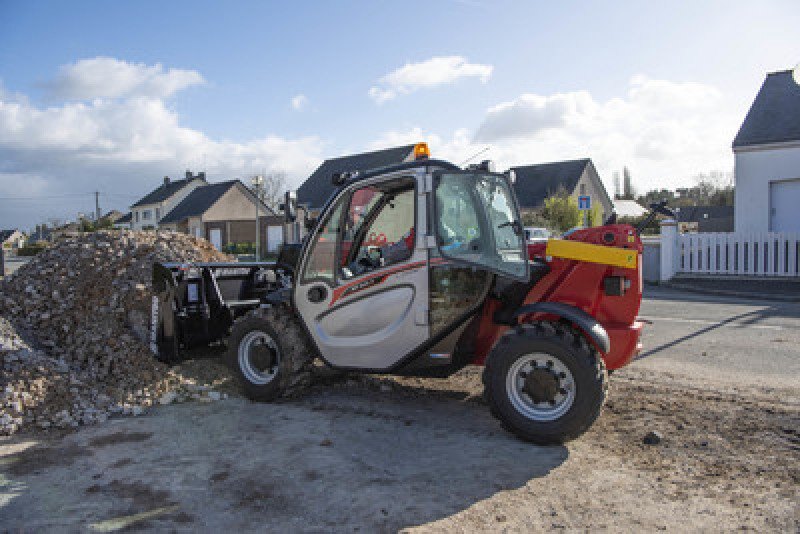

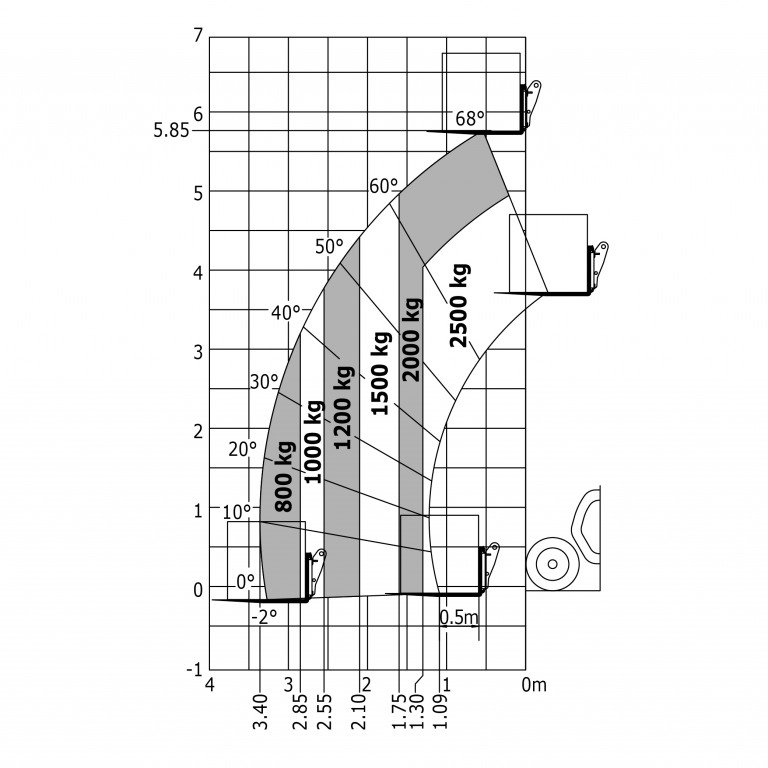

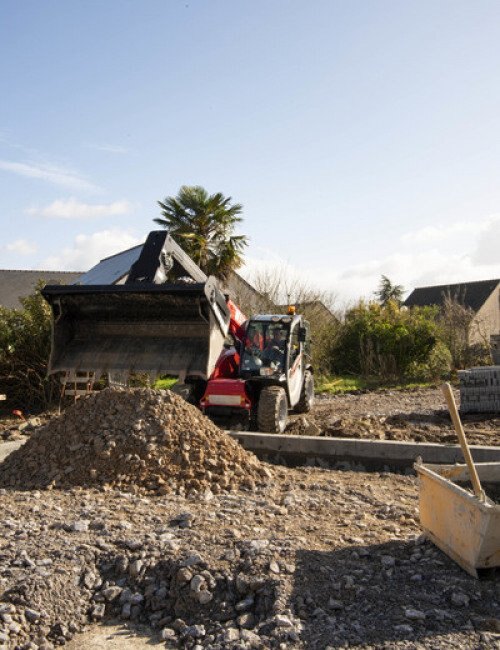

The MT 625 H telehandler is specially designed for building sites and renovation projects involving lower heights. Its compact dimensions - with a width of 1.8 m and under 2 m in height - mean you can easily pass under thresholds and navigate congested areas. Its 3.3 m turning radius and 3 steering modes available provide you with excellent maneuverability. Easy to use, this handler features an ergonomic instrument panel and JSM-equipped joystick to easily execute all machine funtions in one control. The MT 625 H has a lift capacity of 2.5 t, with a maximum lift height of 5.85 m. Its 75 hp engine reaches speeds of up to 25 km/h. Maintenance is made easy with the wide opening angle of the engine hood. The 90 l gear pump allows for simultaneous movement of the boom and telescope for increased productivity.

Specifications
Model
MT 625 H
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Manitou
Fuel Tank
63 l
Wheelbase
2.30 m
Tyres Type
Pneumatic
Engine Norm
Stage V
Engine Brand
Kubota
Hydraulic Oil
115 l
Max. Capacity
2500 kg
Overall Width
1.81 m
Overall Height
1.92 m
Ground Clearance
0.33 m
Overall Cab Width
0.79 m
Drawbar Pull (Laden)
3550 daN
Max. Torque / Engine Rotation
265 Nm @ 1400 rpm
I.C. Engine Power Rating / Power (kW)
75 Hp / 55.40 kW
Number Of Cylinders - Capacity Of Cylinders
4 - 3331 cm³
technical features
Machine on tyres with forks Metric

Manitou MT 625 H
