Manitou

ID # 17948705

Manitou MT 420 H

Videos
Call for Price
Overview

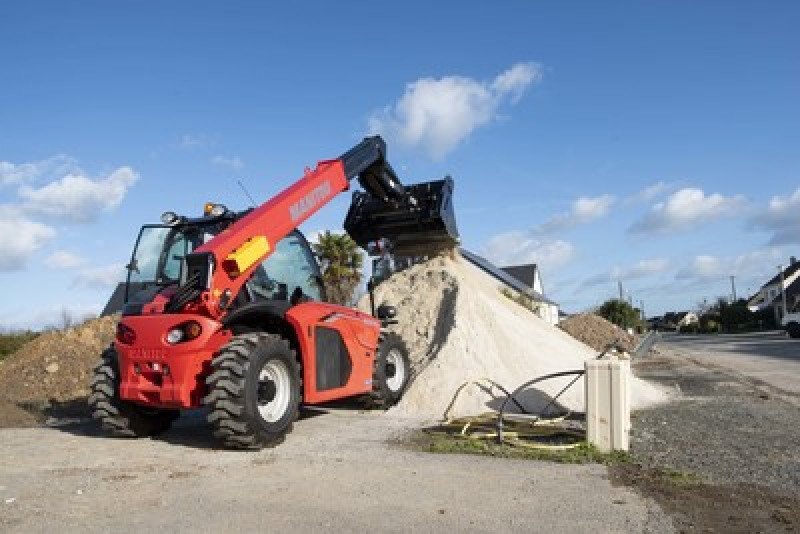

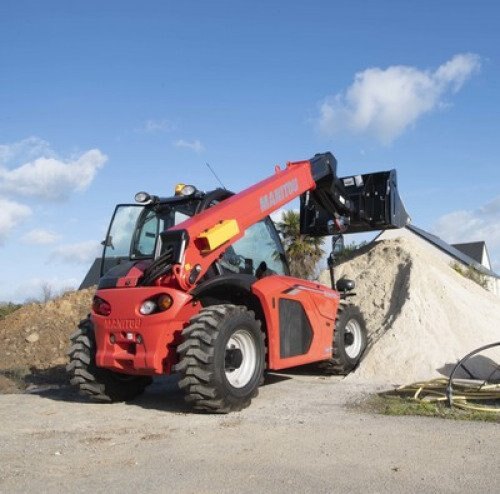

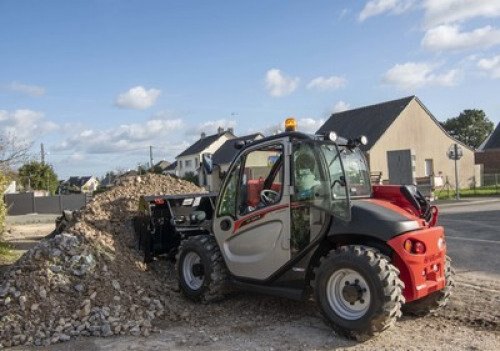

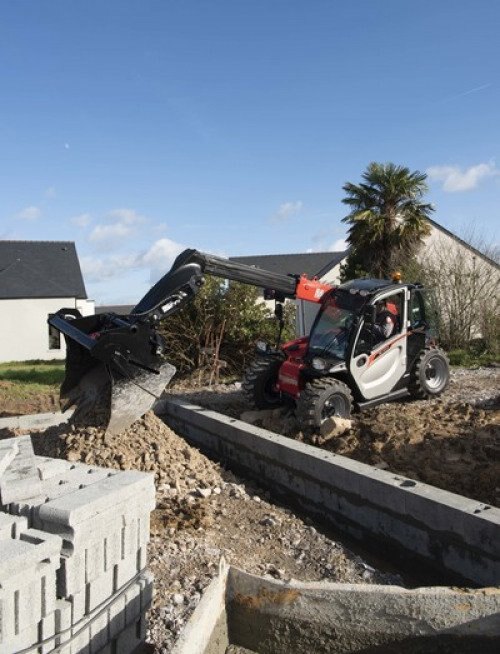

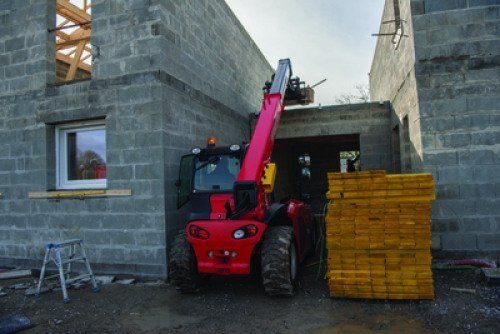

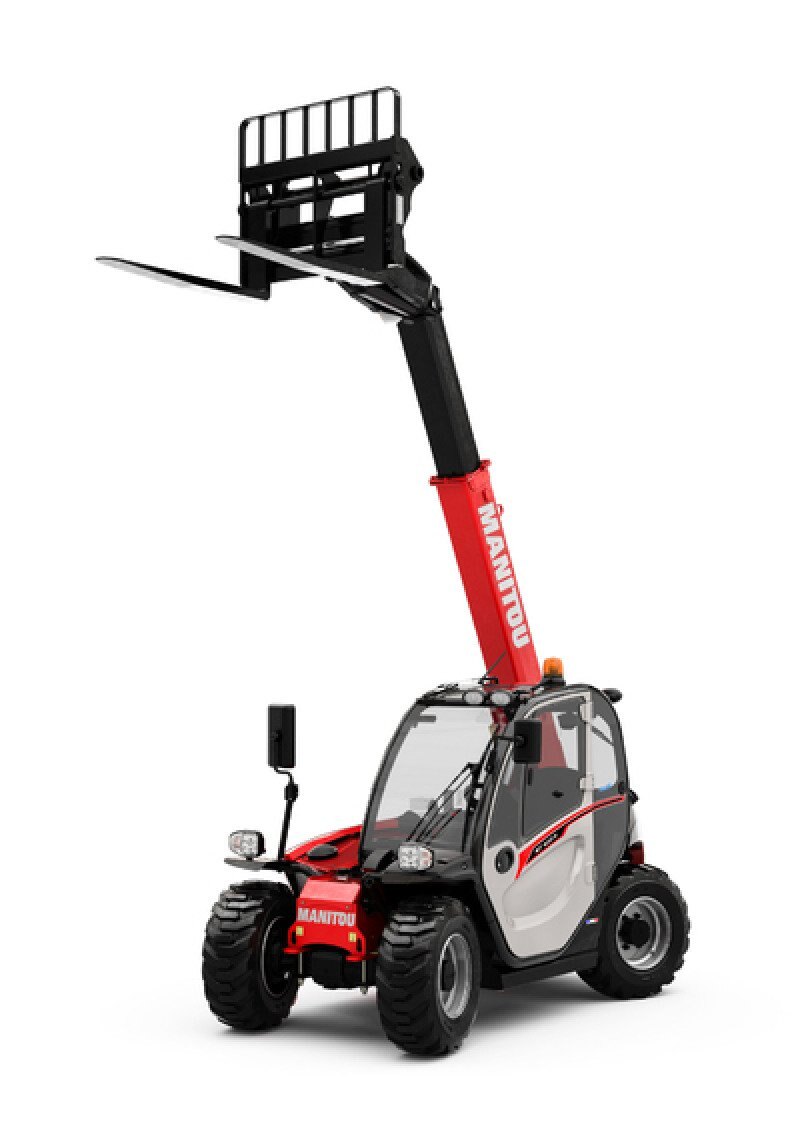

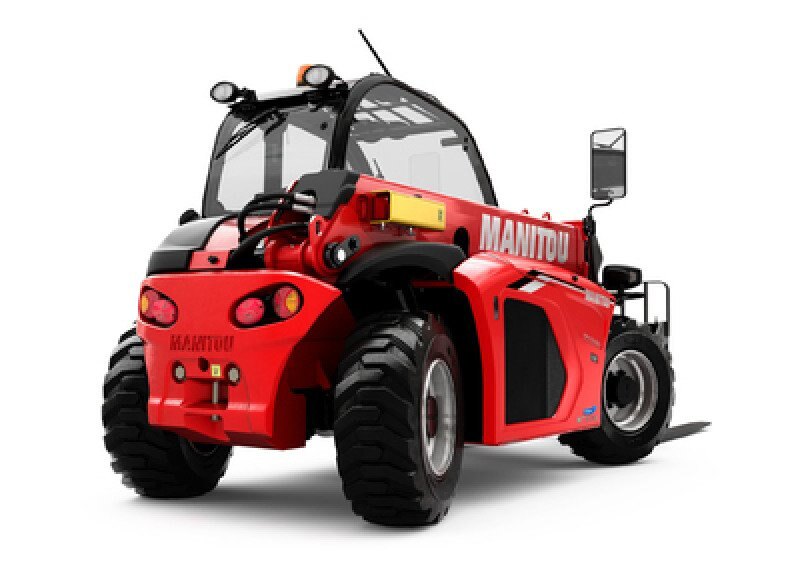

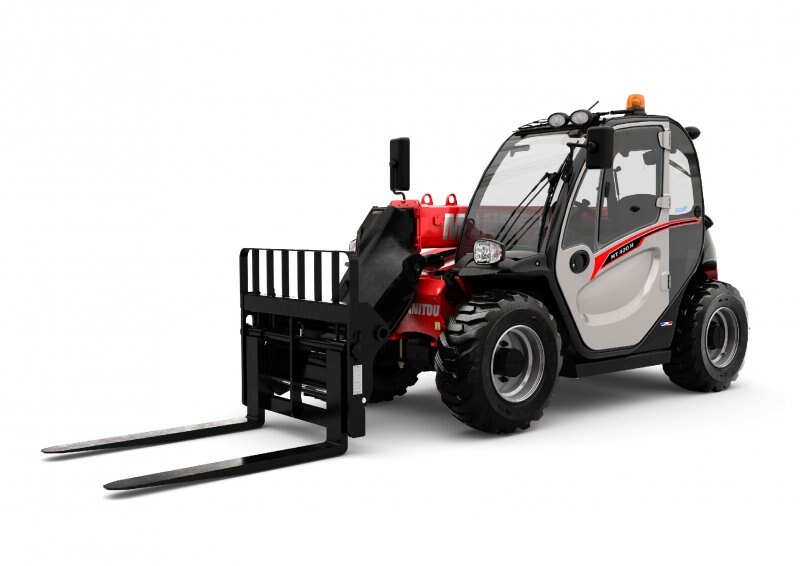

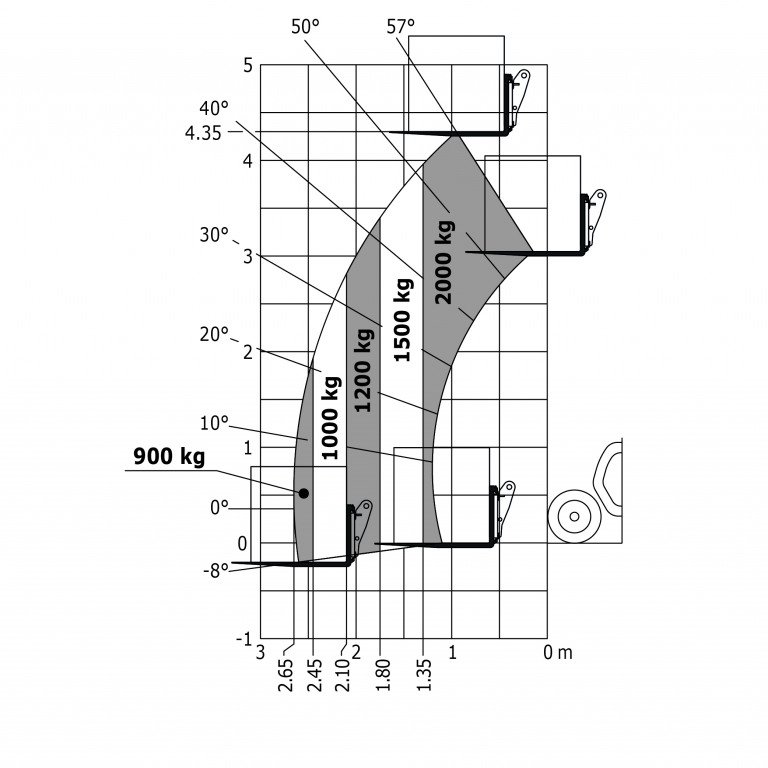

The MT 420 H super-compact telehandler is the smallest in the MT range. Ideal for construction and renovation, its exceptional compactness allows access through narrow entrances as well as confined spaces. Its turning radius and 3 steering modes (4WS/2WS/Crab) provide excellent maneuverability. The MT 420 H has a capacity of 4,400 lbs (2,000 kg) at 14 ft. 3 in. (4.3) m, giving it a high performance load chart. The 56 hp (42 kW) engine and 2-speed hydrostatic transmission has the power to reach 15.5 mph (25 km/h). Another advantage is the simultaneous movements of the lift and extend functions that further increase productivity.

Specifications
Model
MT 420 H
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Manitou
Fuel Tank
60 l
Wheelbase
2.13 m
Tyres Type
Pneumatic
Engine Norm
Stage V
Engine Brand
Kubota
Hydraulic Oil
70 l
Max. Capacity
2000 kg
Overall Width
1.49 m
Overall Height
1.97 m
Ground Clearance
0.24 m
Overall Cab Width
0.80 m
Drawbar Pull (Laden)
8391 daN
Max. Torque / Engine Rotation
174 Nm @ 1600 rpm
I.C. Engine Power Rating / Power (kW)
57 Hp / 42 kW
Number Of Cylinders - Capacity Of Cylinders
4 - 2615 cm³
technical features
Machine on tyres with forks Metric

Manitou MT 420 H
