Manitou

ID # 17948073

Manitou MT 1135 H Easy ST5

Call for Price
Overview

The MT 1135 H is designed for users working on construction sites for buildings 2 to 3 storeys tall. The Joystick Switch & Move system allows you to control the telescopic arm with just the one hand for more comfort, whilst the cabin is spacious and ergonomic, offering excellent visibility and easily accessible via a large door for even more comfort for your teams.For maximum on-site performance, the MT 1135 H comes equipped with a hydrostatic transmission for power and flexibility when getting around, and with its frame levelling system and 4-wheel drive it can easily adapt to any type of terrain you need to traverse.

Specifications
Model
MT 1135 H Easy ST5
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Manitou
Fuel Tank
120 l
Wheelbase
2.88 m
Tyres Type
Pneumatic
Engine Norm
Stage 5 / Tier IV Final
Engine Brand
Deutz
Hydraulic Oil
140 l
Max. Capacity
3500 kg
Overall Width
2.28 m
Overall Height
2.42 m
Ground Clearance
0.42 m
Overall Cab Width
0.88 m
Drawbar Pull (Laden)
8000 daN
Max. Torque / Engine Rotation
330 Nm @ 1600 rpm
I.C. Engine Power Rating / Power (kW)
75 Hp / 55.40 kW
Number Of Cylinders - Capacity Of Cylinders
4 - 3621 cm³
technical features

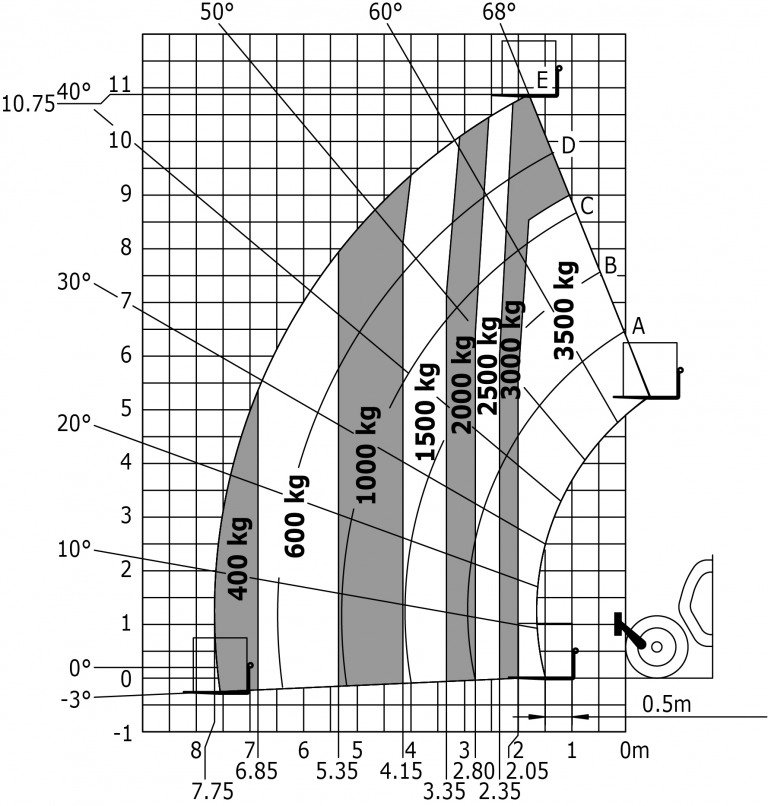

Machine on tyres with forks Metric

Manitou MT 1135 H Easy ST5

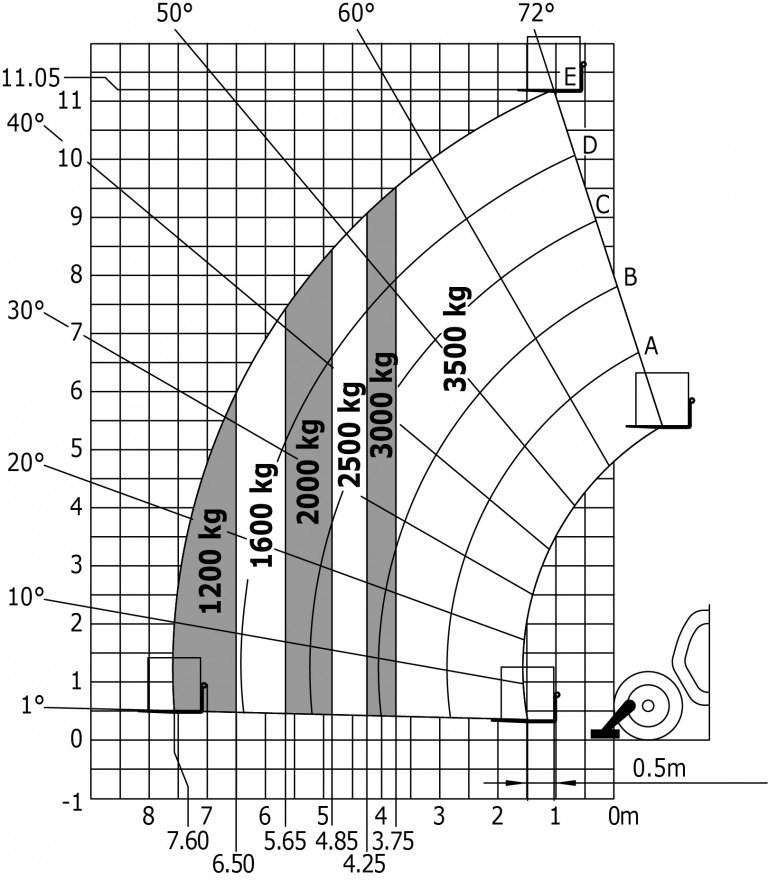

 Machine on stabilizers with forks

Manitou MT 1135 H Easy ST5

 Machine on tyres with forks - with levelling Metric

Manitou MT 1135 H Easy ST5
