Manitou

ID # 17948072

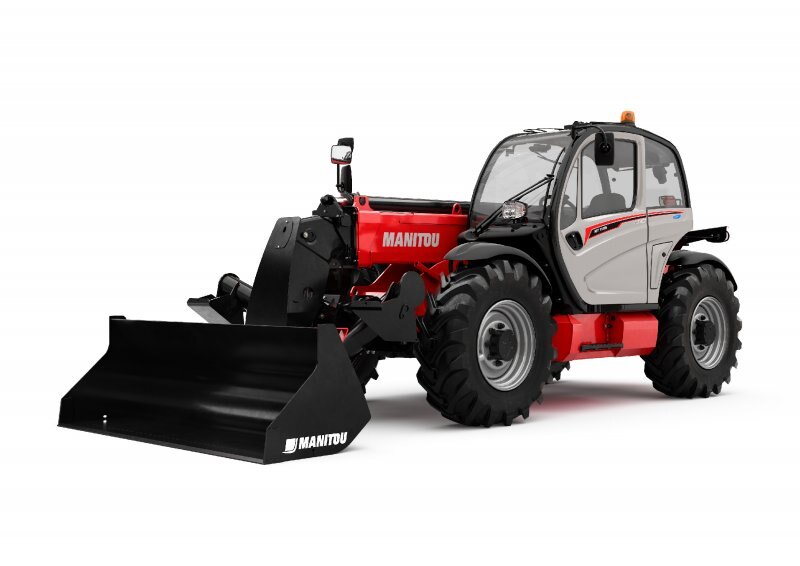

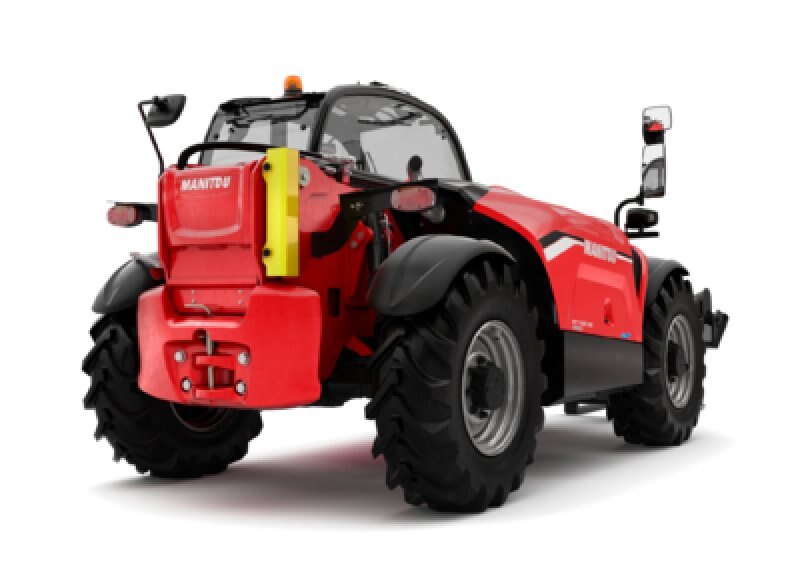

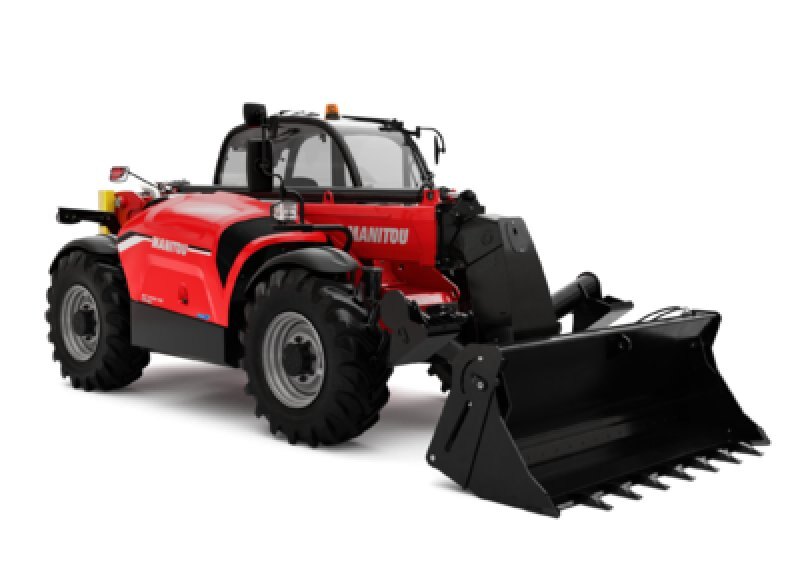

Manitou MT 1135 HA Easy ST5

Call for Price
Overview

Designed to meet all of the needs of operators working in buildings up to three stories tall, the MT 1135 HA is the perfect combination of performance and safety. This telehandler comes equipped with a lift height of 11 m, and a lift capacity of 3.5 t. Extremely versatile, it can be used for any number of on-site applications. Additionally, the MT 1135 HA is designed for a work platform to be attached at the head of the boom. Compact outriggers and a frame leveling system ensure stability for the safety of the whole team. To make getting around a breeze, even the most challenging sites, the MT 1135 HA has an incredibly tight turning radius as well as a generous ground clearance.

Specifications
Model
MT 1135 HA Easy ST5
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Manitou
Fuel Tank
120 l
Wheelbase
2.88 m
Engine Norm
Stage 5 / Tier IV Final
Engine Brand
Deutz
Hydraulic Oil
140 l
Max. Capacity
3500 kg
Overall Width
2.28 m
Overall Height
2.42 m
Ground Clearance
0.41 m
Overall Cab Width
0.88 m
Number Of Batteries
2
Drawbar Pull (Laden)
8000 daN
Max. Torque / Engine Rotation
330 Nm @ 1600 rpm
I.C. Engine Power Rating / Power (kW)
75 Hp / 55.40 kW
Number Of Cylinders - Capacity Of Cylinders
4 - 3621 cm³
technical features
Machine on stabilizers with bucket basket and levelling device Metric

Manitou MT 1135 HA Easy ST5

 Machine on stabilizers with forks - with levelling device Metric

Manitou MT 1135 HA Easy ST5

 Machine on tyres with forks - with levelling Metric

Manitou MT 1135 HA Easy ST5
